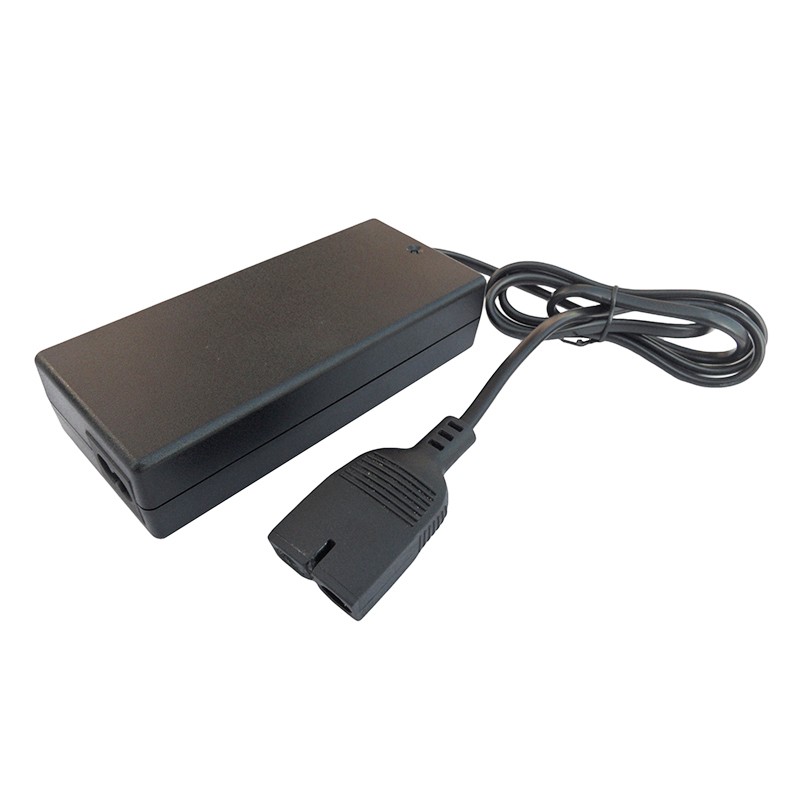

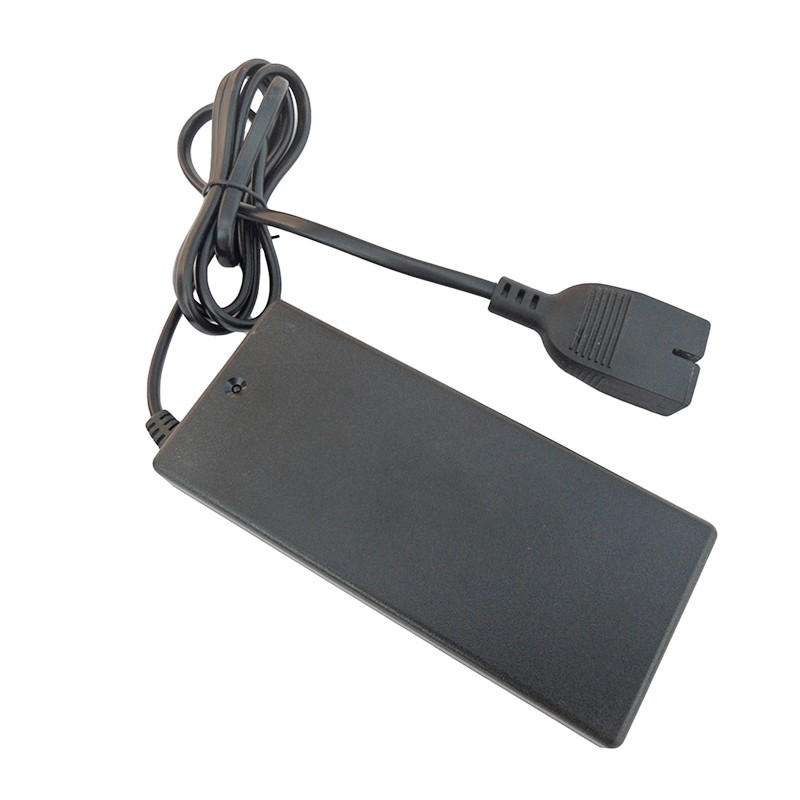

29V 2A power supply

Model :IN2902000

Output :29V 2A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The IN2902000 29V 2A power supply is built with the latest power supply technologies and the quality components materials to enable high performance. The power supply ac dc 29V 2A features Opto-Coupled Feedback Enables up to 1% Regulation, Fault Protections to maximize the reliability,Resonant-Ring Valley-Switching Operation for High operating efficiency, Green-mode Power-Saving Operation. The 29V DC switching power supply offers excellent EMI performance, and efficient natural cooling thermal management enhances operating performance and reliability.
Intai also offer 29V 2A AC/DC power supply for Li-ion and Lead acid battery charging. See more for details.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	29V±5%
	Rated Current	2A
	Ripple & Noise	300mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

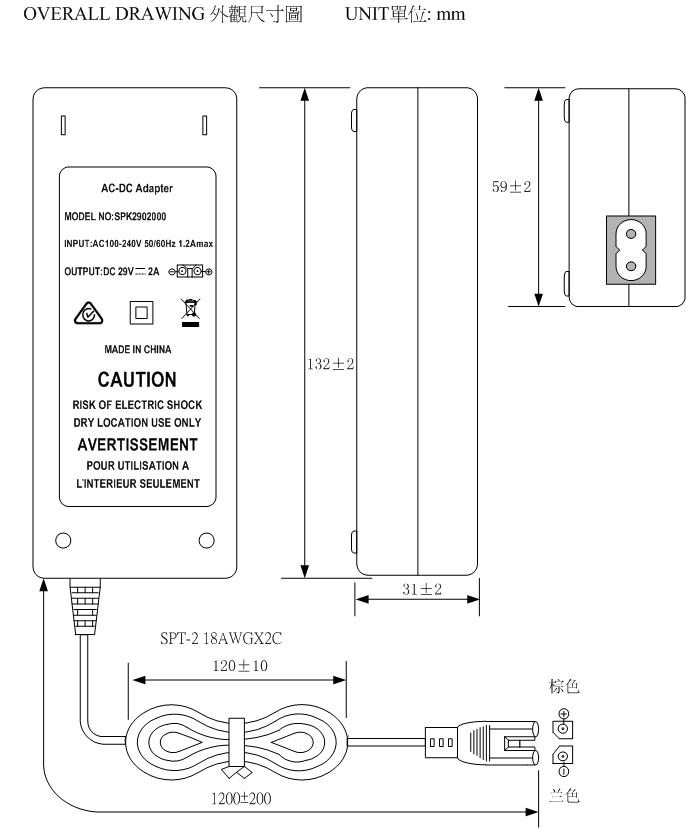

Product Dimension

29v 2a

Safety Certificates

AC/DC power supply

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

DC switching power supply

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

29v 2a
