3 Cell lithium ion battery charger
Model :IN1265000
Output :12.6V 5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai's automatic 12.6V 5A lipo battery charger is the industry's most powerful and safe charger for 3 cell lithium polymer battery or 3 cell lithium ion battery. Combining the latest technology and a host of user-friendly, the 3S lithium charger is designed to fully charge lithium ion and lithium polymer pack quickly. Our 3 cell lithium ion battery charger and lipo charger should have these basic features:
• Fully automatic muti level charge cycle for effective charging
• Reaches 12.6 volts peak, then automatically switches to float
• Designed to prevent overcharging
• Charging statues LED indicator
• Reverse polarity protection
• Backfeed protection(BFP)
• Spark-free operation
• Durable construction for longer life
• EN/AS/NZS60335-2-29 and UL 1310 approval
• Factory direct price
• 3 year limited warranty
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 7-12.6V |
Open Circuit Voltage | 12.6V±5% | |
Charge Current | 5A±5% | |
Battery Type | 3 cell lithium polymer battery, 3 cell lithium ion battery | |
Battery capacity recommended | 20AH~40AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 3 cell lithium ion battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the lipo 3S charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

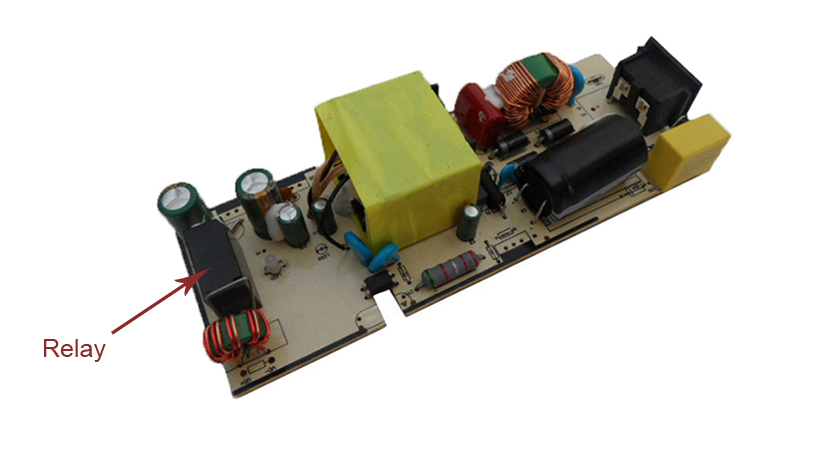

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

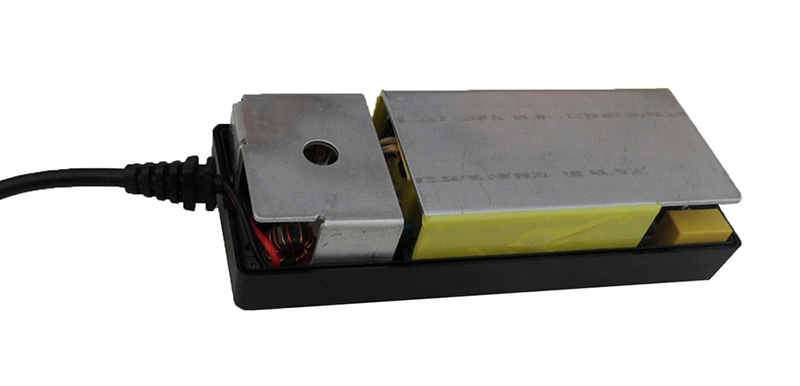

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The lipo 3S charger works safely and silently. With the application of soft start technology, the output is spark free.

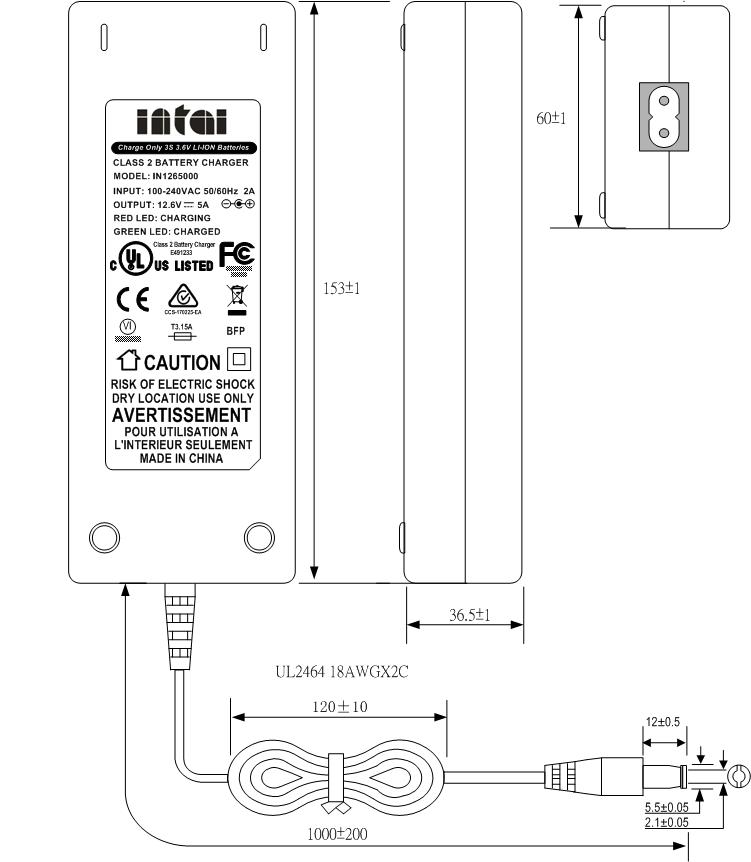

Mechanical Details(mm)
Safety Certificates
