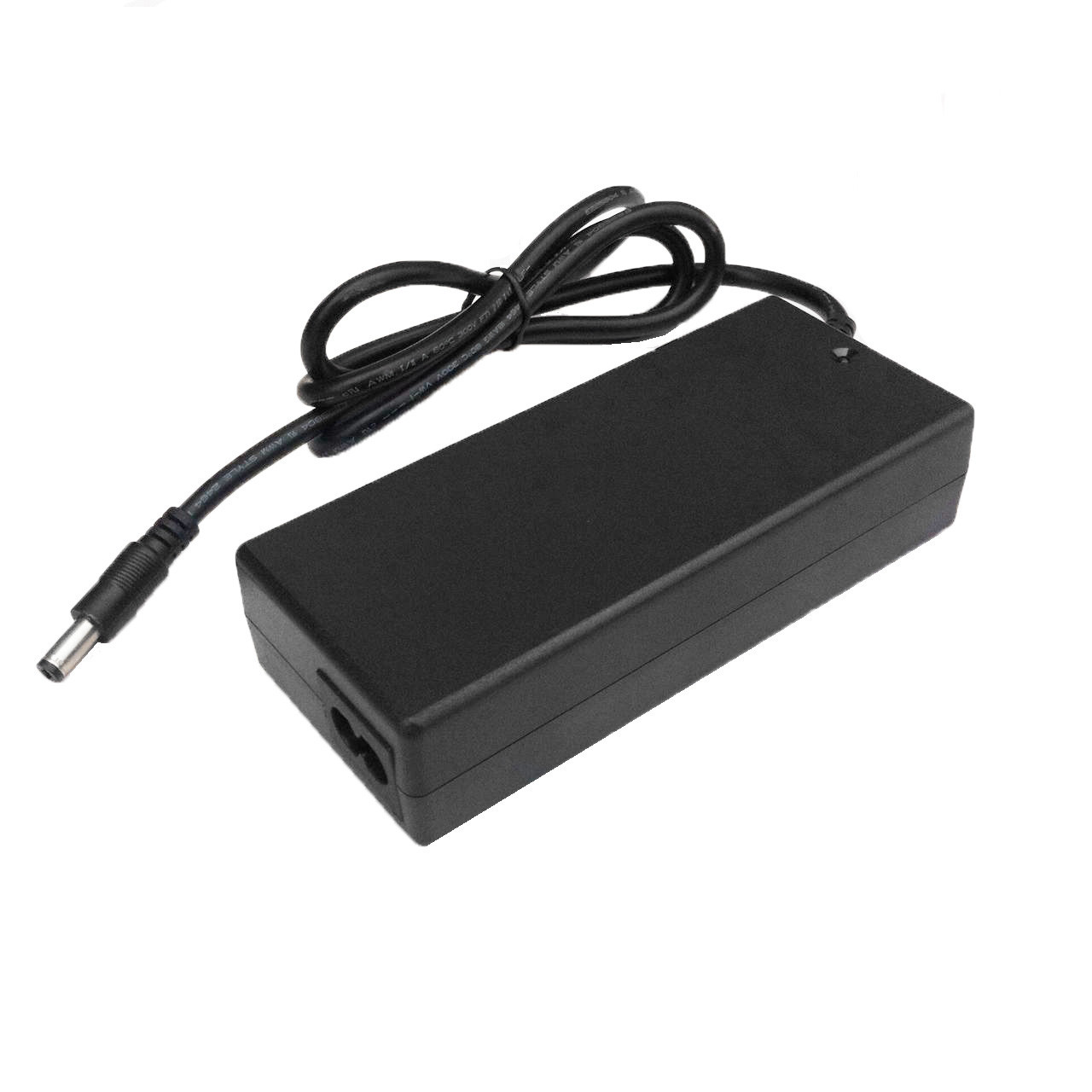

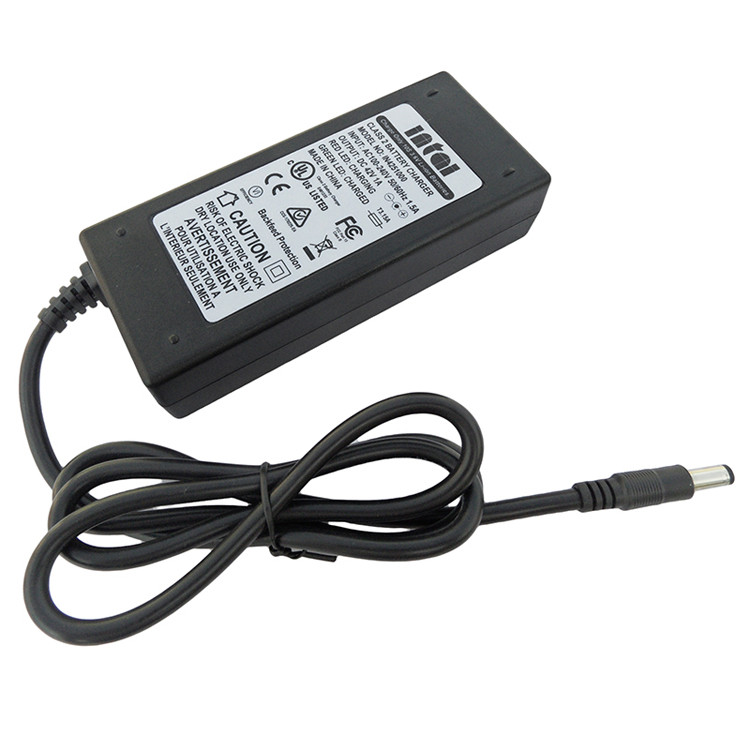

36 Volt battery charger
Model :IN4201000
Output :42V 1A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This 36 volt battery charger is ideal to charge 10S cell 36V lithium ion/lipo battery pack of 4-8AH at 1A charge current density. The 36 volt lithium ion battery charger communicates with the cells to monitor cell voltage and charge status to optimize the performance and extend the life of the pack. Automatic shut off protects the battery pack from being overcharged. The 36V 1A Lithium battery charger meets international standards of safety requirements and enables the safest charging operation. The battery charger for 36 volt lithium battery is designed to ensure a MTBF better than 40000 hours at full load and backed by a 3 year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 1A±5% | |
Battery Type | 10S cell 36 volt Lithium-ion battery, Lipo battery | |
Battery capacity recommended | 4AH~8AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 36V lithium battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the battery charger for 36 volt lithium battery
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The 36V lipo charger works quietly and safely. With the application of soft start technology, the output is spark free.
Mechanical Details(mm)
Safety Certificates
