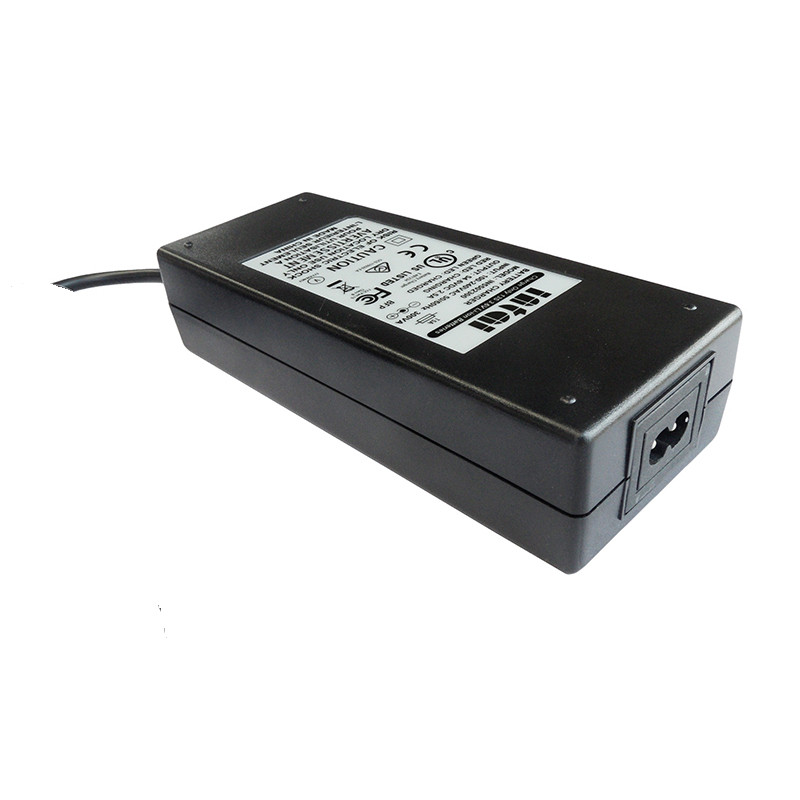

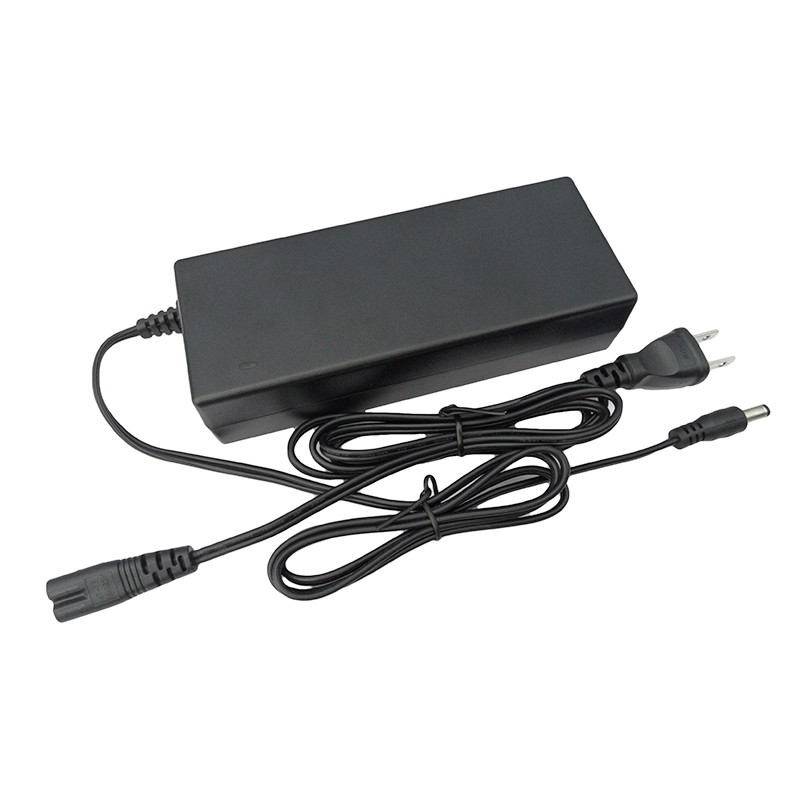

36V 3A battery charger
Model :IN4203000
Output :42V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This 36V 3A battery charger is designed for bicycle 10S 36V lithium bicycle battery pack of size 14AH or larger. The 36V charger has an integrated microprocessor to avoid overcharging the batteries, maximizes battery capacity and extends battery life. Never have to worry the charger catches fire when used. Laboratory test data show that all internal and external temperature parameters of the charger at full load are within safety standards. When the battery get full, the 36V 3A charger cuts off the output to prevent the charger from being "charged" by the batteries when the main supply is off or any fault occurs. Typical applications include electric scooter, electric bike.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 3A±5% | |
Battery Type | 10S 36v 14ah lithium bicycle battery | |
Battery capacity recommended | 12AH~24AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 42V 3A charger is designed to maximize the life of the 36V lithium bicycle battery. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 36V 3A Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

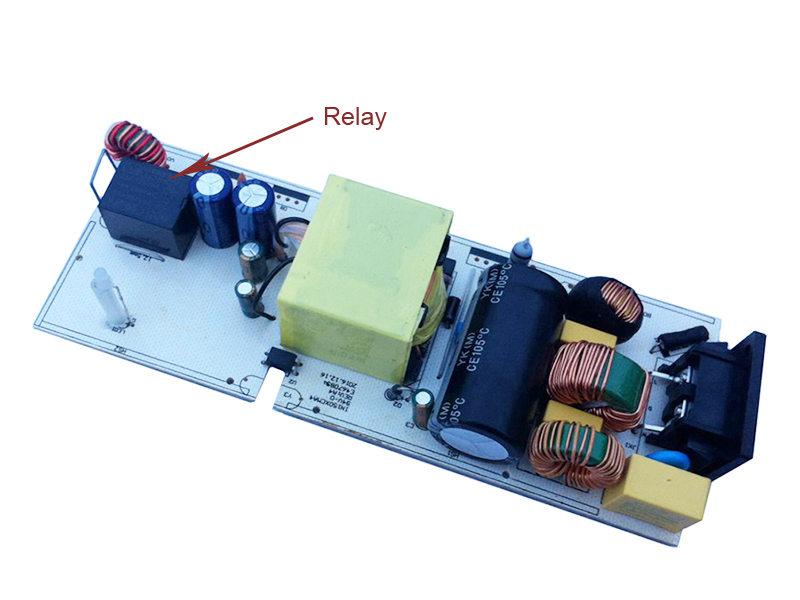

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

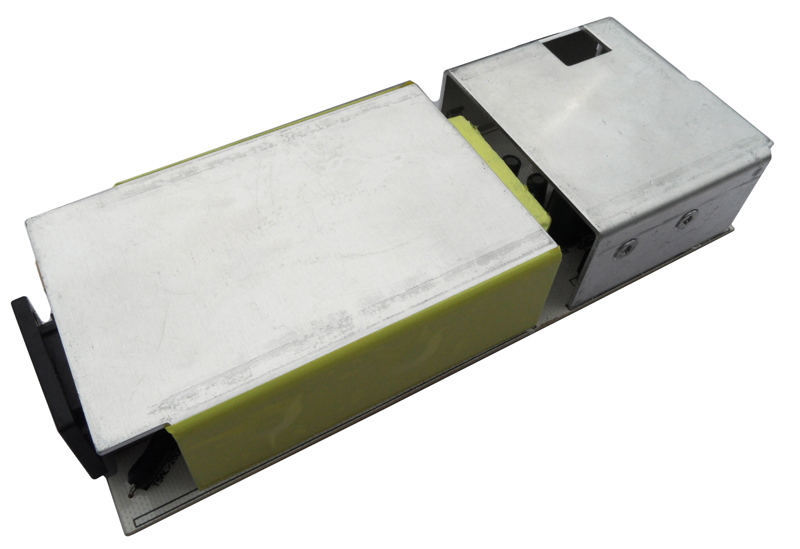

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 42V 3A battery charger works safely and quietly. With the application of soft start technology, the output is spark free.

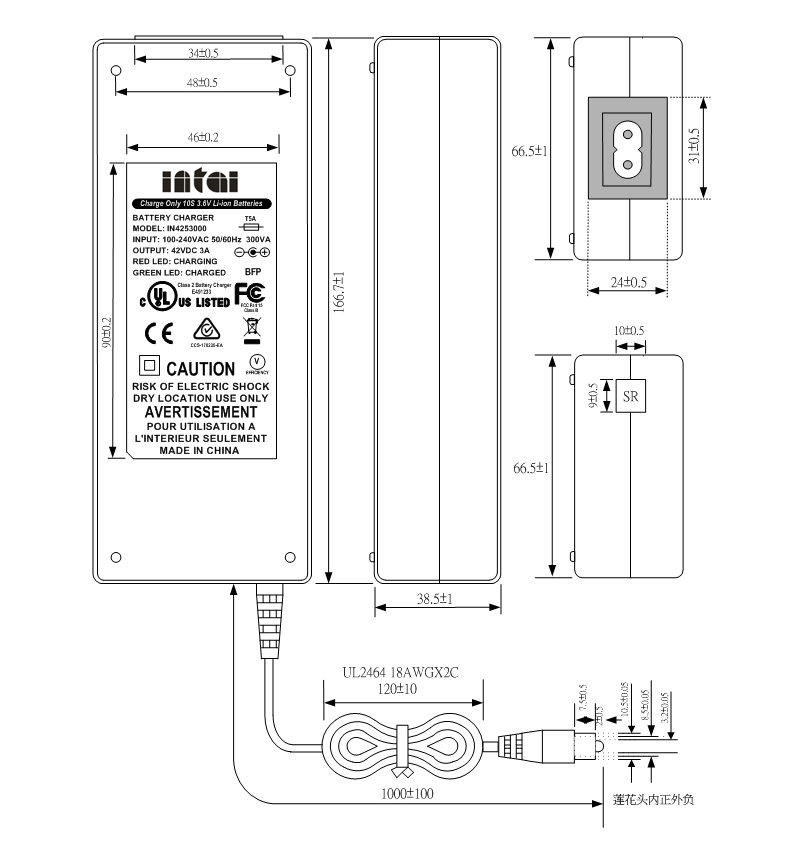

Product Dimension(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
