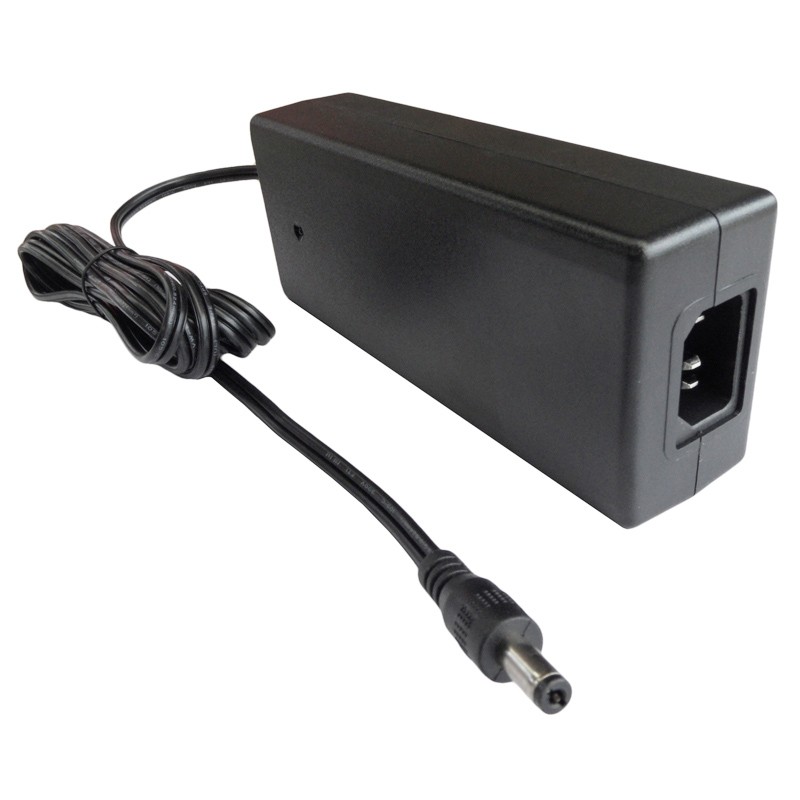

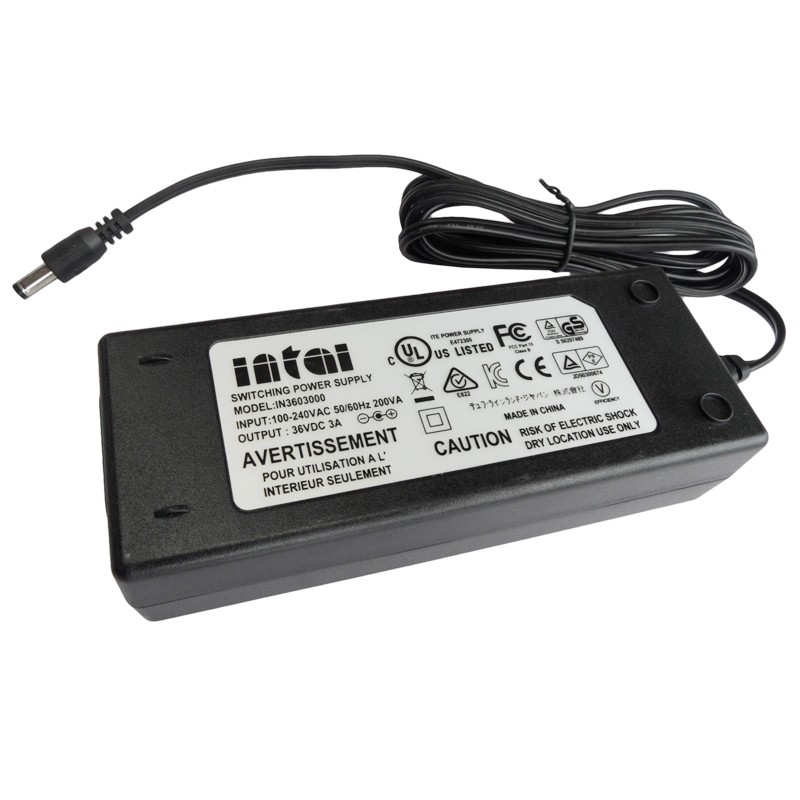

36V AC adapter
Model :IN3603000
Output :36V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This DC power supply 36V 3A is built with the latest power supply technologies and the quality components materials to enable high performance. High-frequency AC-to-DC flyback converter with green-mode power-saving operation enables high power density and lowest no-load power consumption, to comply with latest efficiency standards including DoE Level VI. The 36V AC adapter features full protection to maximize the reliability include OLP(Over Load Protection), OVP(Over Voltage Protection), output short-circuit protection. The DC power supply 24V incorporates a pair of U shaped internal heat sinks to achieve efficient natural convection cooling that enables higher operating temperatures and reliability (see our UL/TUV certification).
42 volt ac adapter for battery charging is also available for use with 36V Lithium or Lead acid batteries. Product availability for the battery chargers can be found via the link here http://www.adapter-intai.com/product/lithium-ion-battery-recharger .
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.9 | |
Output | Output Voltage | 36V±5% |
Rated Current | 3A | |
Ripple & Noise | 400mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

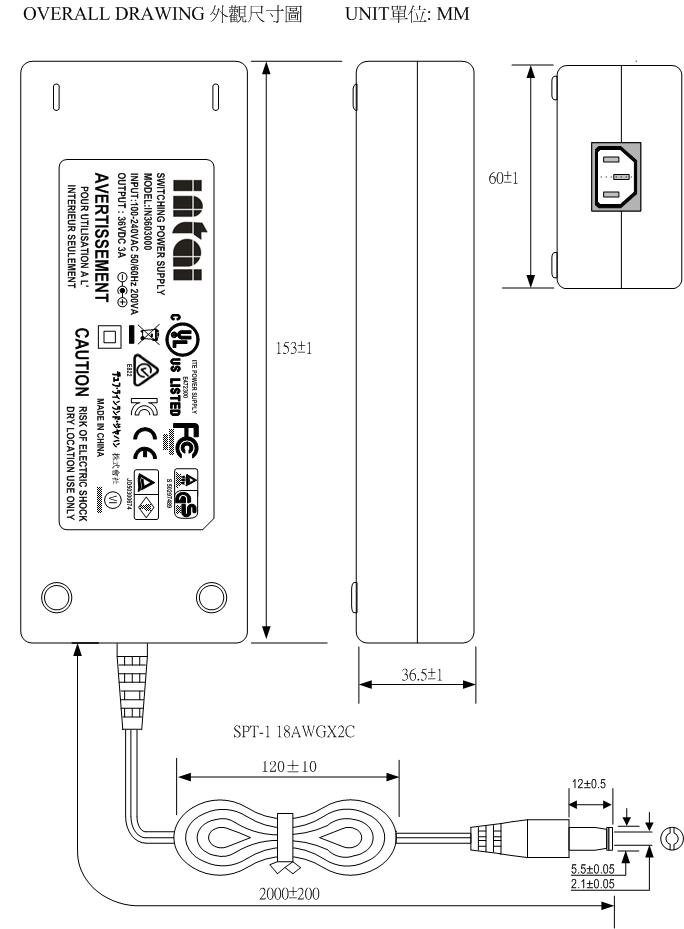

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
