36V DC power supply

Model :IN3602000

Output :36V 2A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This IN3602000 36V DC power supply is built with an isolated-flyback power-supply controller that provides Constant-Voltage (CV) using an optical coupler to improve transient response to large-load steps. The 220V AC 36V DC switching power supply processes information from opto-coupled feedback and an auxiliary flyback winding for high-performance control of output voltage and current. The output voltage is regulated accurately by a high-performance voltage-mode amplifier with an accurate voltage reference, The 36 volt DC power supply employs power-saving technologies limit the no-load power consumption to lowest level, resulting in excellent efficiency performance. The precise output over voltage and over load protection greatly enhances the system reliability. Effective thermal management reduces thermal stress on power supply reliability, allows the power supply to operate at full power at higher ambient temperatures (see our UL/TUV documents).
Higher power models are available including 36V 5A power supply and 36V 10A power supply.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	36V±5%
	Rated Current	2A
	Ripple & Noise	400mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

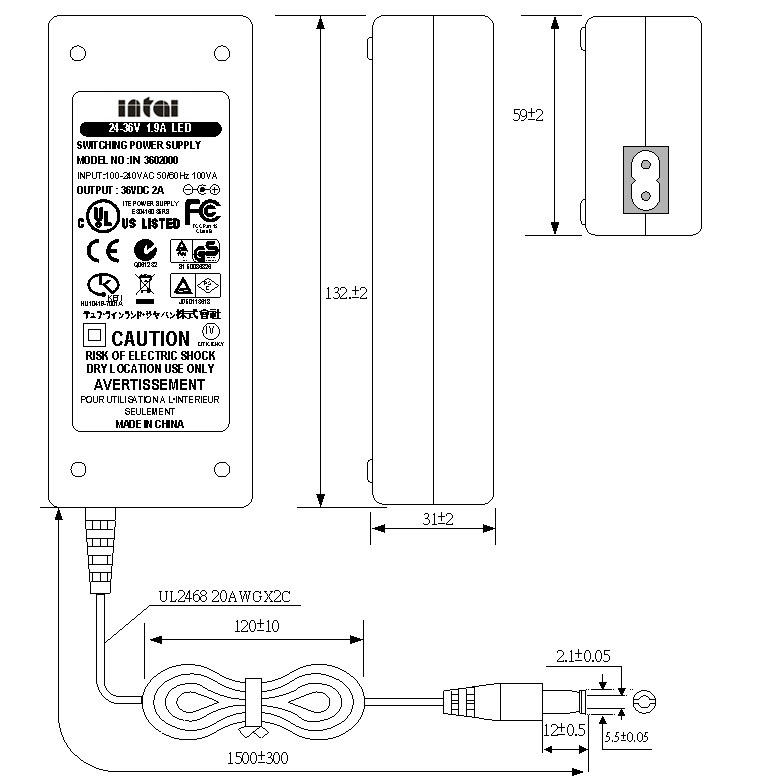

Mechanical details of the 36V DC power supply (mm)

Safety Certificates

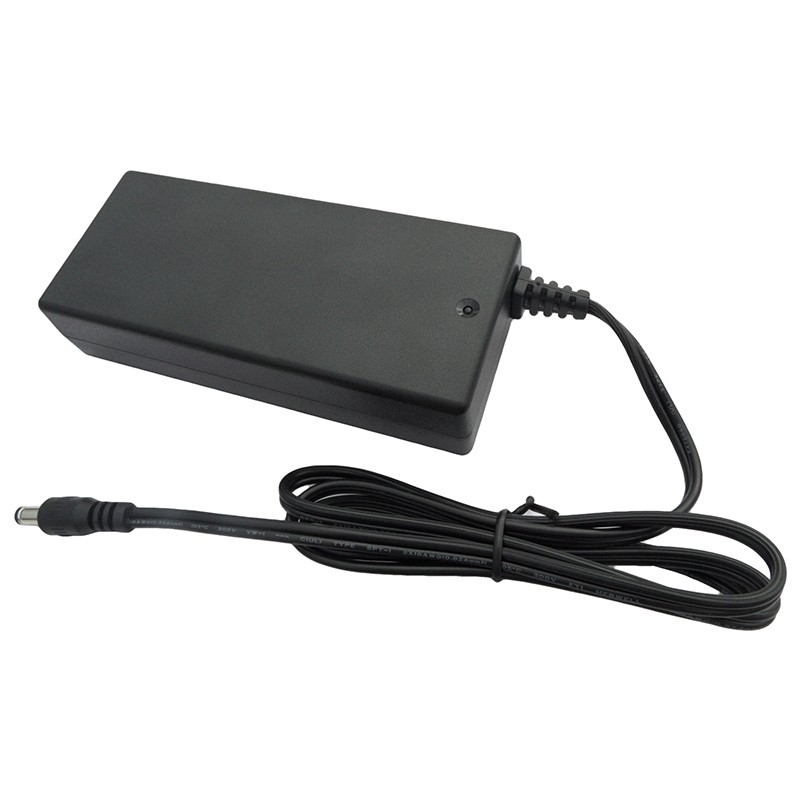

36 volt DC power supply
