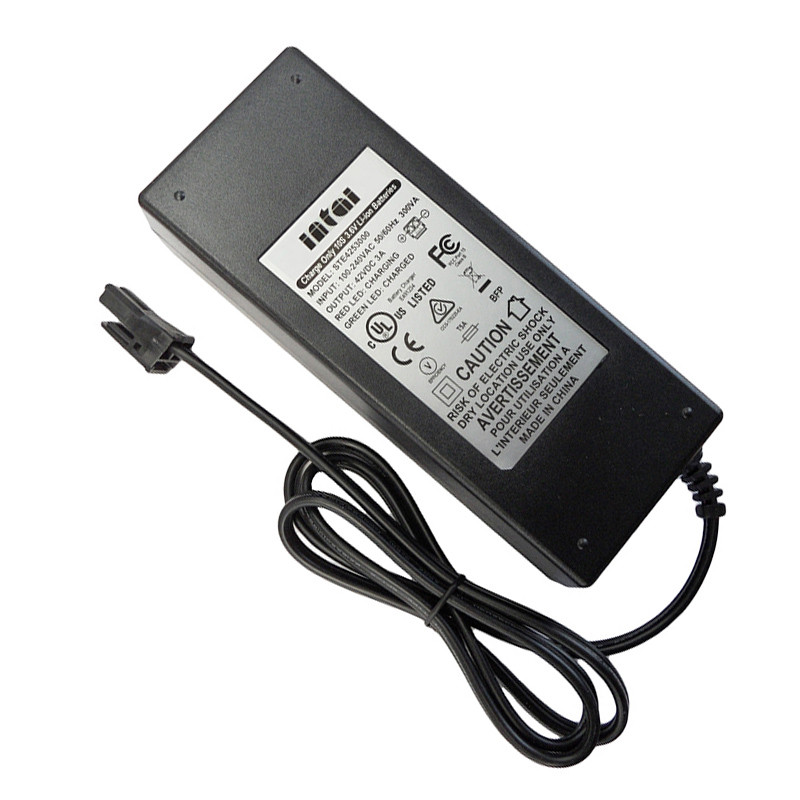

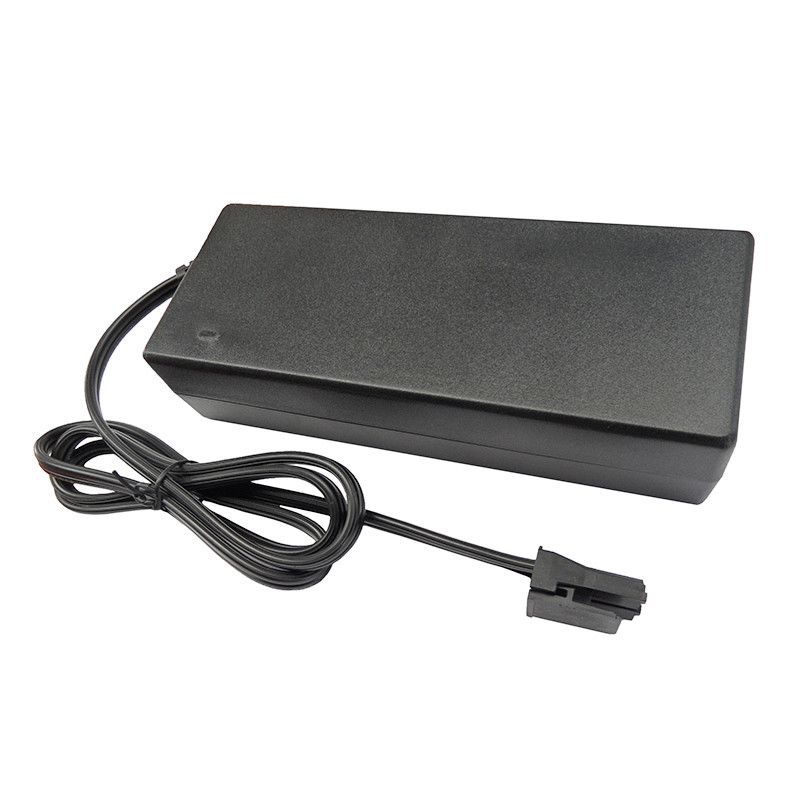

36V Lawn mower battery charger

Model :IN4203000

Output :42V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

Comes up with Molex SD-4441-*002 connector, Intai 42V 3A battery charger is designed for quality 36V lithium ion battery powered lawn mower. The 36v lithium ion battery charger incorporates high quality hardware components and modern charge algorithms to enable high power density and high levels of battery performance. With UL1012 and IEC60335-2-29 battery charger approval, the 36v lawn mower battery charger is safe to operate.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.5W
	Average Efficiency	>85%
	Power Factor (Typ)	>0.6
	Inrush Current	limited to 30A within 10ms at 264VAC ( Cold Start )
Output	Boost Charge Voltage	25-42V
	Open Circuit Voltage	42V±5%
	Charge Current	3A±5%
	Battery Type	10S 36v lithium ion battery, 36v lawn mower battery
	Battery capacity recommended	10AH~20AH
	Line Regulation	±2%
	Load Regulation	±5%
Protection	Back feed Protection(BFP)	Protected by internal circuit
	Reverse Polarity Protection	Protected by internal circuit
	Input Protection	5A current fuse
	Short Circuit Protection	Protected by internal circuit
Safety Certifications	UL/cUL1012 battery charger other than Class 2	Certificate Number: E491233
	TUV/CE/LVD EN60335-1/2-29	Certificate Number: 50079152 001
	SAA+RCM/AS NZS60335-1/2-29	Certificate Number: CCS-170225-EA
EMC	Emissions	EN55014, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-10℃~40℃
	Storage Temp	-20℃~80℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.5kgs

The 36V lithium ion battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.


Charge Status Indicator of the 36V lawn mower battery charger

Red

● Charging or disconnect form the batteries

Green

● Batteries fully charged

Red flash

● Reverse connection with the battery

● Faulty battery

● Short circuit

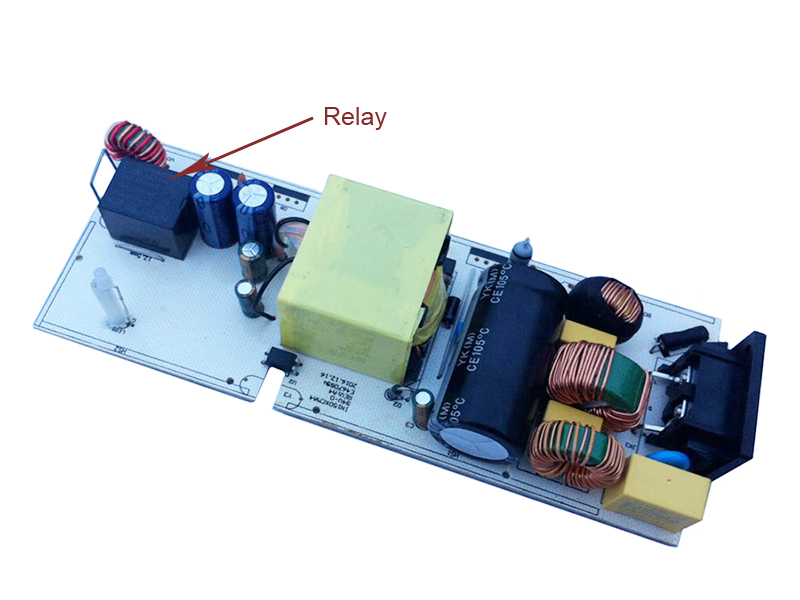

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

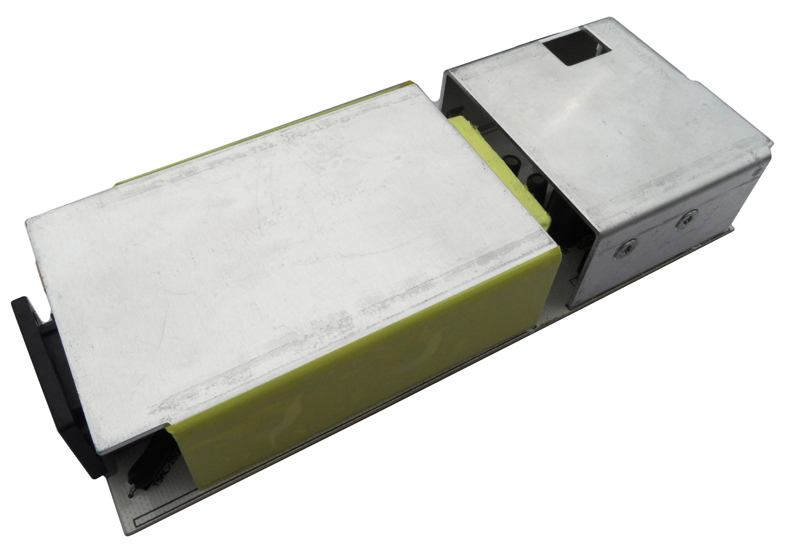

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.


The 48V 3A scooter battery charger works quietly and safely. With the application of soft start technology, the output is spark free.

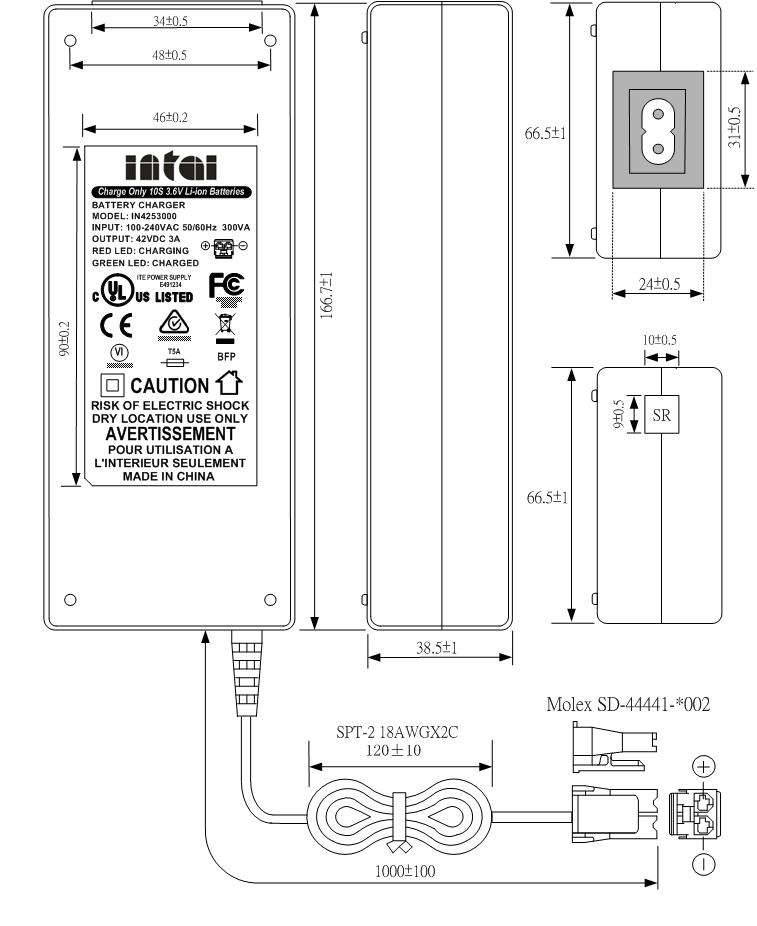

Mechanical Details.(mm)

Safety Certificates


A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
