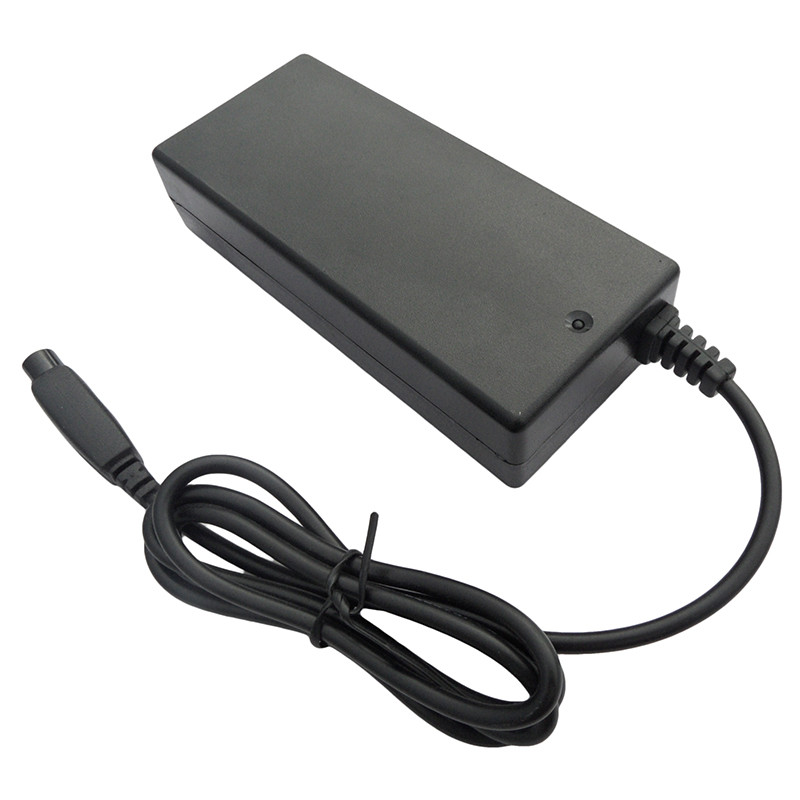

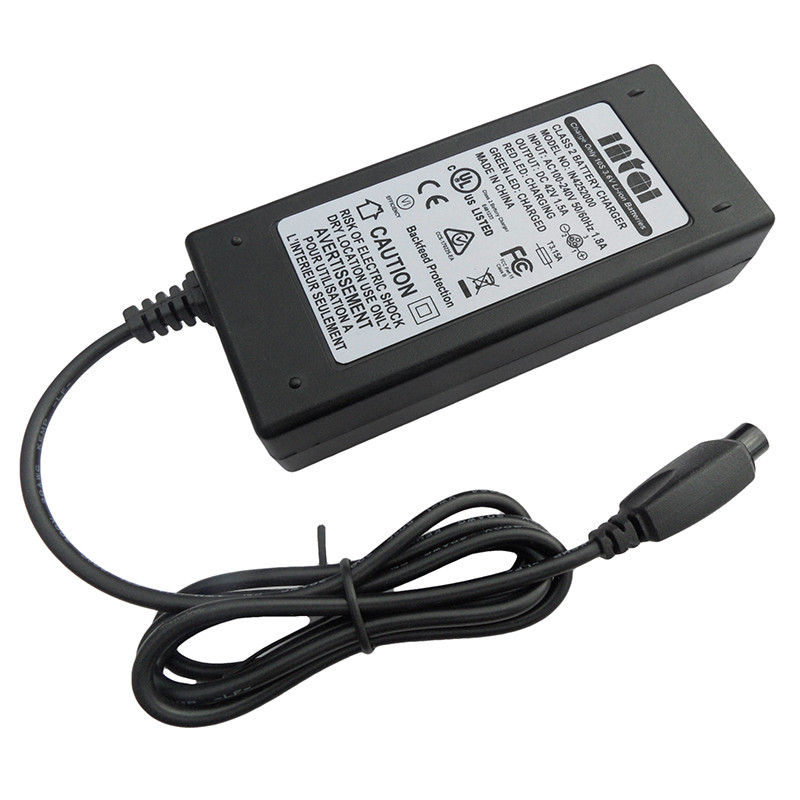

36V li ion battery charger
Model :IN4201500
Output :42V 1.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
36V li ion battery charger replacement for Electric Scooter E-bike, Brand new and high quality, excellent charging algorithm for optimizing battery performance, availability and safety. The high power li-ion battery charger for e bike is certified to UL, CSA, CE, RCM, PSE for Class 2 li-ion charger. The 36V battery charger is durable to use and backed by a 3 year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 12-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 1.5A±5% | |
Battery Type | 10S cell 36V Li-ion battery | |
Battery capacity recommended | 6AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 36V battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the Li-ion Battery Charger for E bike
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The high power li-ion battery charger works silently. With the application of soft start technology, the output is spark free.

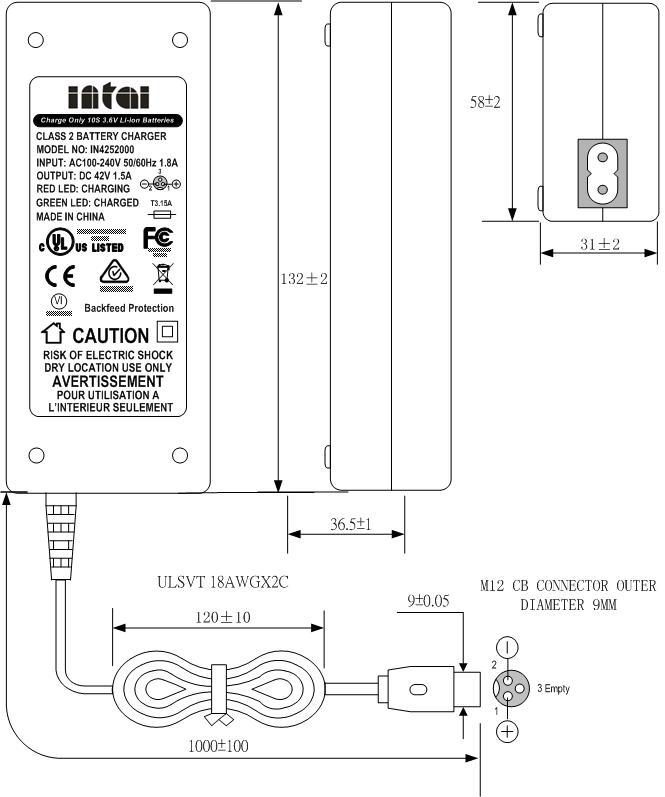

Mechanical Details(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
