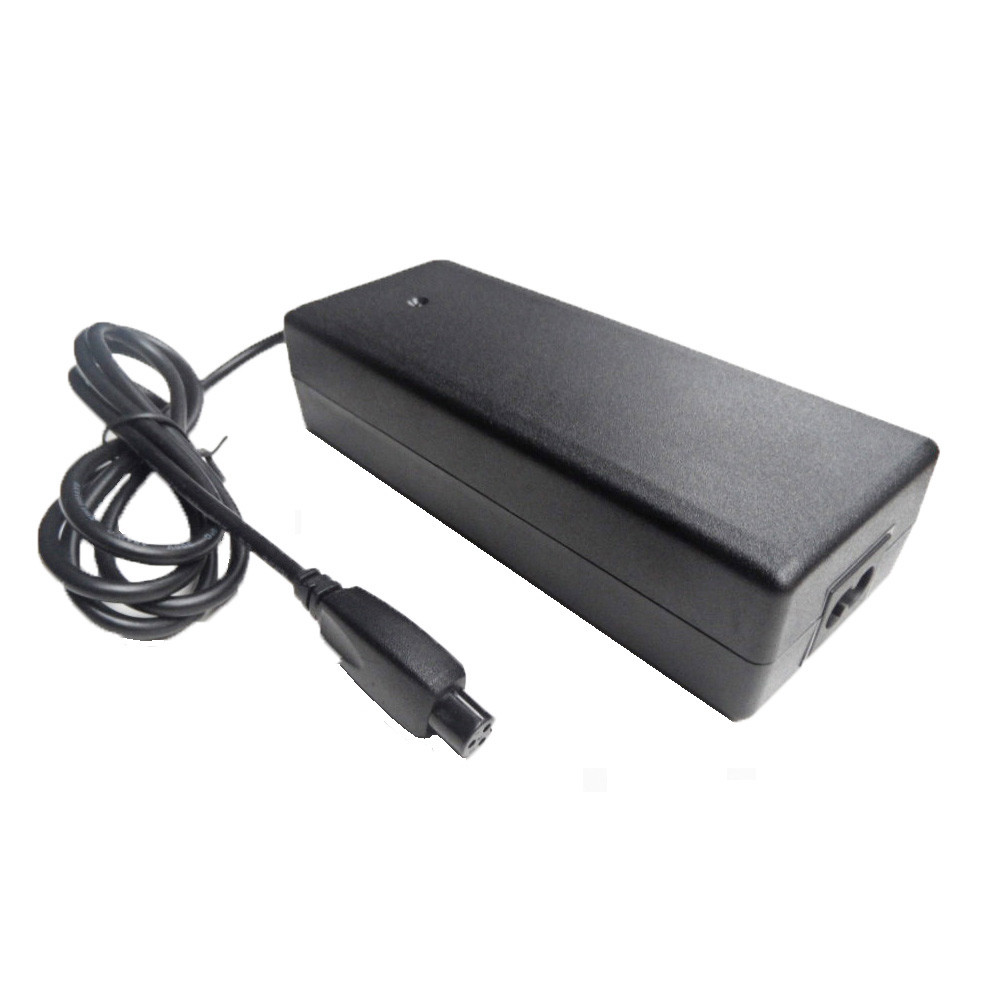

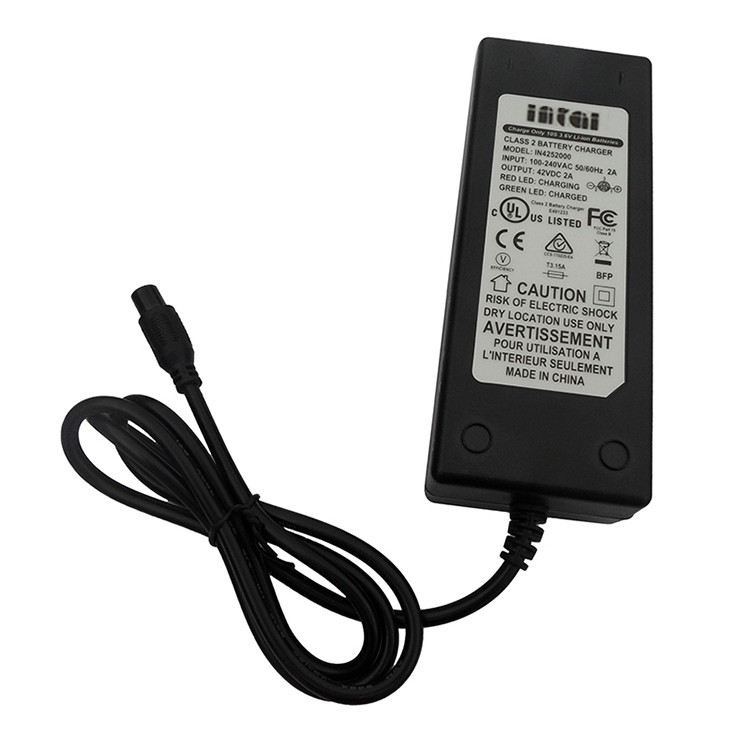

42V 2A battery charger
Model :IN4202000
Output :42V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The 10S Lithium ion 42V 2A battery charger is equipped with full protection against over heat, fire, explosion, electric shock, etc.. The 42v battery charger features auto shut off when a charge cycle is complete, and time out backup, so the charger can be left on overnight or unattended indefinitely. Advanced charge algorithm controls both voltage and current for precise charging. The 42V 2A lithium battery charger has been certificed to UL 1310 Class 2 battery charger, IEC 60335-2-29 household electrical appliances battery charger. One typical application for the charger is self-balancing scooters 42V 2A hoverboard charger.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 2A±5% | |
Battery Type | 10S cell 36V Lithium ion battery | |
Battery capacity recommended | 12AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 42V li ion charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 42V 2A hoverboard charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

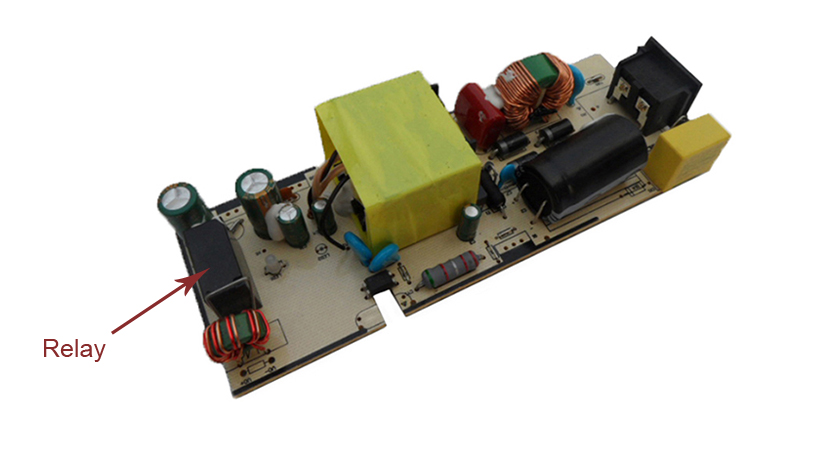

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

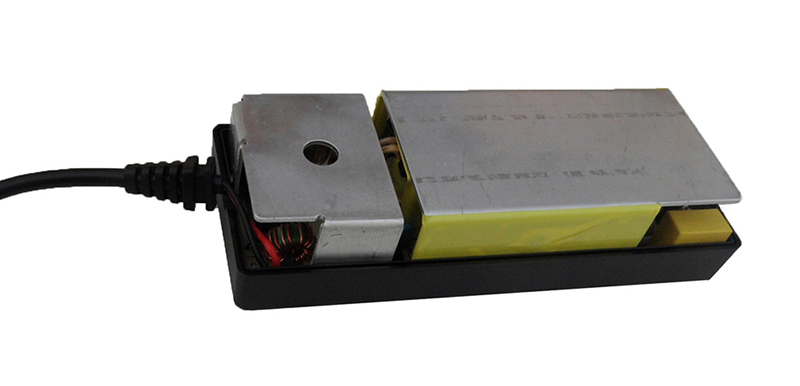

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 42V 2A battery charger works silently and safely. With the application of soft start technology, the output is spark free.

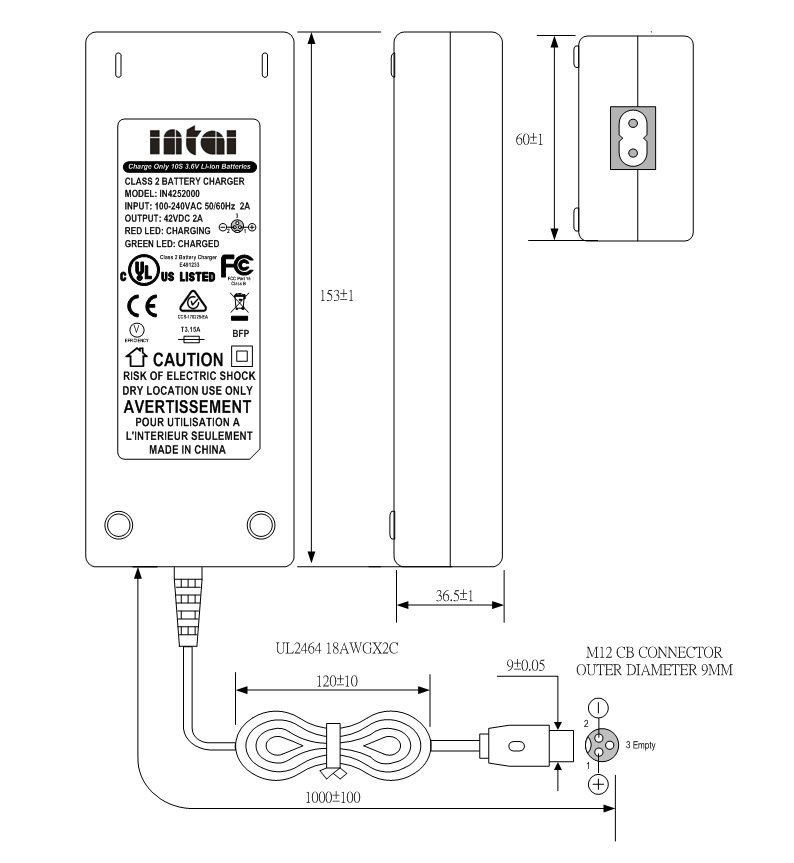

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
