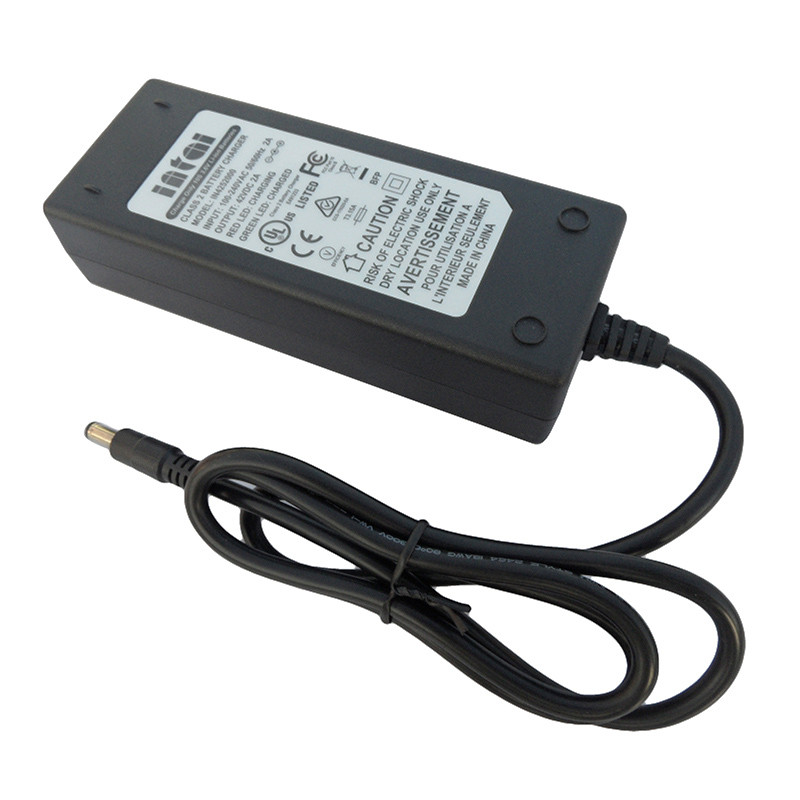

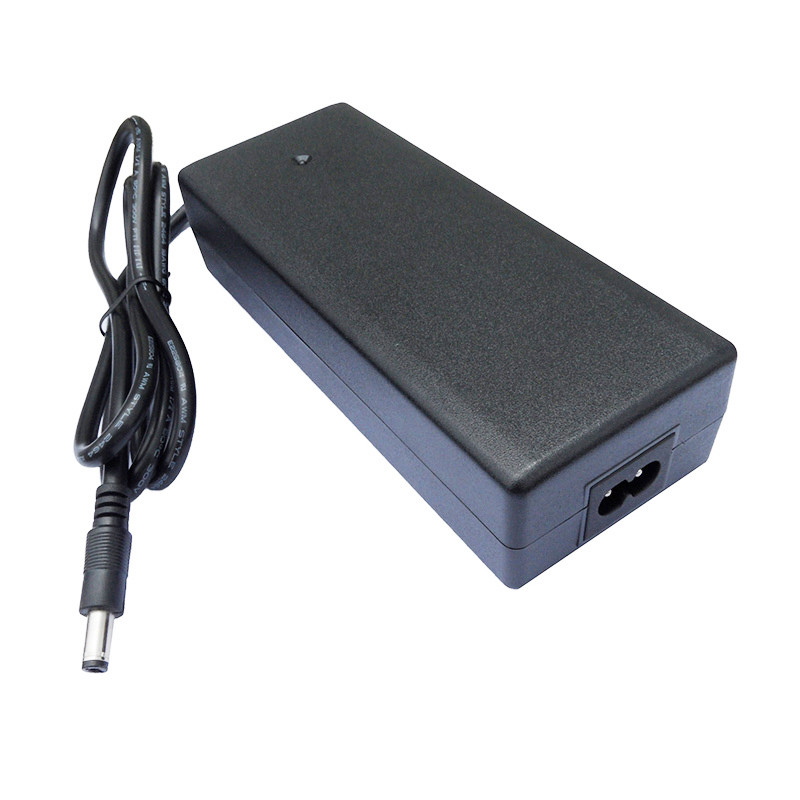

42V 2A charger
Model :IN4202000
Output :42 volt 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This 36V li-ion battery charger output 42V 2A with dc2.1mm head works well with 10S li-ion nominal 36V battery packs for electric skateboard, electric bicycles. The charger 42V 2A effectively optimizes battery performance and extends battery life span. It is a quality 42 volt battery charger designed to meet safety requirements regarding safety distance, fire hazard, flammability rating, structural integrity, safety interlocks, etc. The charger 42V 2A has been tested and approved by Nationally Recognized Test Lab(NRTC)( UL File #E491233, TUV CE File # 50079152 001, Model #IN4252000).
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42V |
Open Circuit Voltage | 42V±5% | |
Charge Current | 2A±5% | |
Battery Type | 10S cell 36V Li ion battery | |
Battery capacity recommended | 8AH~15AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 42V 2A charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 42V 2A AC adaper charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

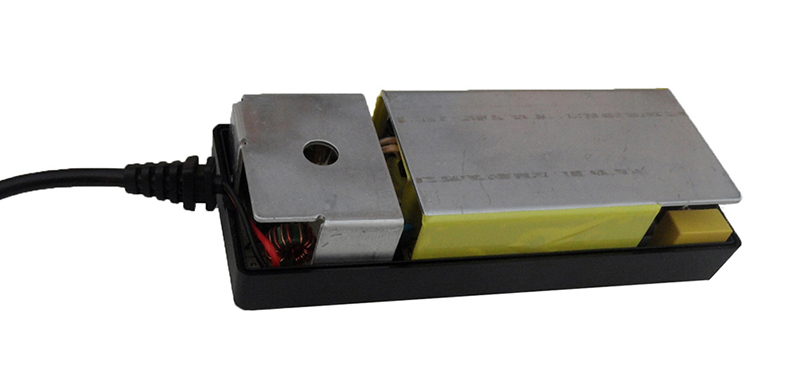

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 42V 2A AC adapter charger works safely and quietly. With the application of soft start technology, the output is spark free.

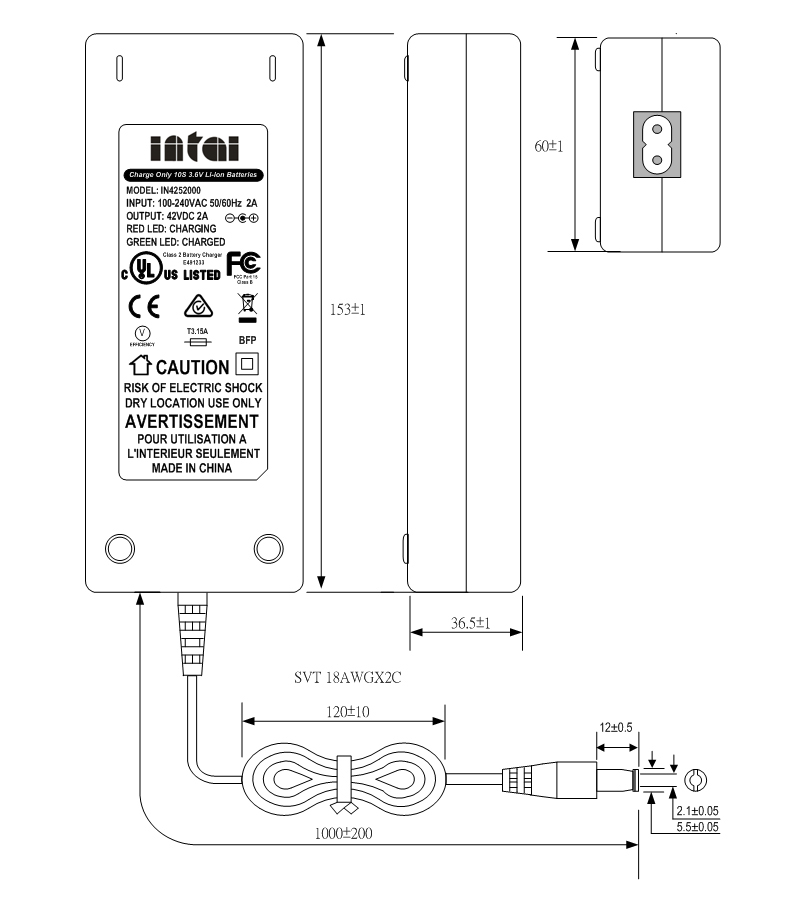

Product Dimension(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
