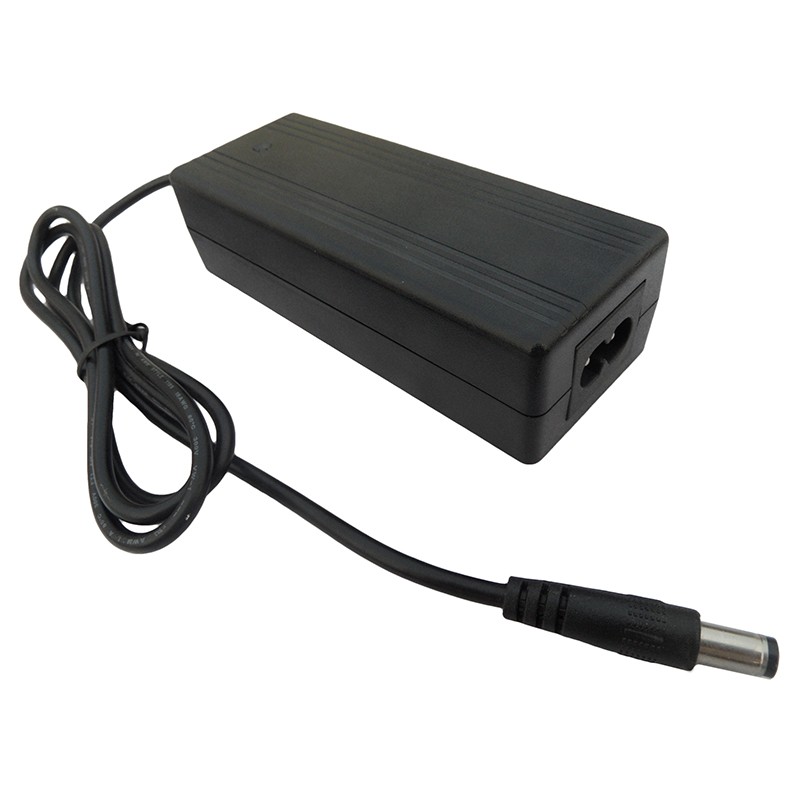

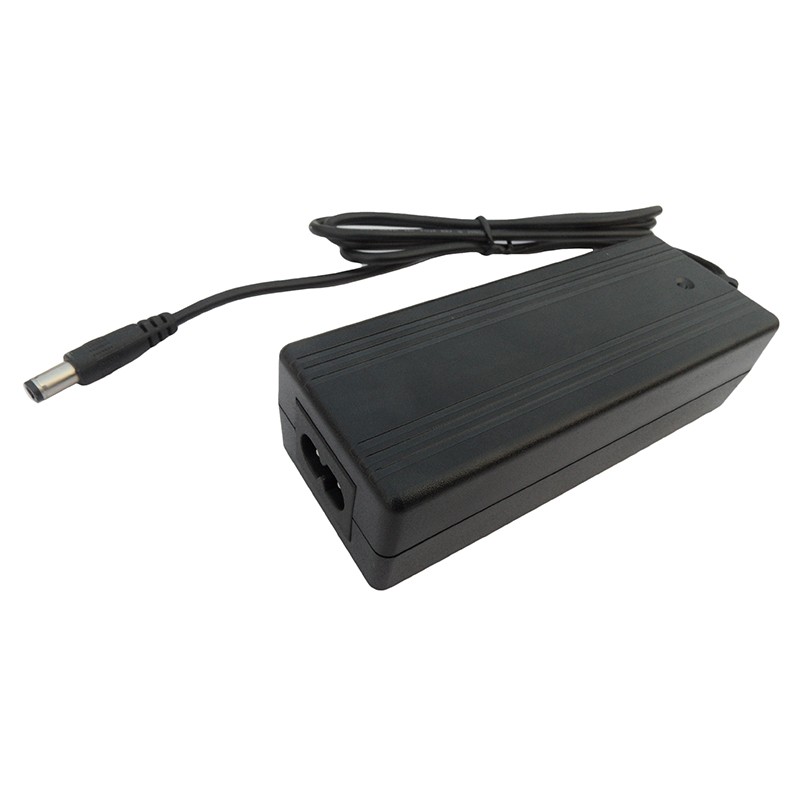

48V 1A Power supply
Model :IN4801000
Output :48V 1A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The IN4801000 48V 1A power supply adapter provides accurate constant voltage (CV) regulation with High Power, Low Noise and Excellent Reliability. The 48V 1A poe power adapter is based on a flyback converter with offline PWM controller for low standby adapters.
The 48V 1A power supply has a compact and lightweight design with very high power density. It features minimum four-point average efficiency in active mode, which is compliant with DoE Level VI , and offers low stand-by consumption. Intai also offers power supply adapter 12V which is on the top of the best selling list. Likes the 48V one, the 12 volt power supply adapter offers excellent EMC performance. Efficient heat dissipation design significantly enhances reliability, allows the 12V DC power supply adapter to operate at full power in higher ambient temperatures (see our UL/TUV test reports).
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 48V±5% |
Rated Current | 1A | |
Ripple & Noise | 500mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs |

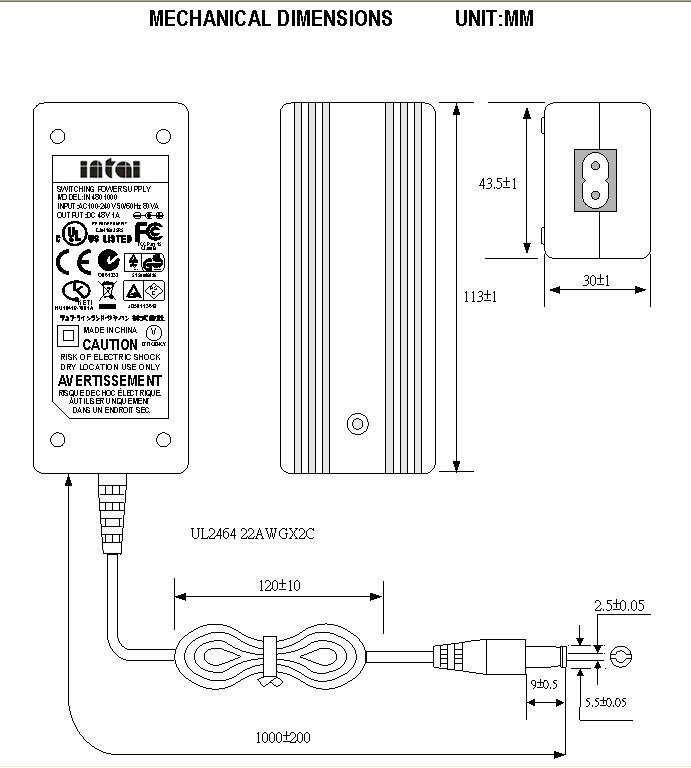

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
