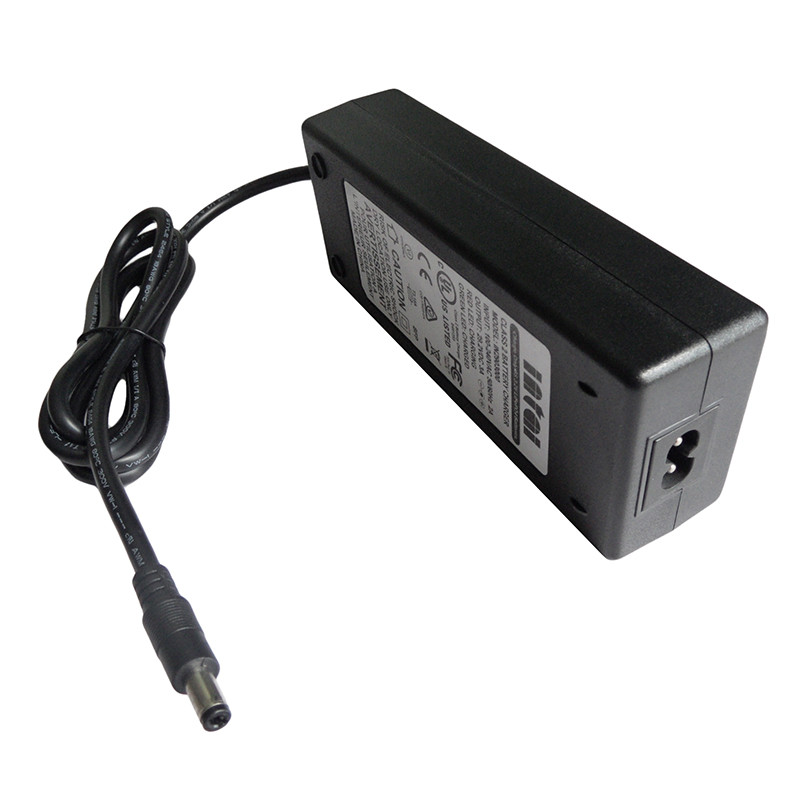

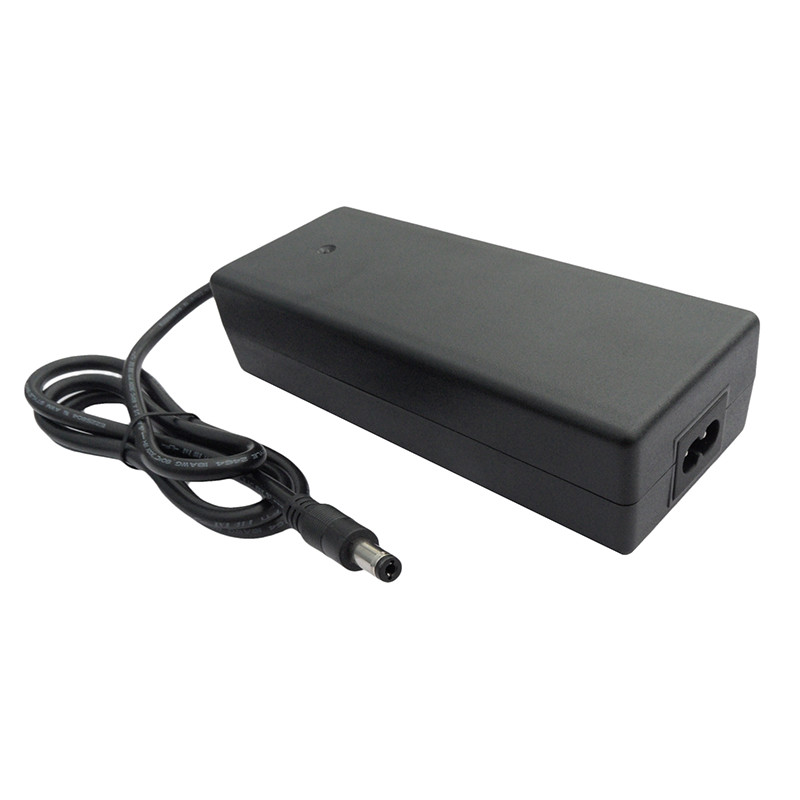

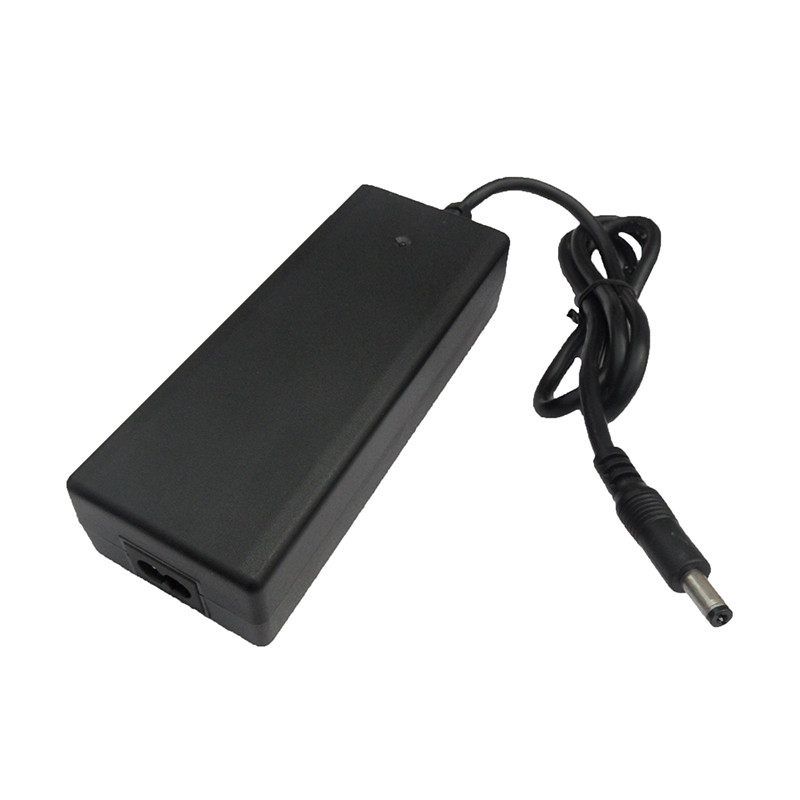

48V 2.5A power adapter
Model :IN4802500
Output :48V 2.5A
Brand :intai
Product origin :China
Supply capacity :2000pcs/day
Warranty : 3 year
This 48V 2.5A switching power adapter is built with the latest power supply technologies and the quality components materials to enable high performance. High-frequency AC-to-DC flyback converter with green-mode power-saving operation enables high power density and lowest no-load power consumption, to comply with global efficiency standards including DoE Level VI and EU CoC V5 Tier-2. The 48V 2.5A power adapter features full protection to maximize the reliability. These features include OLP(Over Load Protection), OVP(Over Voltage Protection), output short-circuit protection.
The 48V power adapter incorporates a pair of U shaped internal heat sinks to achieve efficient natural convection cooling to enable higher operating temperatures and reliability.
The 48 volt power adapter series is safety certified to IEC/UL/EN 60950-1 and carries the CE mark for the Low Voltage and RoHS Directives. The 48V adapter series is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product specification of the AC DC adapter 48V 2.5A
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.92 | |
Output | Output Voltage | 48V±5% |
Rated Current | 2.5A | |
Ripple & Noise | 400mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

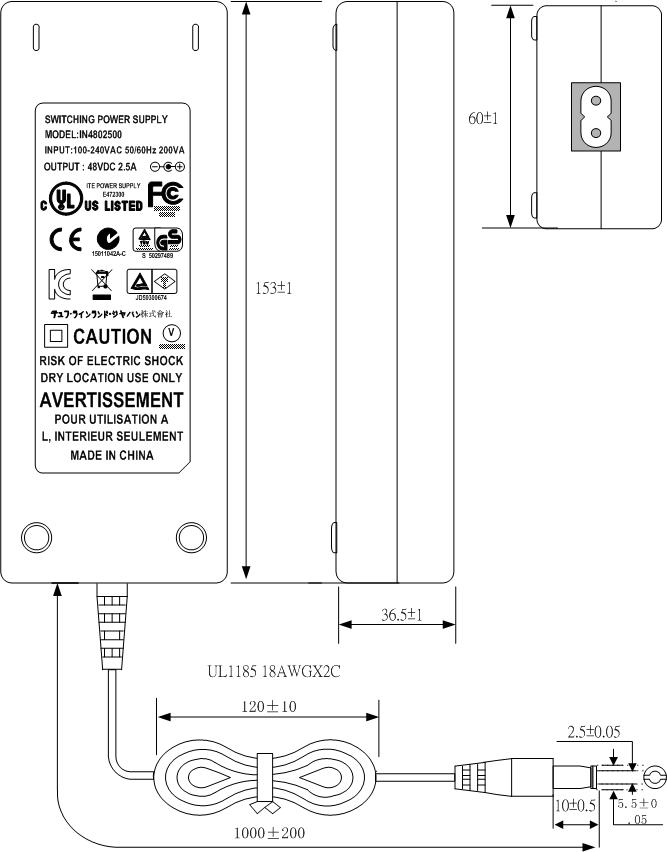

Mechanical details of the the AC DC adapter 48V 2.5A
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
