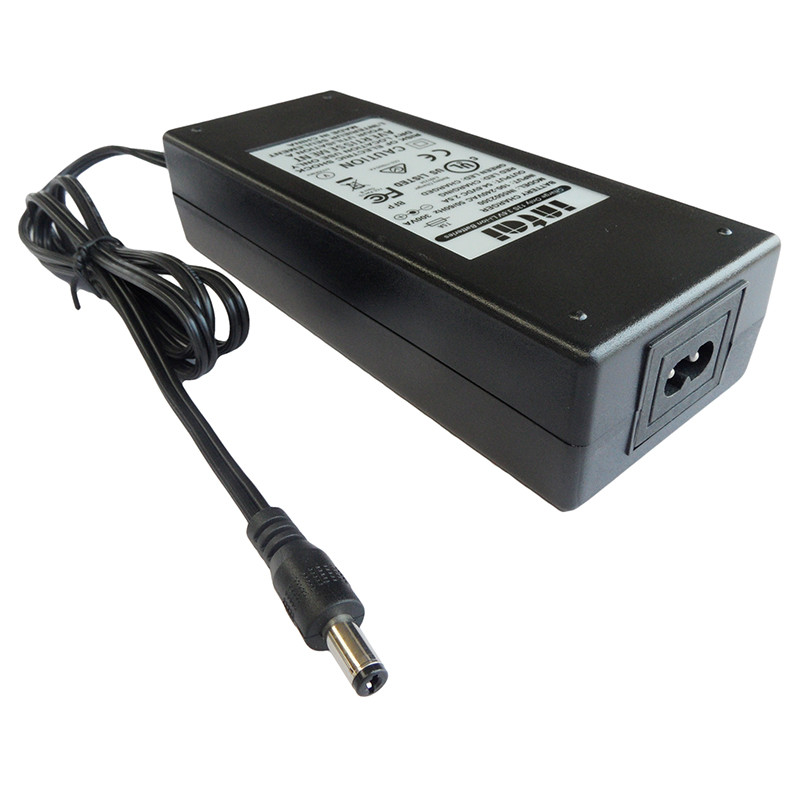

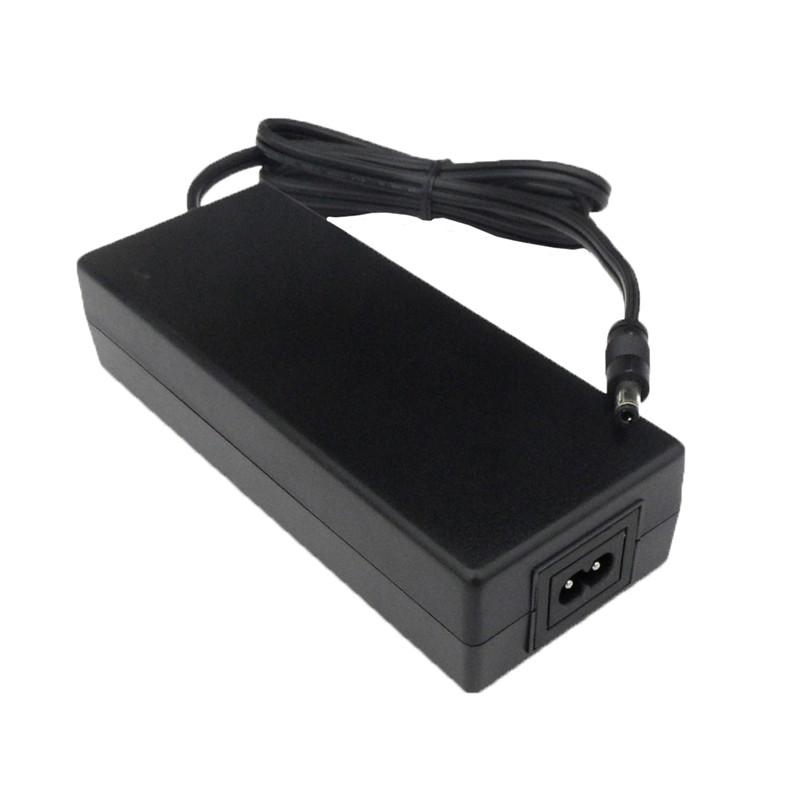

48V battery charger
Model :IN5802200
Output :58.8V 2.2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This 48V battery charger for 4 cell of lead acid battery offers durability, compact design, precision, technical intelligence and economic efficiency. The charger provides full protection and status indication. The 48V lead acid charger operates in three phases: pre-charge, CC and CV. Charge is terminated when the battery is full. The typical application includes 48V SLA ebike charger, 48V external battery charger for SLA AGM GEL VRLA batteries.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 35-58.8V |
Open Circuit Voltage | 58.8V±5% | |
Charge Current | 2.2A±5% | |
Battery Type | 4S cell 48V Lead acid SLA AGM GEL VRLA battery | |
Battery capacity recommended | 5AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 48V SLA battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 48V SLA battery charger
Red |
|
Green |
|
Red flash |
|

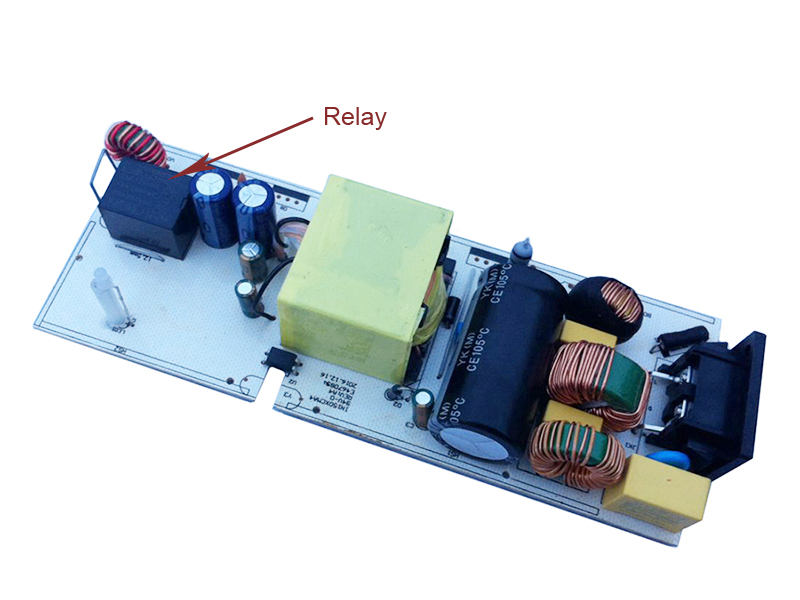

When battery charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

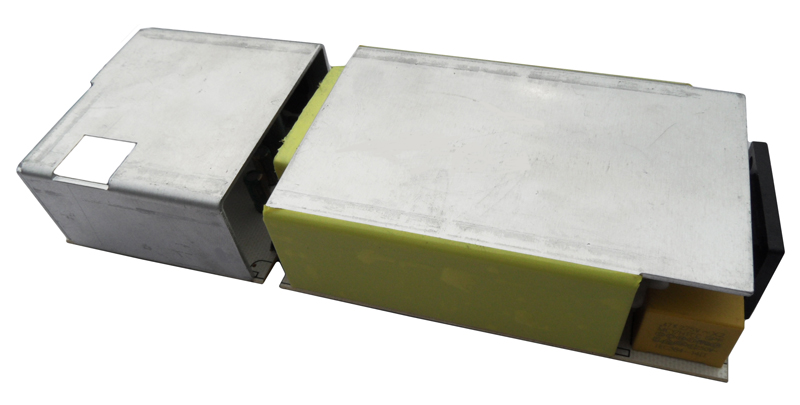

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 48V lead acid charger works safely and silently. With the application of soft start technology, the output is spark free.

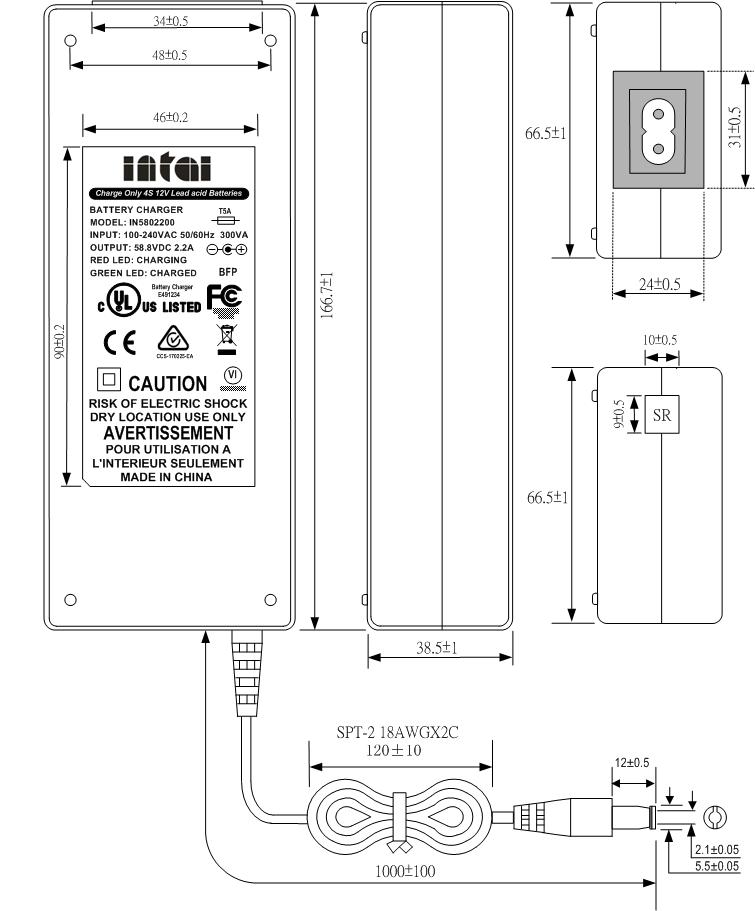

Mechanical Details(mm)
Safety certificates
