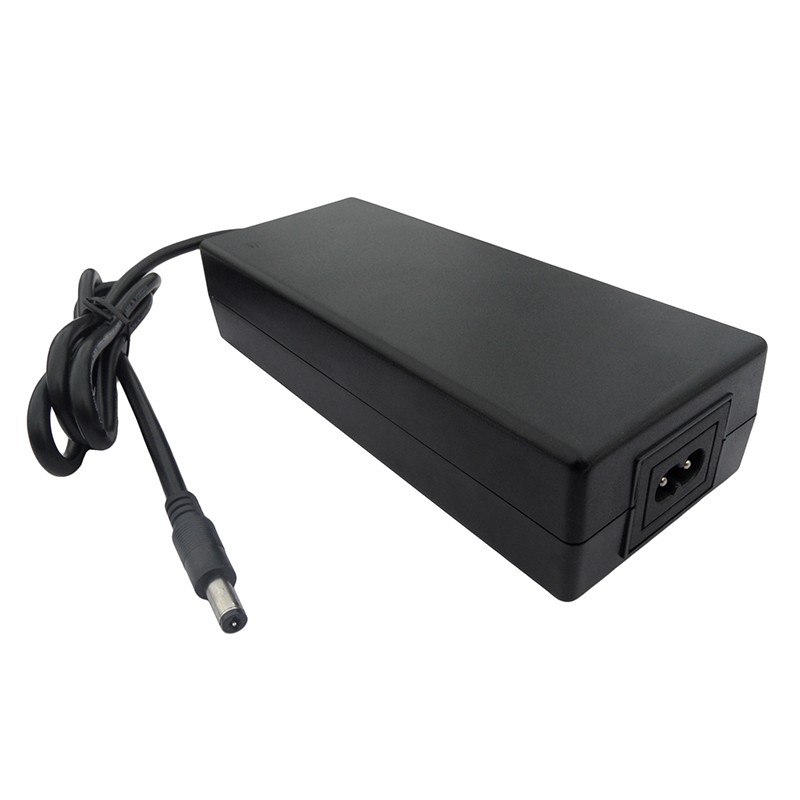

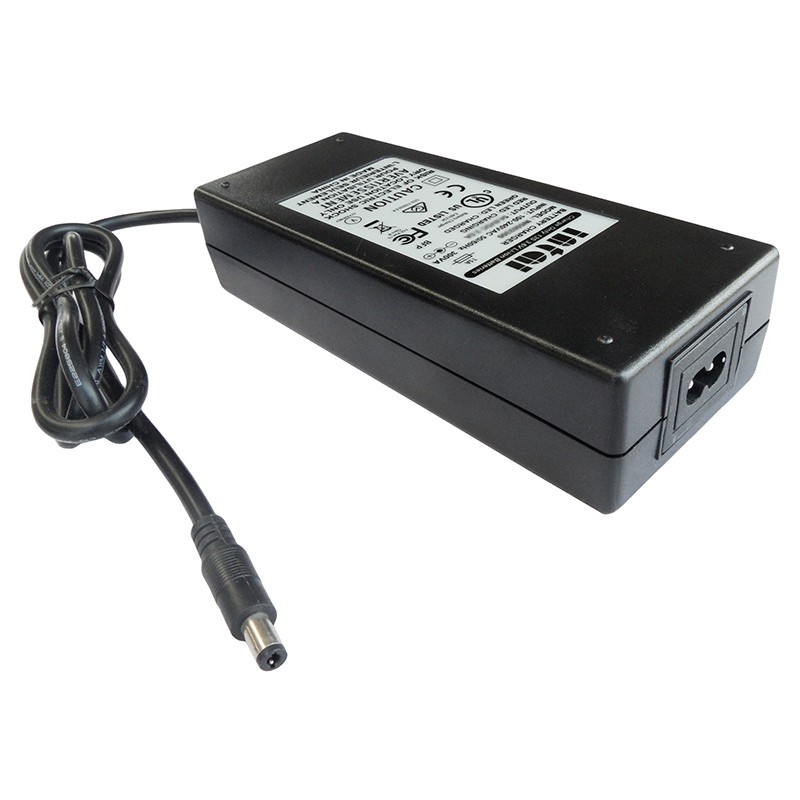

48V lead acid battery charger
Model :IN5802200
Output :58.8V 2.2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai IN5802200 130W 48V lead acid battery charger, a highly efficient, reliable, compact, high power density, smart 48vdc battery charger which incorporates multi steps in the charging cycle provides safe and accurate charge performance. The 48V battery charger lead acid features bad cell detection, pre-charge, full protection against faulty conditions, auto shut off when charge is complete.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 35-58.8V |
Open Circuit Voltage | 58.8V±5% | |
Charge Current | 2.2A±5% | |
Battery Type | lead acid 48V 17ah battery for adult trike | |
Battery capacity recommended | 6AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 58v battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 48 volt smart charger
Red |
|
Green |
|
Red flash |
|

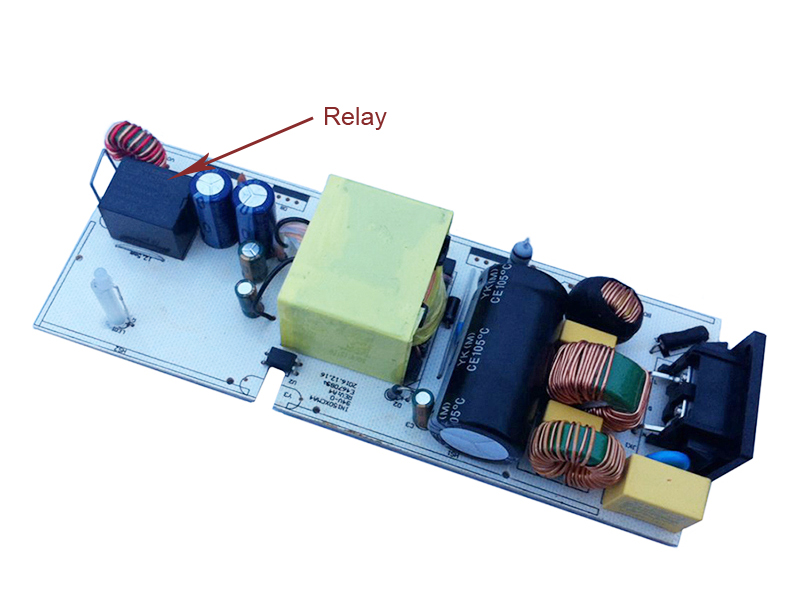

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

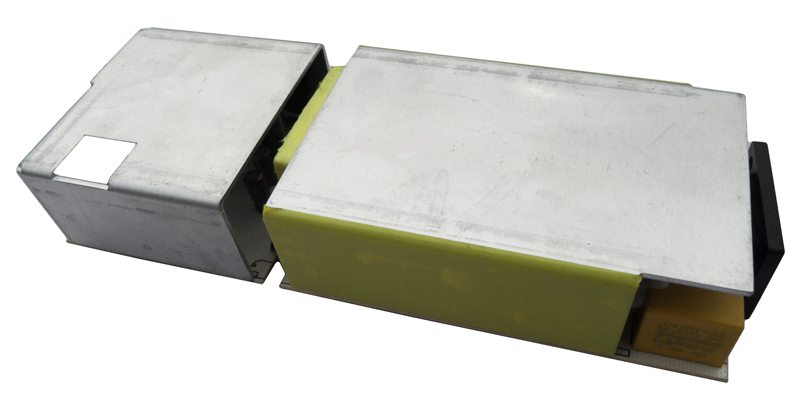

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 48vdc battery charger works silently and safely. With the application of soft start technology, the output is spark free.

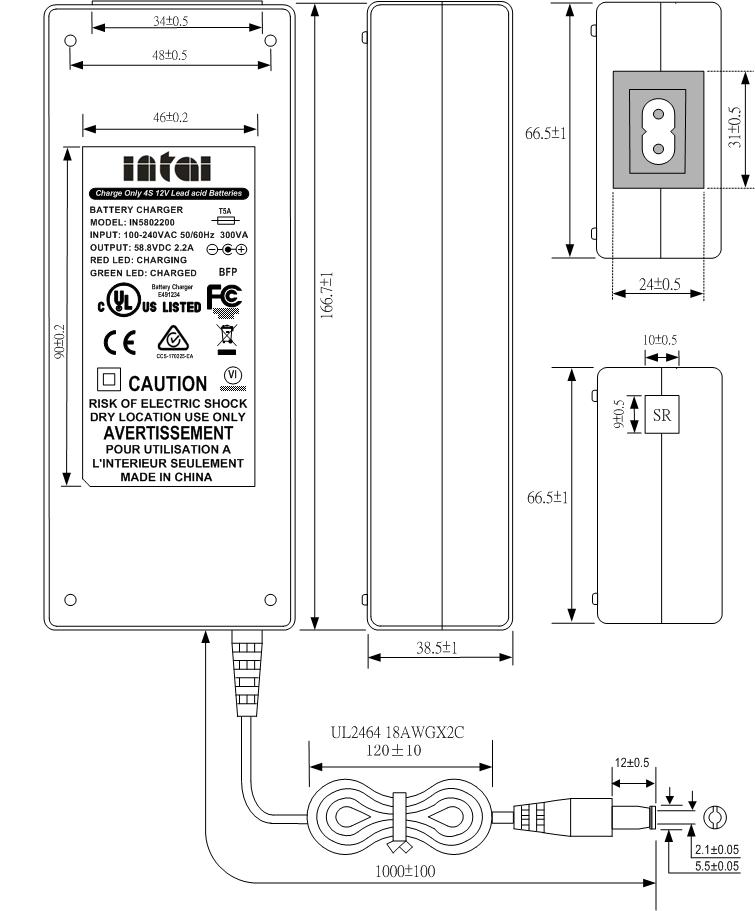

Product dimension(mm)
Safety certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
