48V LiFePO4 battery charger
Model :IN5802200
Output :58.4V 2.2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The 48V LiFePO4 battery charger IN5802200 works great with 16S LiFePo4 batteries 48 volt pack of size 6AH or larger. It is designed with advanced charging algorithms to achieve high operating efficiency and the durable, reliable performance. The 58.4V LiFePo4 battery charger is a UL1012 listed battery charger that incorporates protective electronics that automatically shut down the charger to prevent overcharging or fire hazard when fault occurs.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 36-58.4V |
Open Circuit Voltage | 58.4V±5% | |
Charge Current | 2.2A±5% | |
Battery Type | 16S lifepo4 batteries 48V | |
Battery capacity recommended | 8AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |

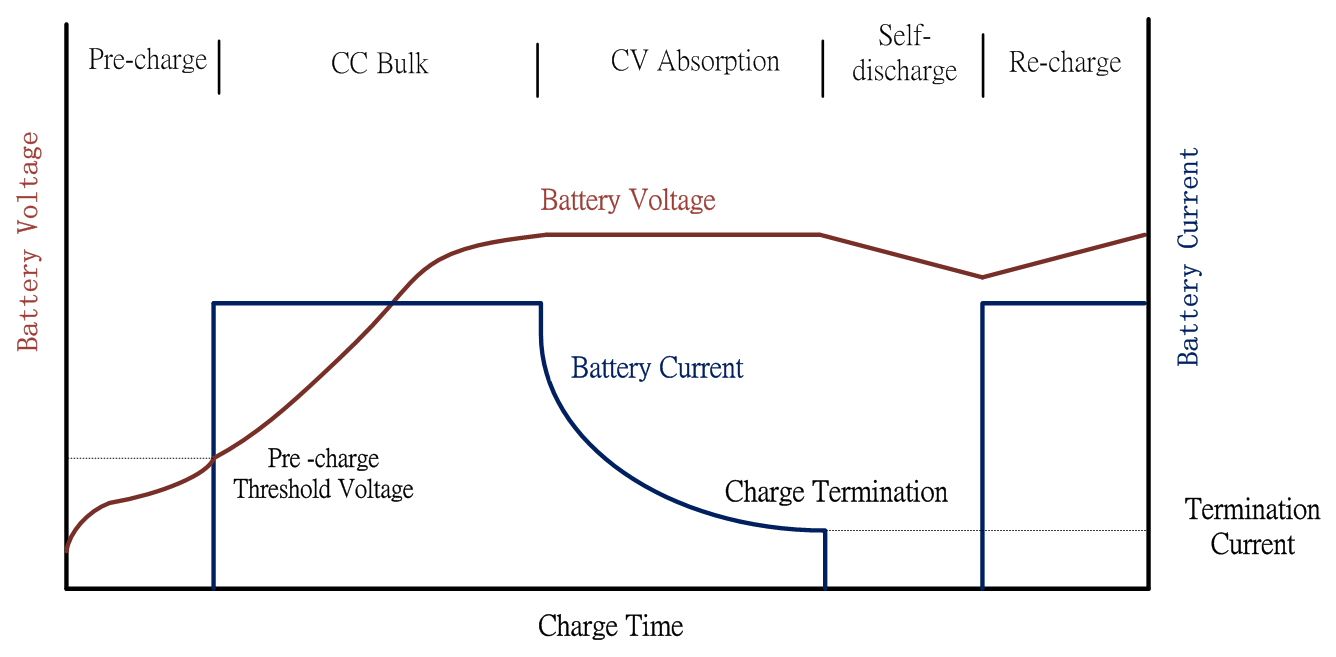

The 58.4V lifepo4 battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 48V LiFePO4 battery charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
Red flash | Reverse connection with the battery Faulty battery Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

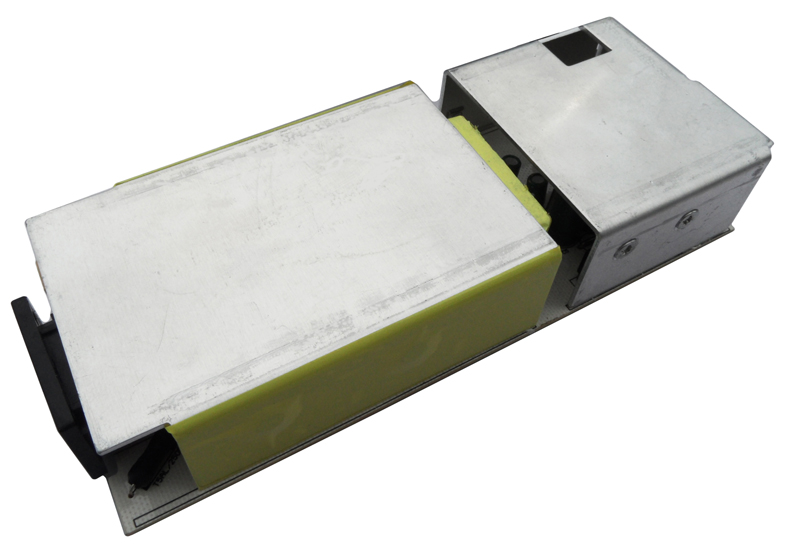

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 60v lifepo4 battery charger works silently and safely. With the application of soft start technology, the output is spark free.

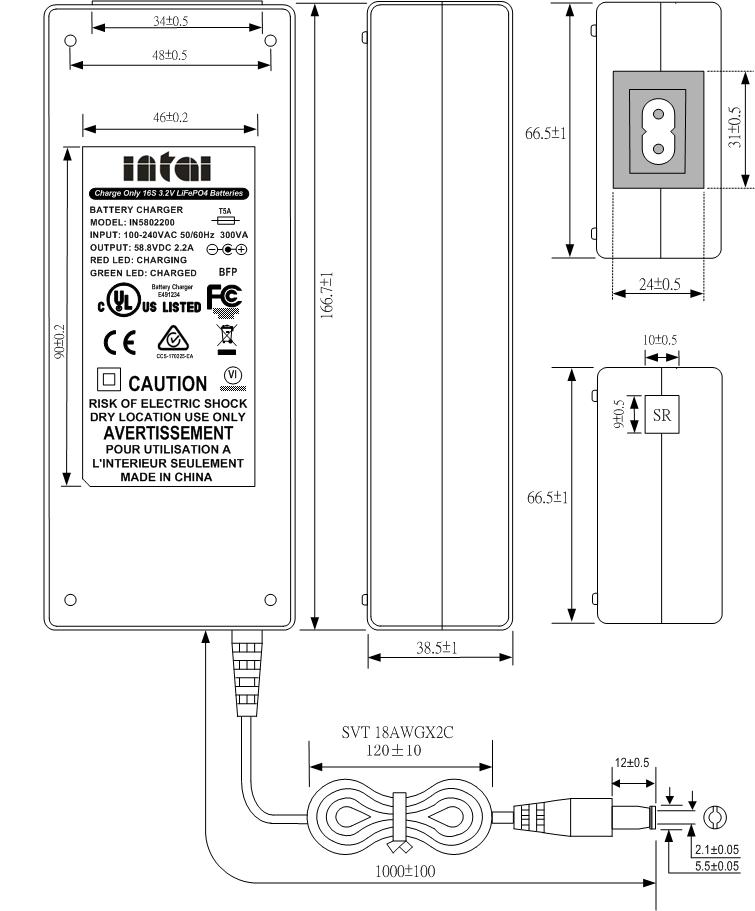

Mechanical Details(mm)
Safety Certificates
