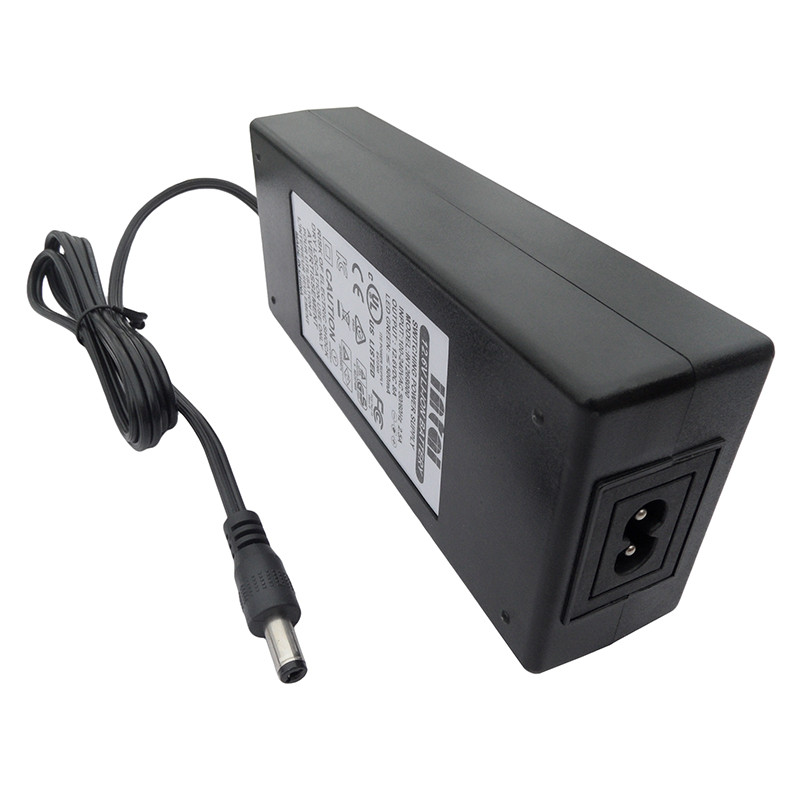

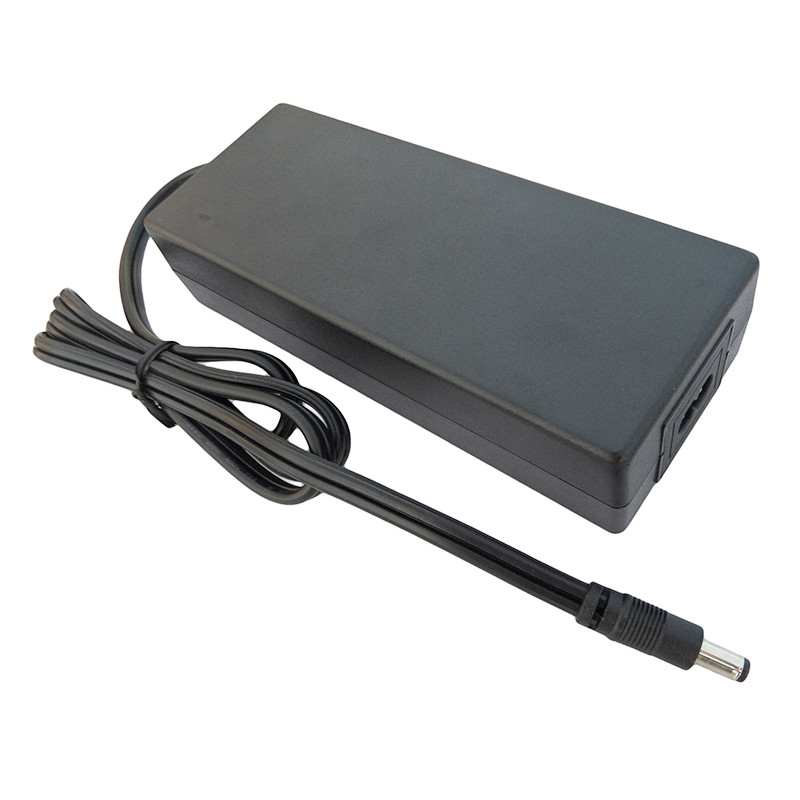

48V Lithium battery charger
Model :IN5502300
Output :54.6V 2.3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This lithium battery charger 48V 2.3A is perfect for quickly recharging 48V lithium batteries for electric bicycles, scooters. The sans lithium battery charger not only incorporates multi-stage charge algorithms to optimize battery performance and extend their life span, the sans battery charger is also equipped with protection circuits to enhance safety and reliability including reverse polarity protection, backfeed protection(BFP), faulty battery detection /protection, 12 hours time out. The 48V lithium charger is UL1012 battery charger approved. Comes with 2.1mm DC head, the 48V lithium battery charger is compatible with most of the e-bikes powered by 13S lithium batteries.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 32-54.6V |
Open Circuit Voltage | 54.6V±5% | |
Charge Current | 2.3A±5% | |
Battery Type | 13S cell 48V Lithium battery | |
Battery capacity recommended | 8AH~16AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The sans battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of The Sans Class 2 Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

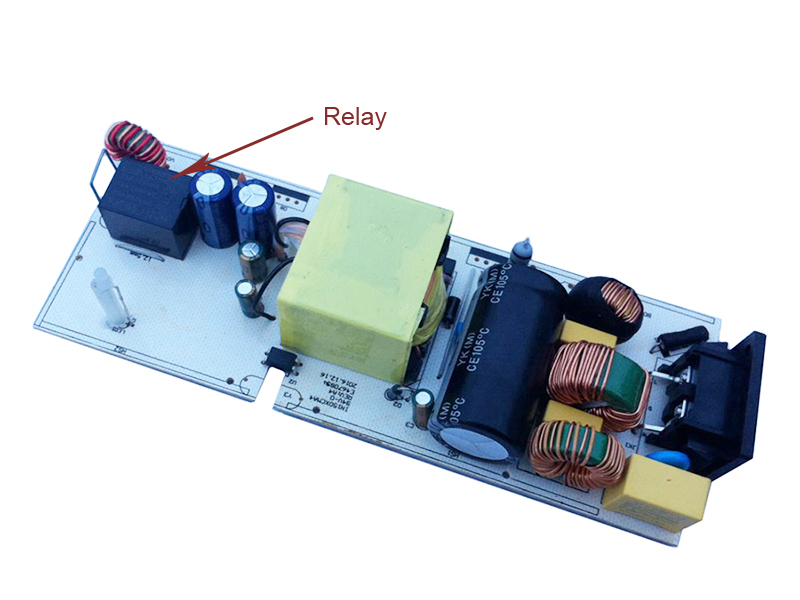

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 48V lithium battery charger works quietly and safely. With the application of soft start technology, the output is spark free.

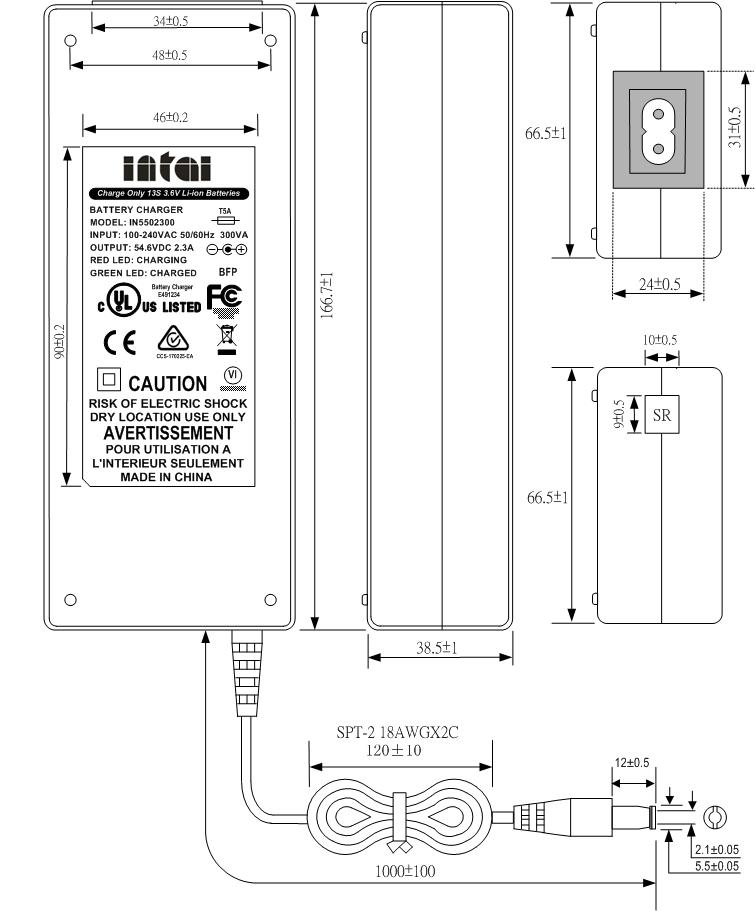

Mechanical Details(mm)
Safety Certificates
