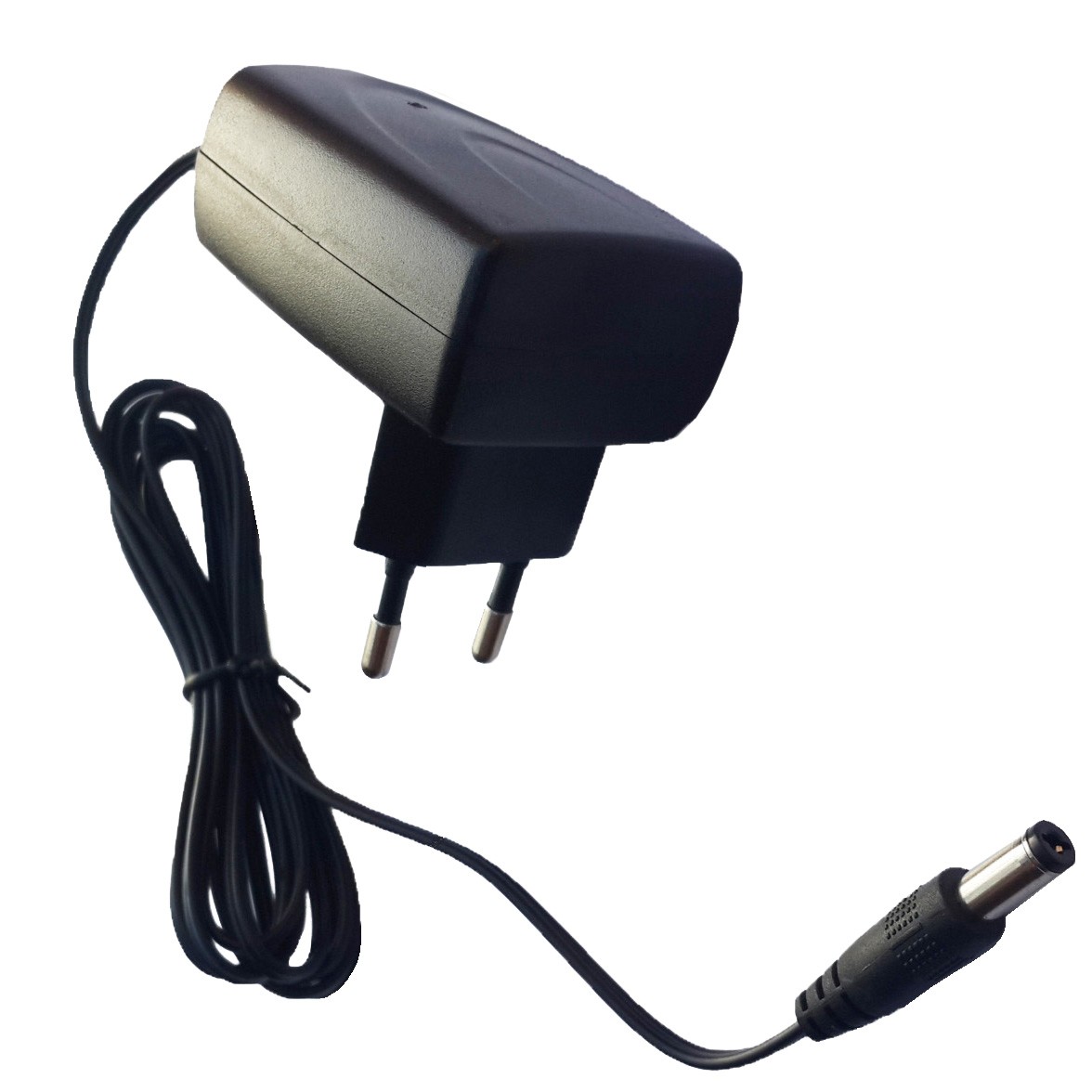

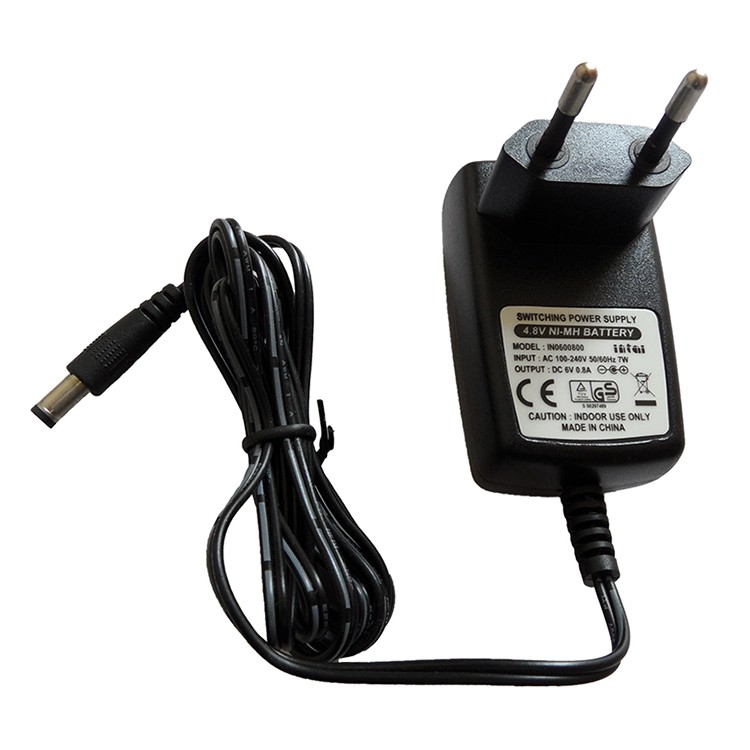

4.8V Nimh battery pack charger
Model :IN0600800
Output :6V 0.8A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
The charger for 4.8V battery pack of Nickel metal hydride battery combines all of the features neccessary to assure long battery life with repaid charging capability. The 4.8V nimh battery charger provides accurate charging to enable optimal battery performance. Charging current is terminated before 100% capacity by negative delta V. Benefiting from the design of a compact, light weight, high performance 4.8V battery charger for flashlight, a cost effective system can be built with flexibility. The 4.8V nimh battery pack charger is covered by a 3 year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >60% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 3.2-6V |
Open Circuit Voltage | 6V±5% | |
Charge Current | 0.8A±5% | |
Battery Type | 4S cell NiMH battery | |
Battery capacity recommended | 800mAH~1600mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | CE | Certificate Number: 50079152001 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.09kgs |

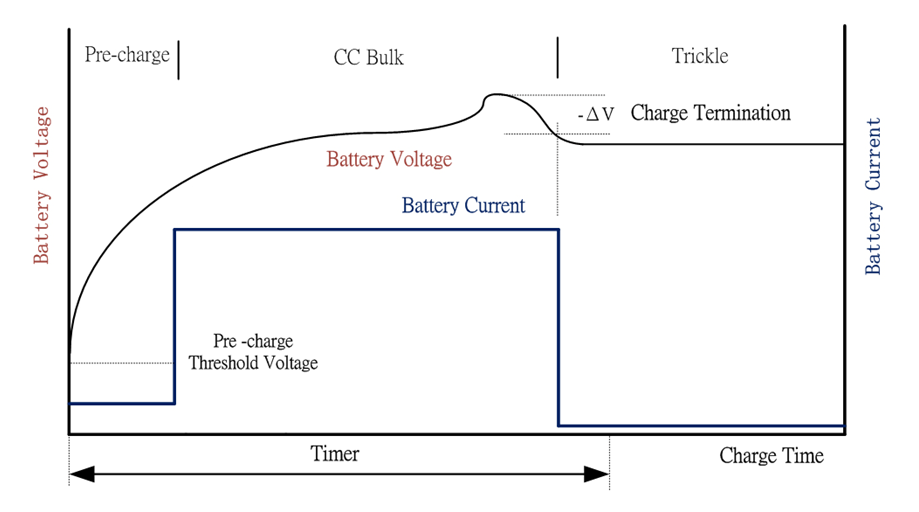

The 4.8V nimh charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 4.8V NiMH Charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
