5V 3A Power adapter

Model :IN0503000

Output :5V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty : 3 year

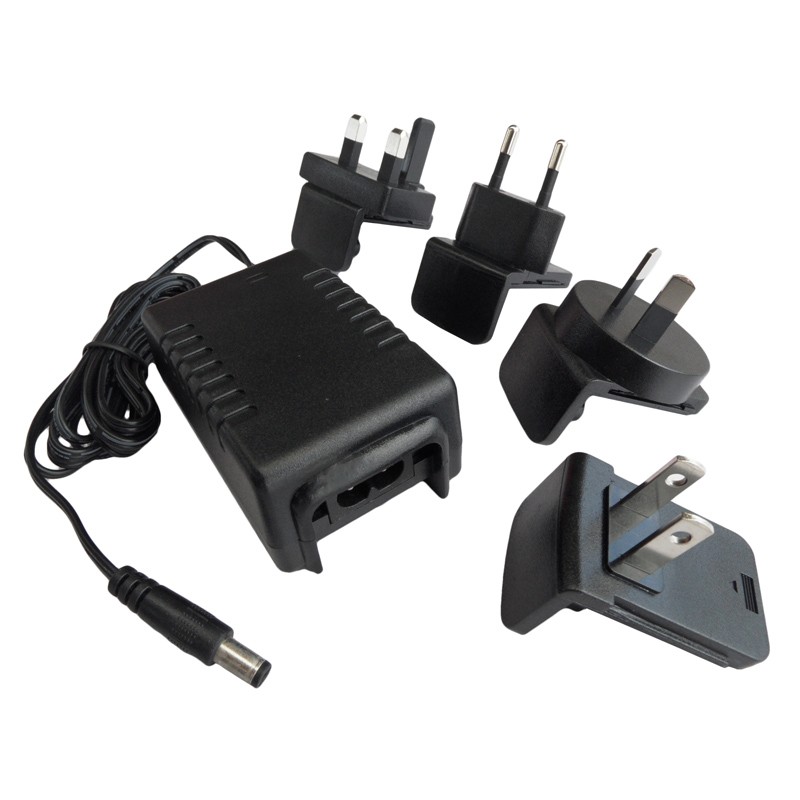

The 5V 3A power supply provides a high-power-density and cost-effective solution for a variety of application field. This universal switching power supply accepts AC input 100-240V with optional exchangeable AC plugs US EU UK AU CN for worldwide travel. The 5V 3A adapter provides both constant voltage regulation and over-current protection. The 5V 3A power adapter operates at a high switching frequency to achieve high efficiency in all load conditions, with a low total standby consumption and low output ripple and noise. Full protection functions improve the reliability including OCP, OVP, OLP, and effective thermal management enhances reliability further, allows the 5V 3A AC adapter to operate at full power at higher ambient temperatures. 5V 3A power supply micro USB is available which is protected against destructive electrostatic discharge (ESD) from the micro USB connector.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	5V±5%
	Rated Current	3A
	Ripple & Noise	50mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.1kgs

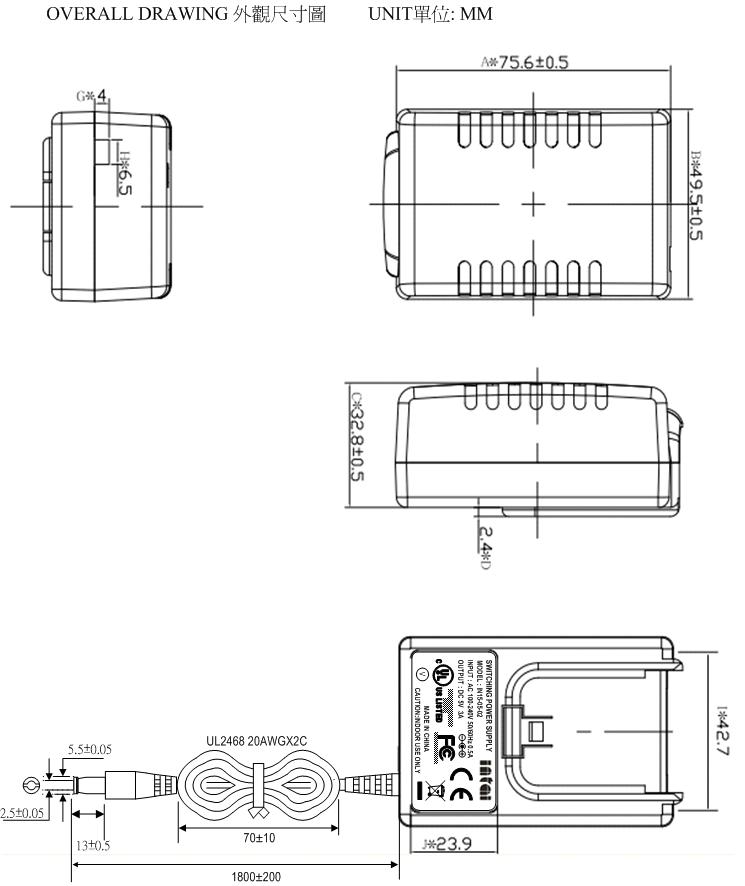

Product Dimension

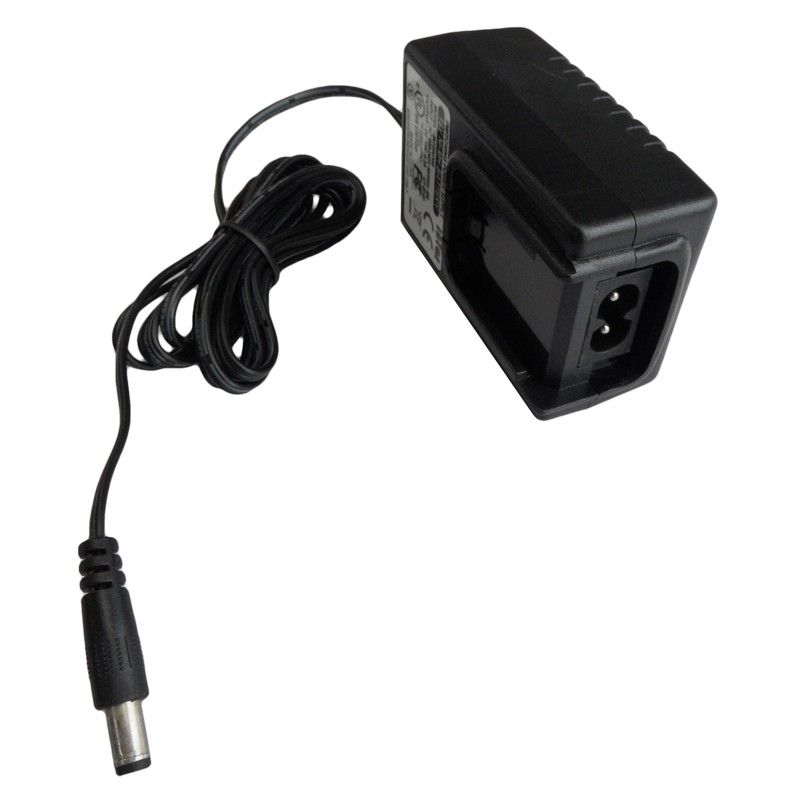

5v 3a ac adapter

Safety Certificates

Universal switching power supply

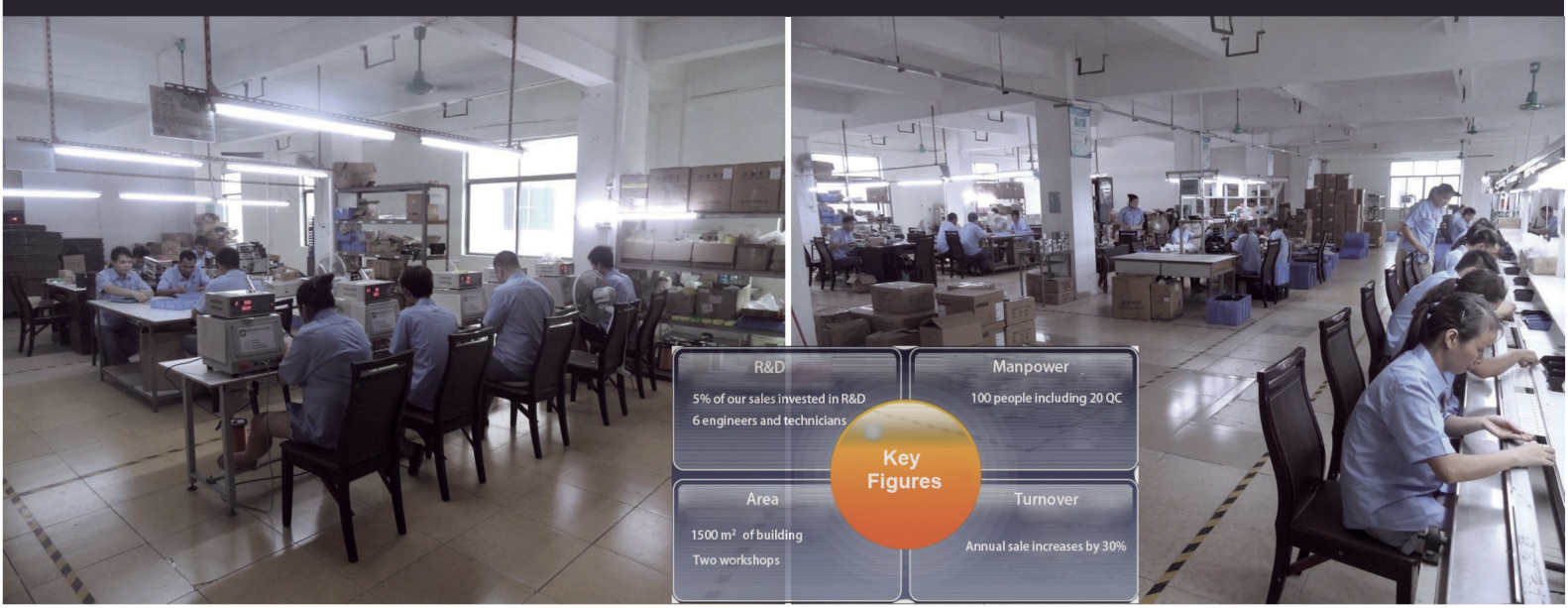

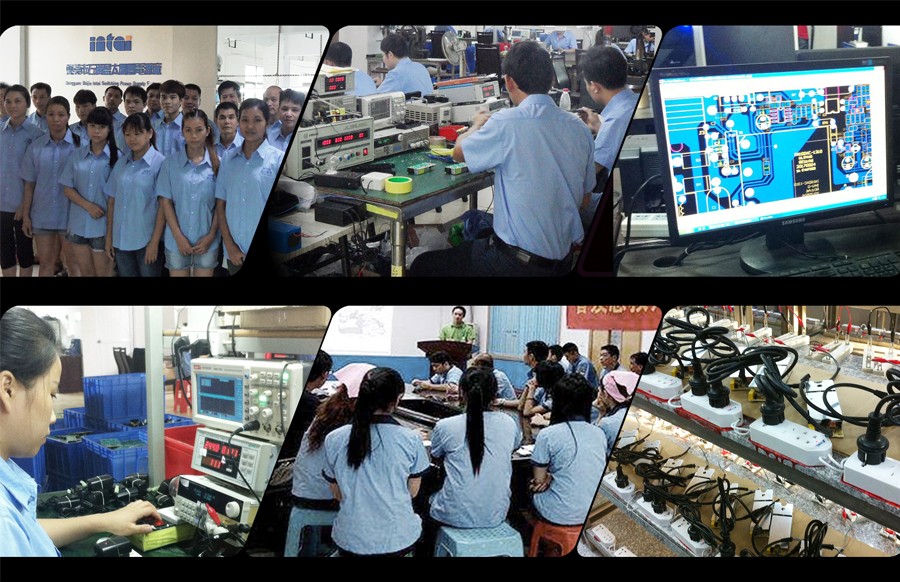

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

5v 3a power supply

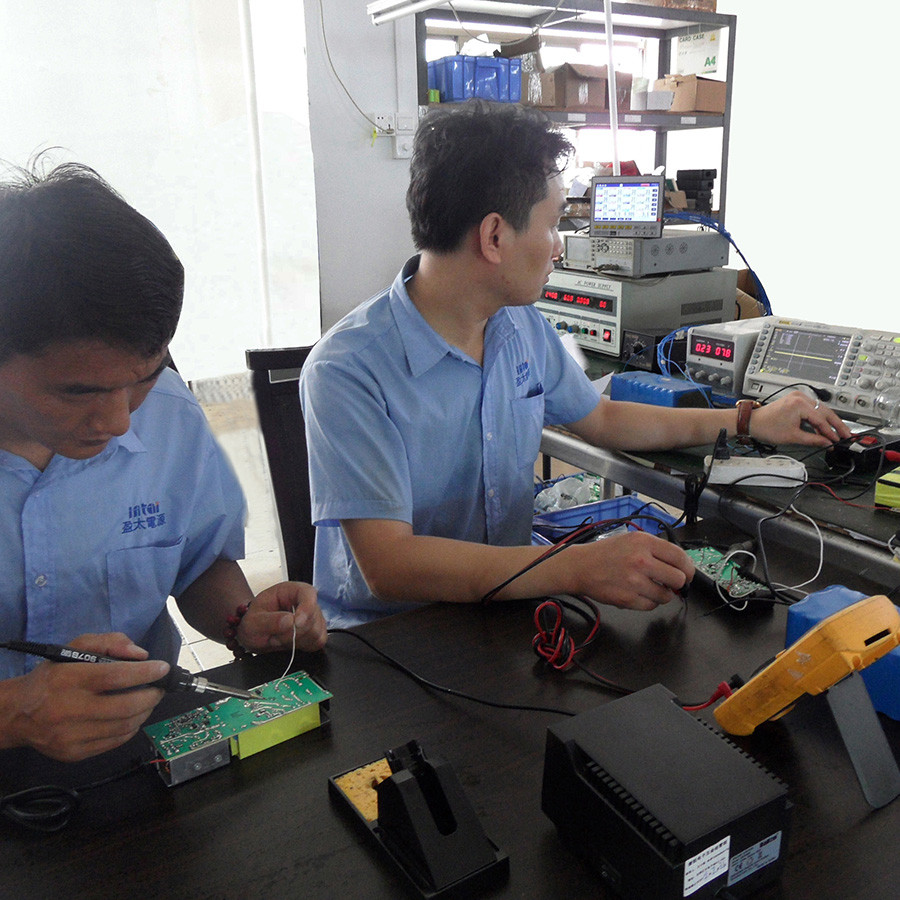

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

5v 3a ac adapter
