60 Volt lead acid battery charger
Model :IN7305000
Output :73.5V 5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year

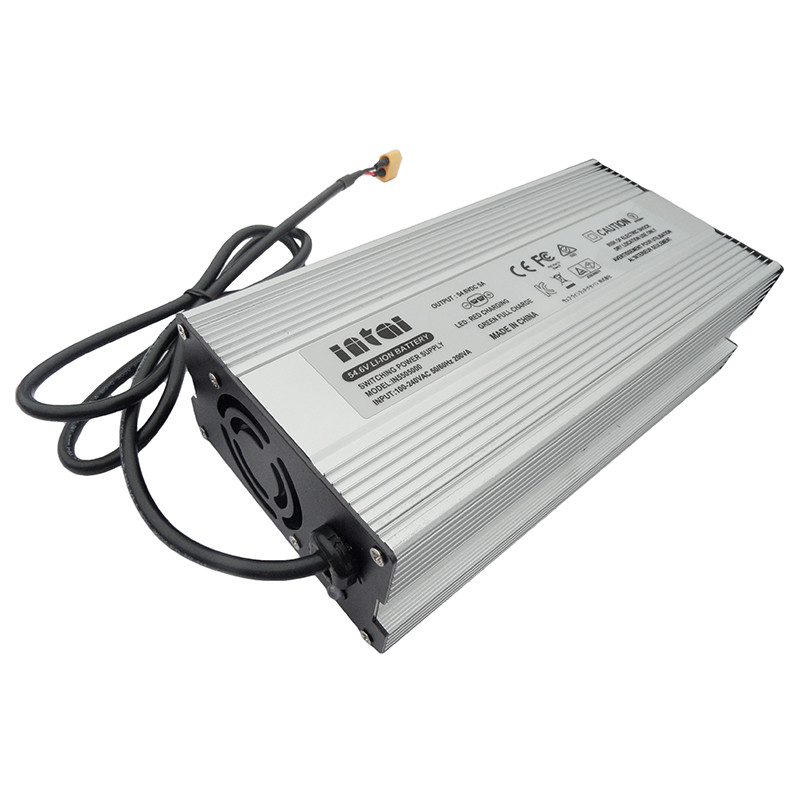

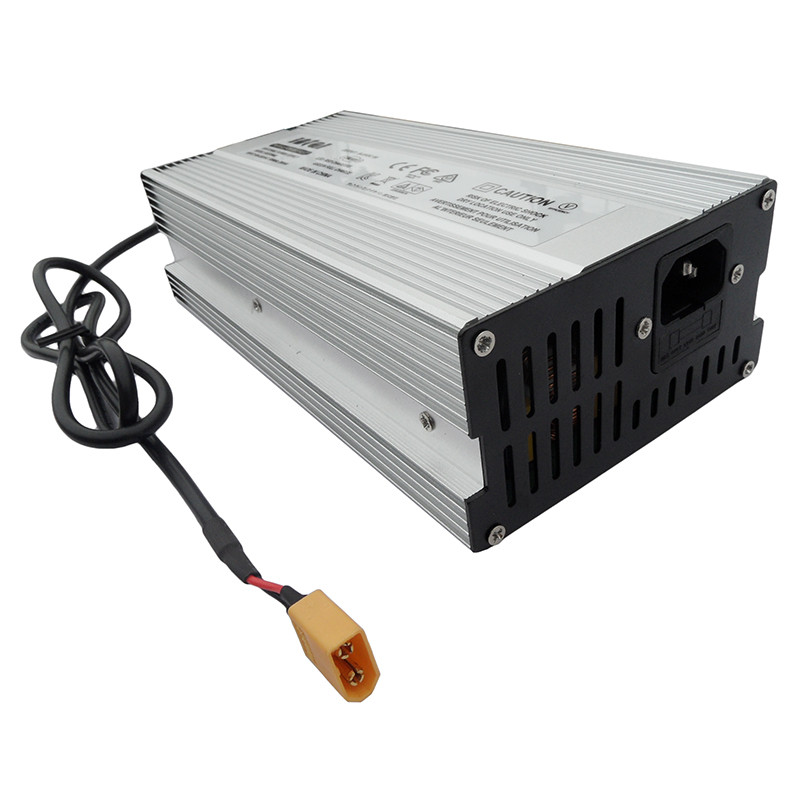

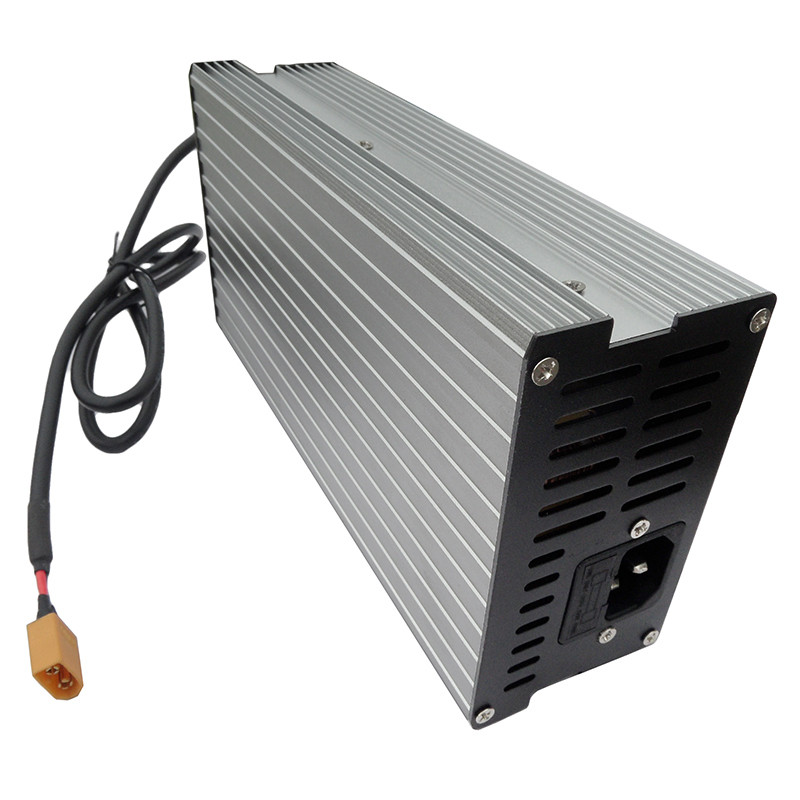

The 73.5V heavy duty battery charger is designed for 60V Lead acid batteries that charges at 5 amps current density, accepting a world wide AC input 90-264Vac. The 60V lead acid battery charger is built with aluminum housing and high quality fan runs quiet and are reliable for efficient heat dissipation. This 60V battery charger also features high efficiency, low noise, intelligent with advanced charging algorithm. The 60 volt lead acid battery charger works great with 5 cell SLA pack for heavy duty electric vehicles, electric tricycle, electric forklift, electric bicycles...you can expect a powerful and durable performance delivered by the lead acid battery charger 60V 5A.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <1W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 40-73.5V |
Open Circuit Voltage | 73.5V±5% | |
Charge Current | 5A±5% | |
Battery Type | 5S cell 60V Lead acid battery | |
Battery capacity recommended | 30AH~50AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 1kgs |
The 60V lead acid battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the lead acid battery charger 60V 5A
Red |
|
Green |
|
Red flash |
|
The 60V battery charger works silently and safely. With the application of soft start technology, the output is spark free.

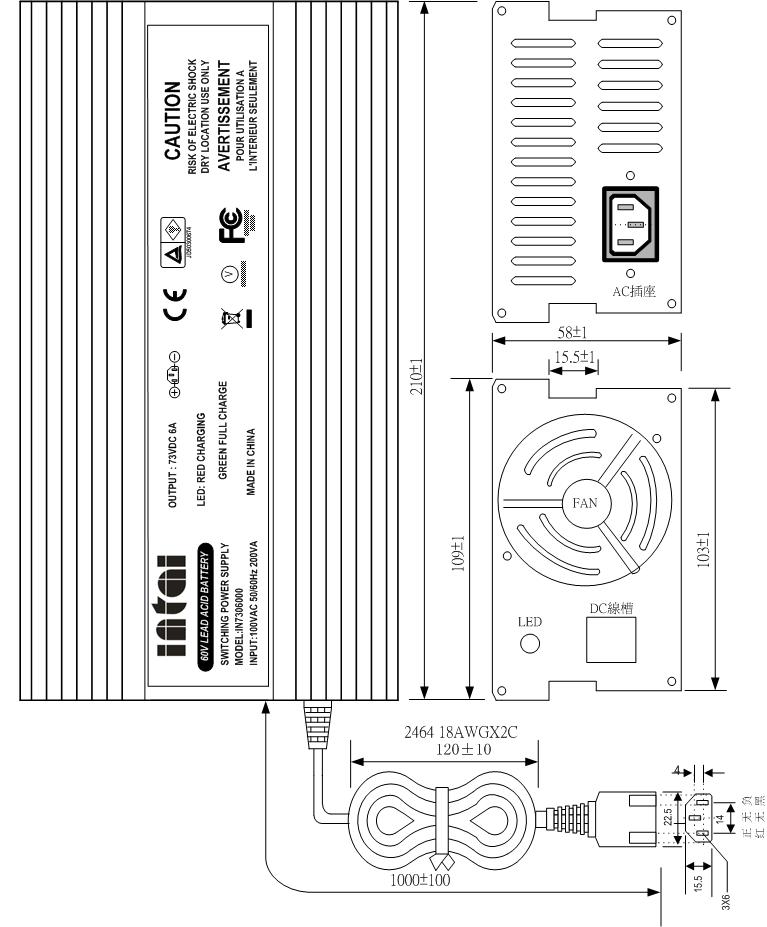

Product dimension(mm)
Safety certificates
