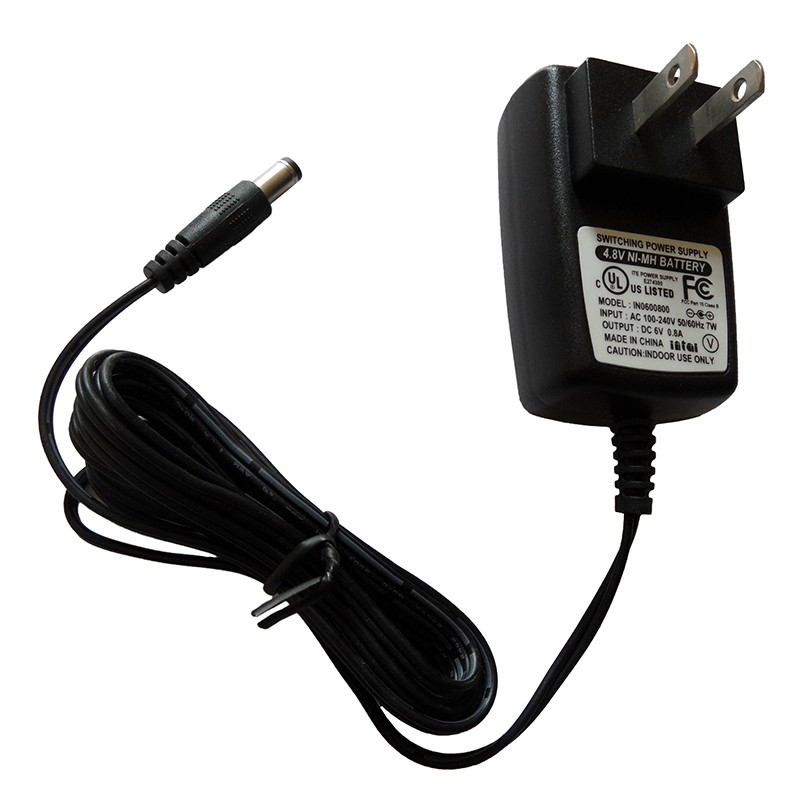

6V Nimh battery charger
Model :IN0600800
Output :6V 0.8A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
The 6V nimh charger is designed to charge a 2500mA 4 AA cell pack. The cell charger features automatically cut-off by negative delta V when battery pack attains full charge, with a built-in safety timer of 3.5H, charging terminated when battery voltage reach 6.1V threshold, accurate voltage measurements by using of pulse technique, compact, high efficient and low cost, LED indicate the charge status. The 6V nimh battery charger is backed by a 3 year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >60% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 3.2-6V |
Open Circuit Voltage | 6V±5% | |
Charge Current | 0.8A±5% | |
Battery Type | 4S cell 6v nimh battery pack | |
| Battery capacity recommended | 800mAH~2500mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL PSE | Certificate Number: E472300 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.09kgs |

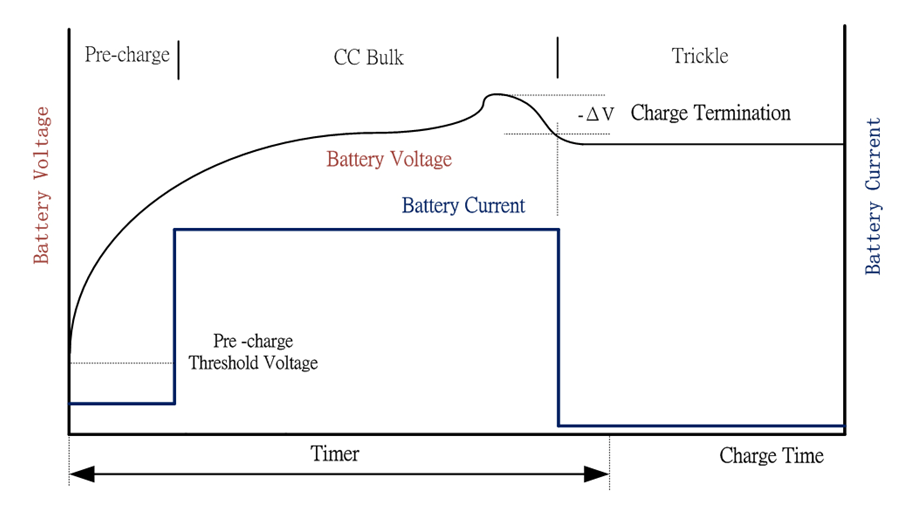

The cell charger for 6 volt nimh hump pack battery is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 6V nimh battery charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
Safety Certificates
