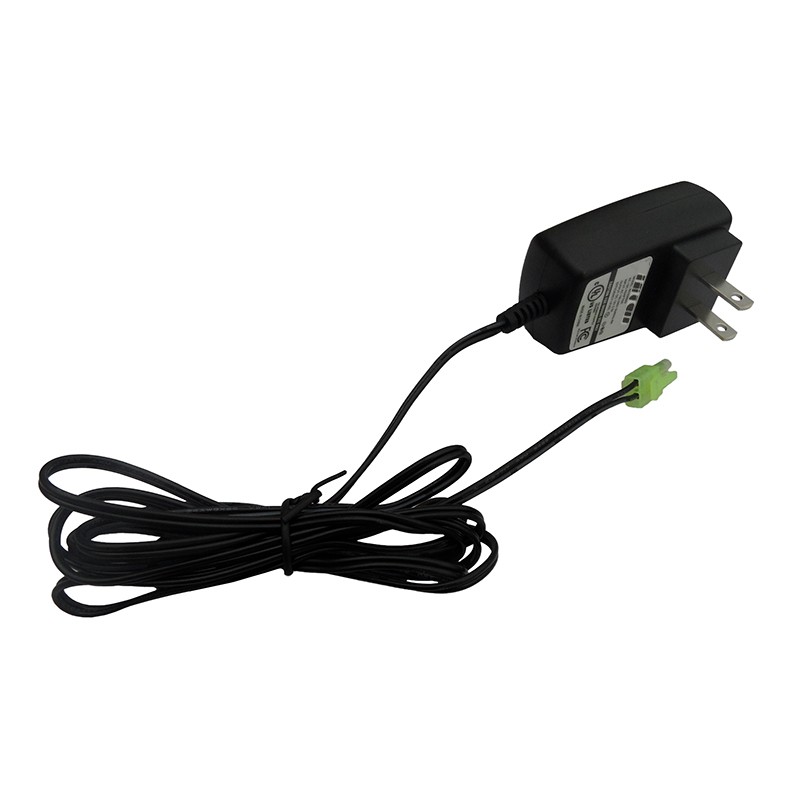

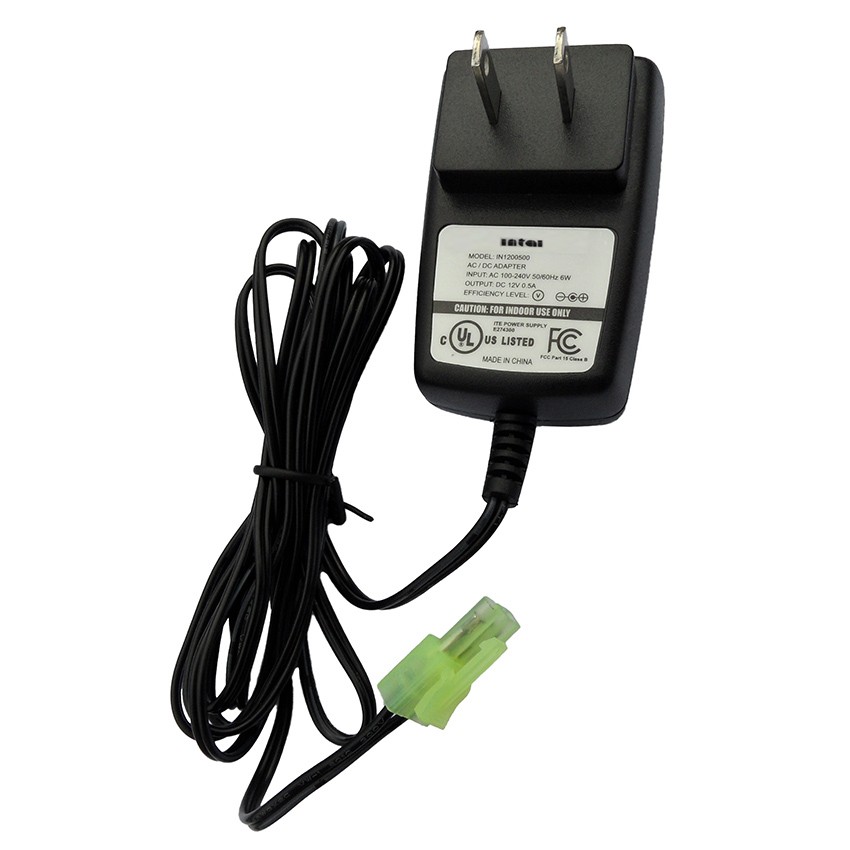

9.6V battery charger
Model :IN1200500
Output :12V 0.5A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
Smart MCU controlled 9.6V battery charger is available for 8S ni-mh battery packs with capacity around 1200mAH. The 9.6V nimh charger automatically cuts-off by negative delta V when battery packs get fully charged, and backed up with safety time to prevent over charge. The charger for 9.6V nimh battery will be running at 500 mA of current for fast but safe charging.
As one of our best-selling products for years, the 9.6 volt nimh battery charger has been proved to be of super quality with zero complaint rate from the market.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >60% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 6-12V |
Open Circuit Voltage | 12V±5% | |
Charge Current | 0.5A±5% | |
Battery Type | 8 cell 9.6 volt battery and charger NiMH battery | |
Battery capacity recommended | 800mAH~1600mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL PSE | Certificate Number: E472300 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.09kgs |

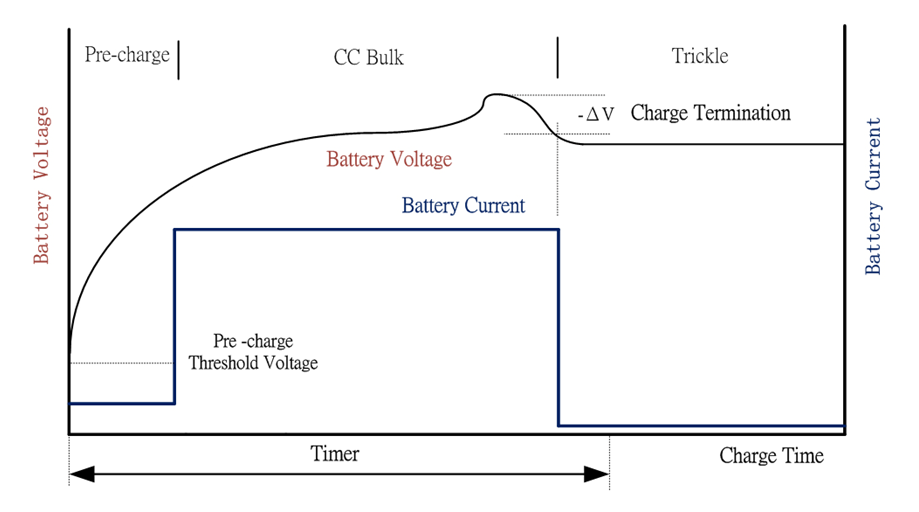

The 9.6 volt nimh battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the charger for the 9.6V nimh battery
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
