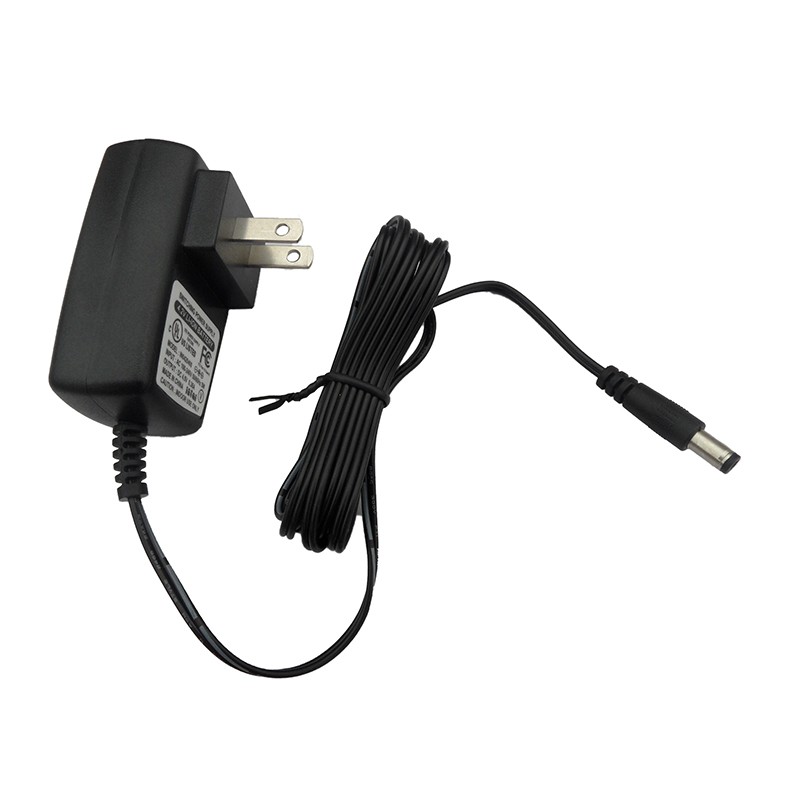

9V Regulated switching power supply
Model :IN0900500
Output :9V 0.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This wall mounted AC DC adapter 9V 0.5A is a primary side universal regulated switching power supply that provides a high-power-density and cost-effective solution for a variety of application field without optocoupler and secondary control circuitry. The 9V regulated switching power supply operates at a high switching frequency to achieve high efficiency in all load conditions, with an low total standby consumption and low output ripple and noise. Full protection functions improve the reliability including OCP, OVP, OLP, and effective thermal management enhances reliability further, allows the 9V power supply to operate at full power at high ambient temperatures. We also carry primary side regulation (PSR) switching adapter 9V 3A /2A /1A which can provide first-class regulation at competitive price.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 9V±5% |
Rated Current | 0.5A | |
Ripple & Noise | 100mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 1A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.08kgs |

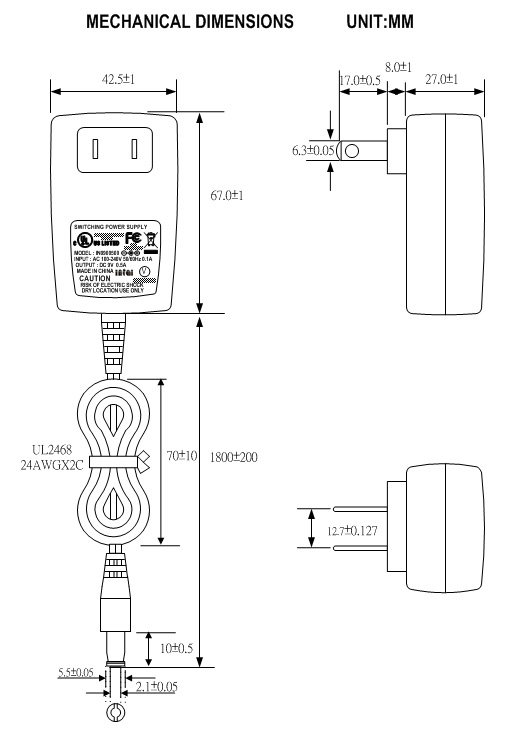

Product Dimension
Safety Certificates
