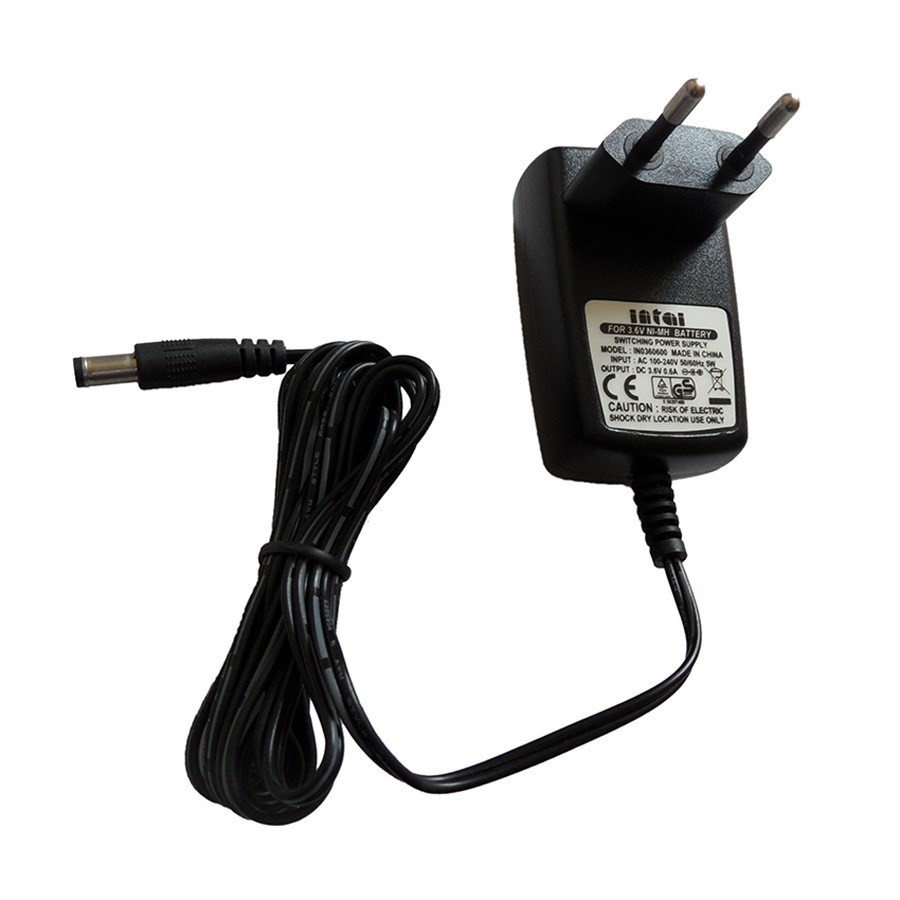

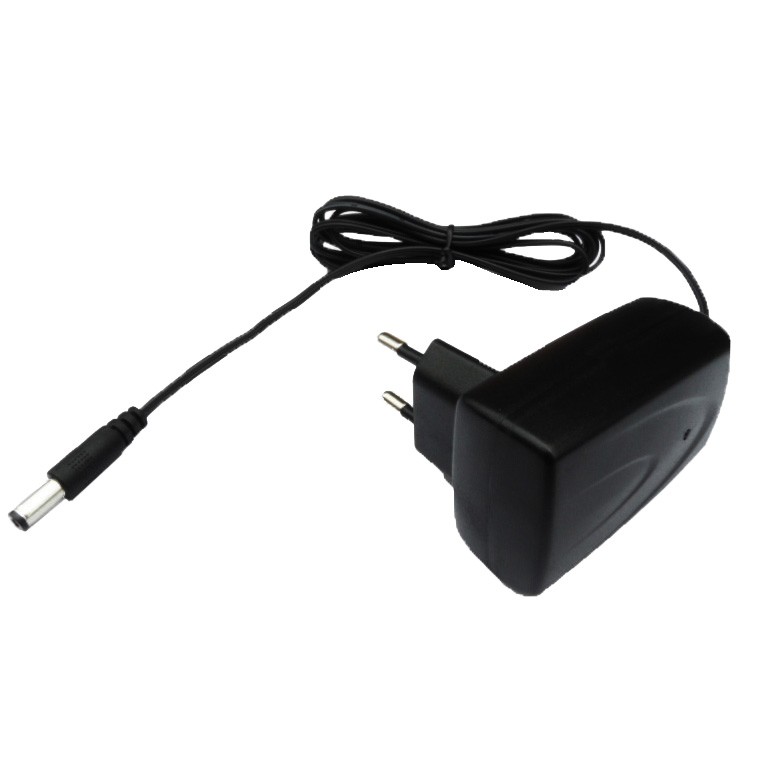

AAA battery charger
Model :IN0360600
Output :3.6V 0.6A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
The 3.6V NiMH AAA battery charger makes full use of modern algorithms to ensure high levels of performance and achieve a cost effective NiMH charging solution. The 3.6V battery charger AAA is designed to prevent overcharging by Negative Delta V detection and pulse charging and cut off current when batteries are full. Running at 600 mA of current for fast and safe charging a 3.6V NiMH battery pack, the 3.6V NiMH battery charger not only quickly charges the batteries, and to optimize the life of them.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >60% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 2-3.6V |
Open Circuit Voltage | 3.6V±5% | |
Charge Current | 0.6A±5% | |
Battery Type | 3S 3.6v nimh rechargeable battery pack | |
Battery capacity recommended | 800mAH~1600mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | CE | Certificate Number: 50079152001 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.09kgs |

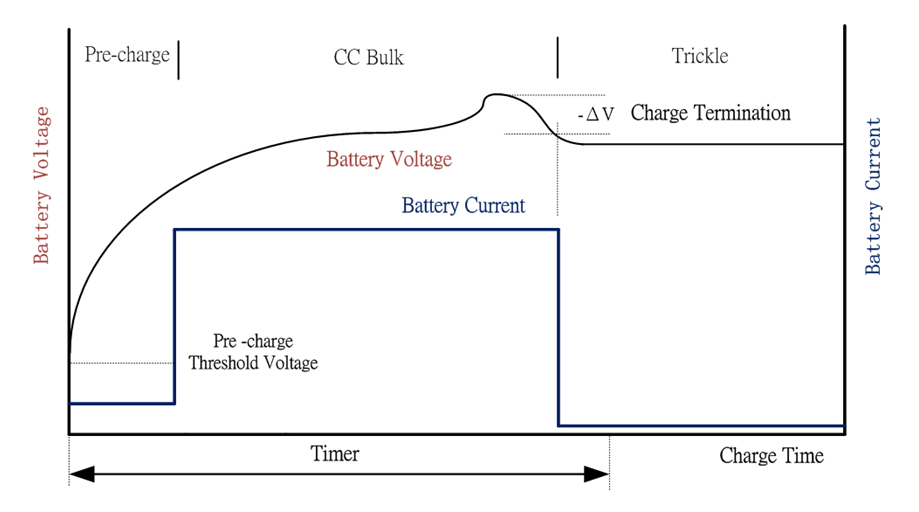

The 3.6v nimh battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the battery charger aaa
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
