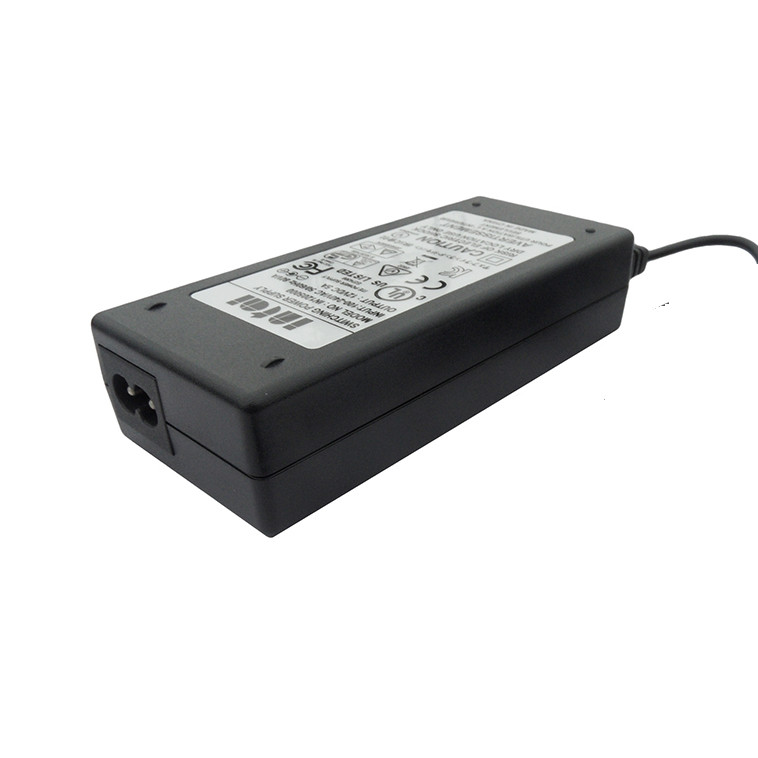

AC adapter 24V 3A

Model :IN2403000

Output :24V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This AC adapter 24V 3A employs latest technologies to achieve excellent regulation, high power density and safety with good EMI performance. The 24V 3A power adapter is designed to meet the latest energy saving recommendations (European CoC Ver. 5 Tier 2). The AC adapter 24 volt 3A is flyback topology based with green-mode power-saving operation, enables low standby power. The 24V 3A AC adapter features multiple protection functions including overvoltage, short-circuit, over current protection to prevent the circuit from being damaged in abnormal conditions. Effective thermal management enhances reliability further, allows the 24V 3A transformer to operate at full power at higher ambient temperatures.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	24V±5%
	Rated Current	3A
	Ripple & Noise	250mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

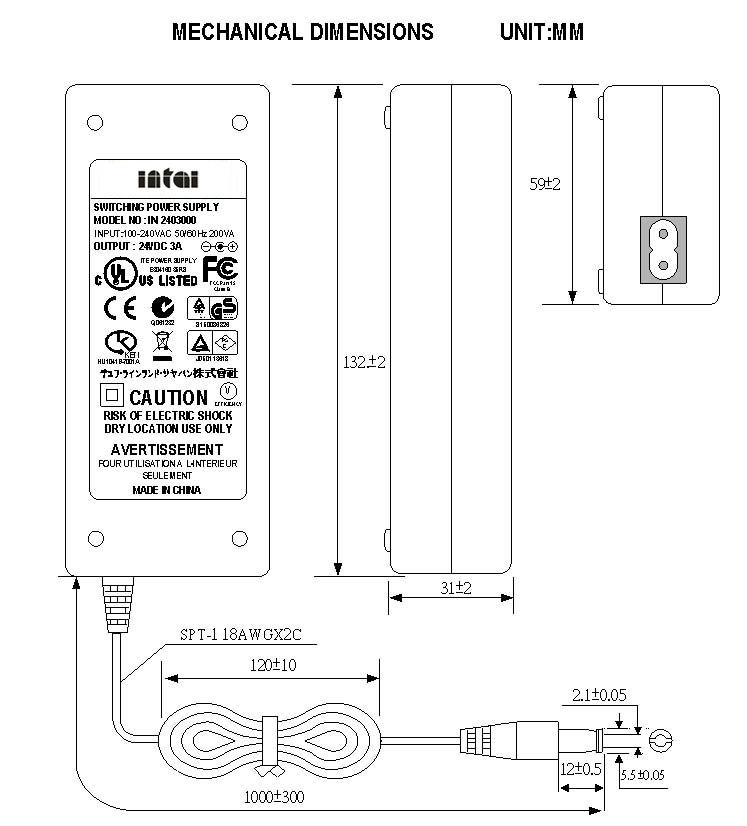

Product Dimension

AC adapter 24v

Safety Certificates

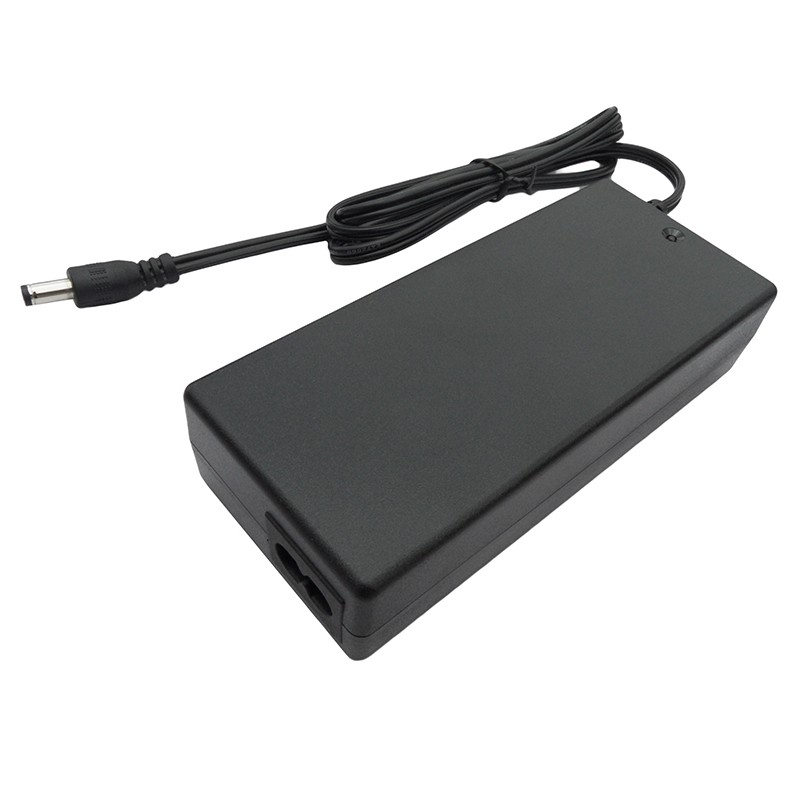

ac adapter 24 volt

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

24v 3a power adapter

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

AC adapter 24v
