AC DC adapter

Model :IN1203000

Output :12V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This AC DC adapter 12V 3A is built with the latest power supply technologies and the quality components materials to enable high performance. It features resonant-ring valley-switching operation for high operating efficiency, green-mode power-saving operation to achieve excellent energy efficiency performance. The AC DC adapter 12V output provides both constant voltage regulation and over-current protection. The ac/dc adapter provides excellent EMI performance working at 80-kHz Maximum switching Frequency, with fault protections to maximize the reliability. Effective natural cooling thermal management enhances operating performance and reliability, enables the AC DC power adapter 12V 3A to operate at full power at higher ambient temperatures.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	3A
	Ripple & Noise	120mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.2kgs

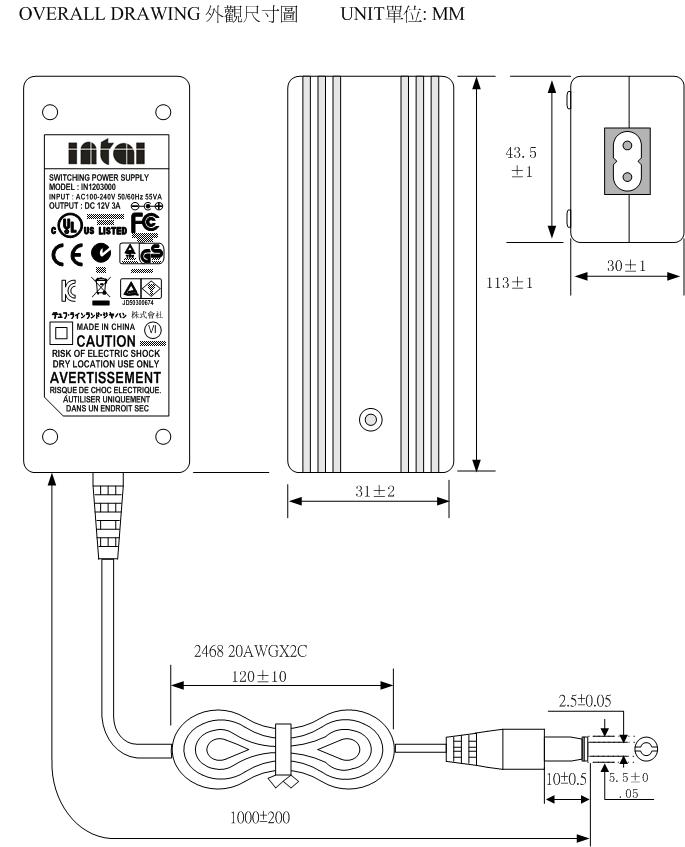

Product Dimension

ac dc adapter 12v 3a

Safety Certificates

ac dc adapter 12v output

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

ac/dc adapter

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

ac dc adapter 12v 3a
