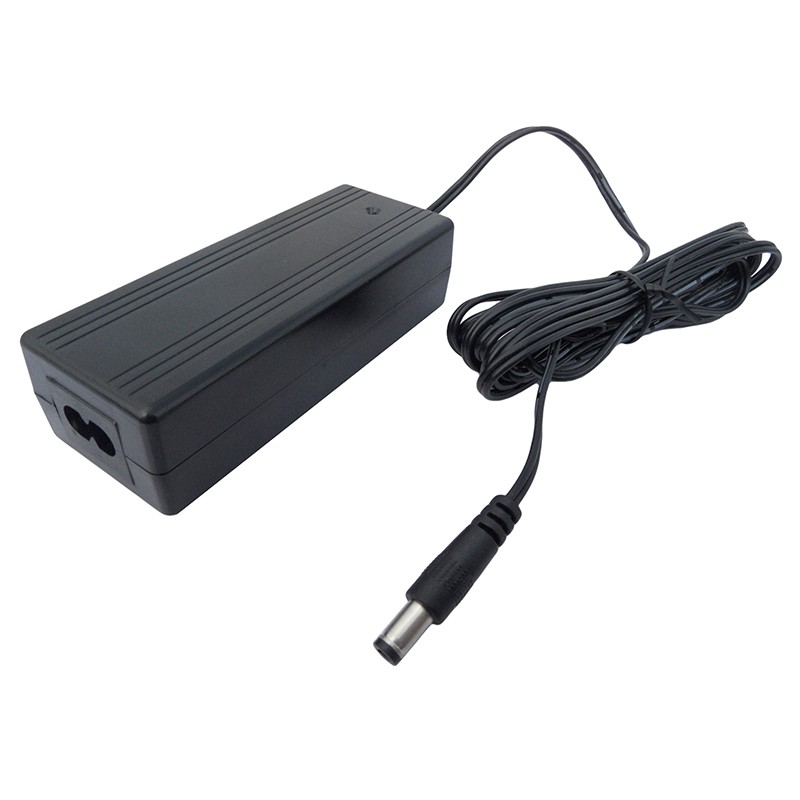

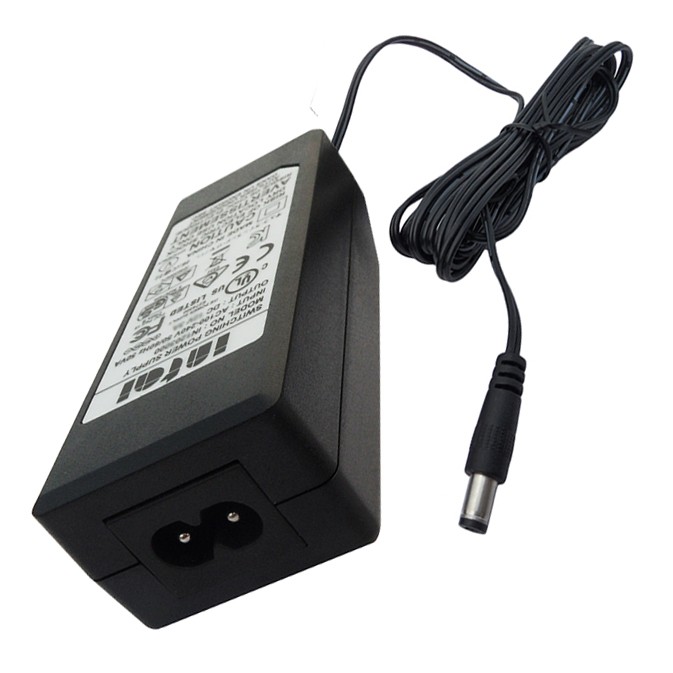

AC DC adapter 15V 3A

Model :IN1503000

Output :15V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The AC DC power supply 15V 3A provides accurate constant voltage (CV) regulation with High Power, Low Noise and Excellent Reliability. The 15V 3A power adapter is based on a flyback converter with offline PWM controller for low standby adapters, which has a compact and lightweight design with very high power density. The AC adapter 15V 3A features ambient temperatures of -20 to +45℃ and 50% power at +70℃ with off-load power draw less than 0.1W standby mode in compliant with DoE Level VI. The features enable high performance with compact profile - the 15V 3A AC DC converter measures 113 x 43.5 x 30mm.
The 15V AC to DC power supply offers excellent EMC performance. It is protected against destructive electrostatic discharge (ESD) and provides surge immunity against electrical overstress (EOS).
Efficient heat dissipation design significantly enhances reliability, allows the AC DC adapter 15V 3A to operate at full power in higher ambient temperatures (see our UL/TUV test reports).

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	15V±5%
	Rated Current	3A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

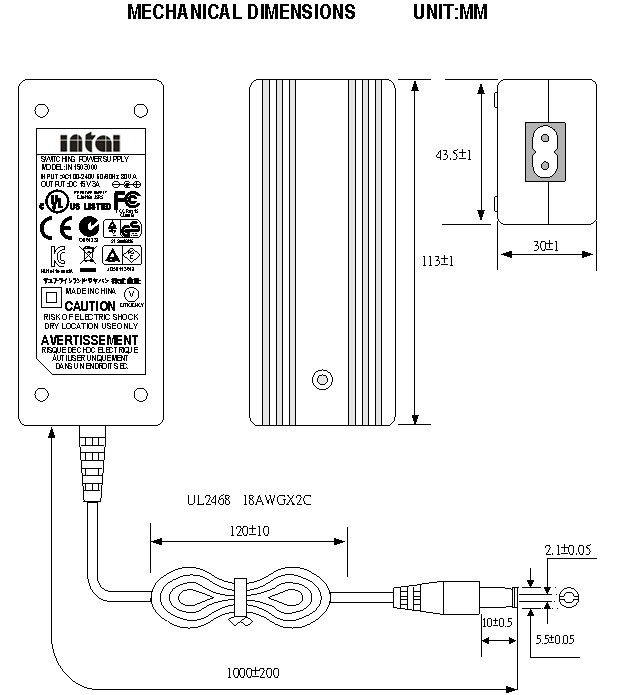

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
