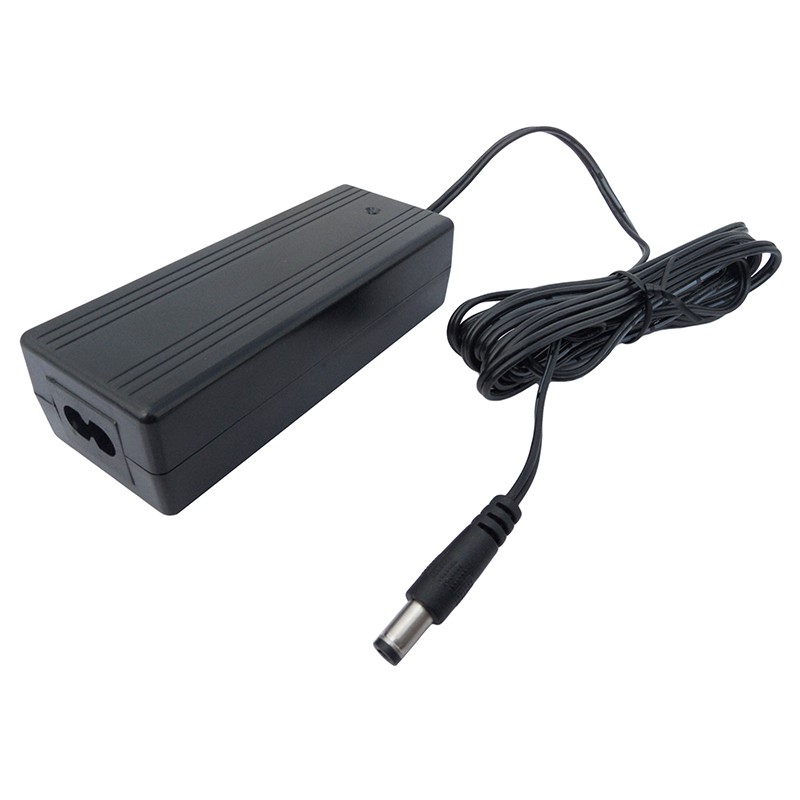

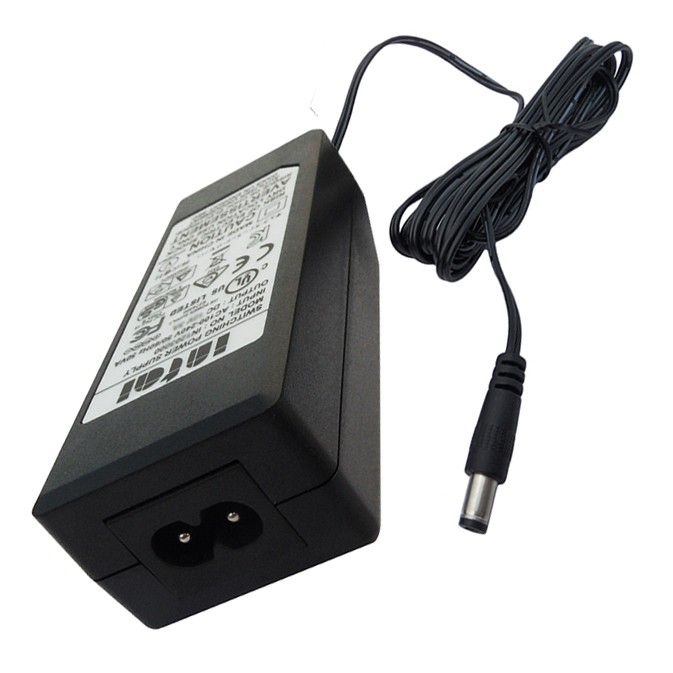

AC DC adapter 220V to 12V

Model :IN1204000

Output :12V 4A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This 12V 4A power adapter employs latest technologies to achieve excellent regulation, high power density and safety with good EMI performance. The 12V 4A adapter will improve efficiency to a level of 88% and reduce power consumption at standby mode, thereby contributing to reduce environmental burden. The AC DC adapter 12V 4A comes with compact size, low noise and high reliability and supports various demands from highly precise measurement devices. The AC DC adapter 220V to 12V features multiple protection functions to guarantee safe operation and reliability including OCP,OVP,OLP.. The 12V 4A AC/DC adapter is backed by a 3-year warranty.
The 12V AC power supply series is safety certified to IEC/UL/EN 60950-1 and carries the CE mark for the Low Voltage and RoHS Directives. The 12V series is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	4A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.2kgs

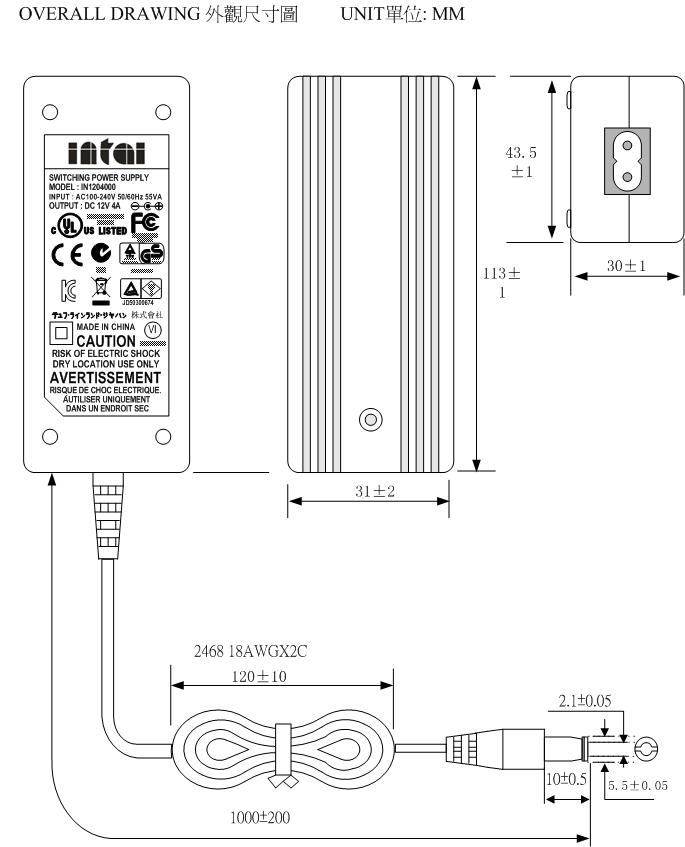

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
