AC DC adapter 29V

Model :IN2902000

Output :29V 2A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

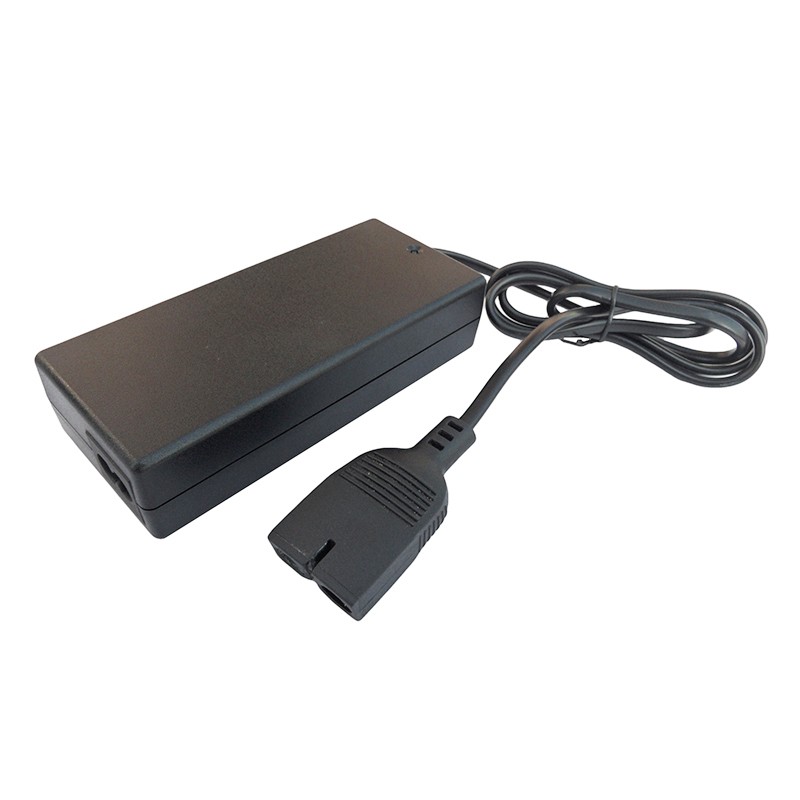

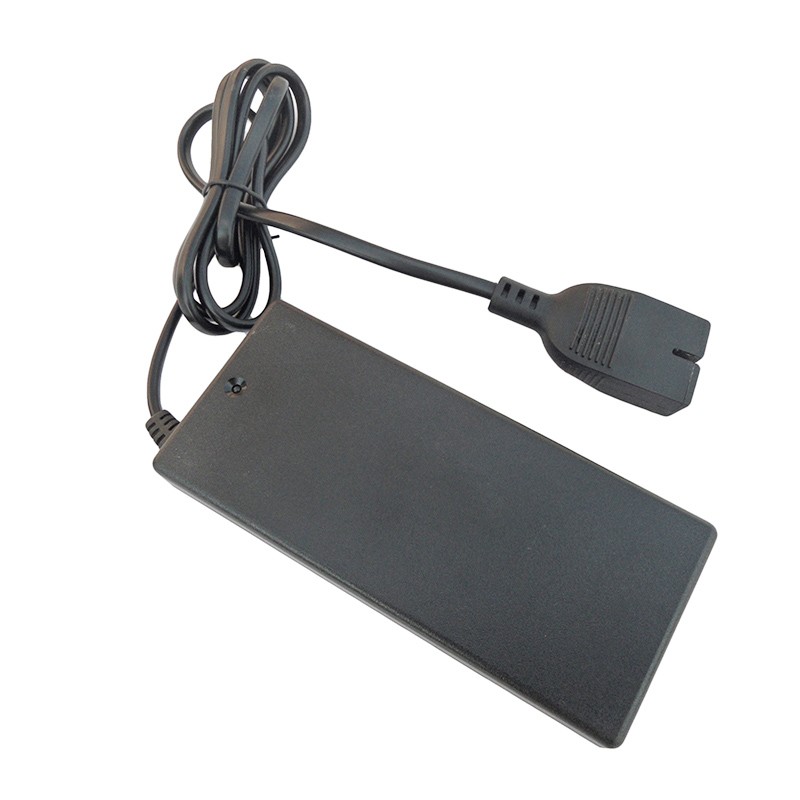

The AC DC adapter 100 240V 29V 2A operates from a universal input of 85-265Vac, which is built with the latest power supply technologies and the quality components materials to enable high performance. The 29V DC adapter series features Opto-Coupled Feedback Enables up to 2% Regulation, Resonant-Ring Valley-Switching Operation for High operating efficiency, Green-mode Power-Saving Operation. The AC DC adapter 29V measures 132 x 59 x 31cm with effective natural cooling thermal management. The power adapter 29V 2.5A offers excellent EMI performance. It meets EN55011-B conducted & radiated emissions and IEC 61000-6-2 and IEC 61000-4 immunity standards.
The 29V DC adapter family comes with 3 year warranty for a wide range of application field including 29V adapter for Christmas tree and 29.4V AC adapter for battery charging.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	29V±5%
	Rated Current	2A
	Ripple & Noise	300mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

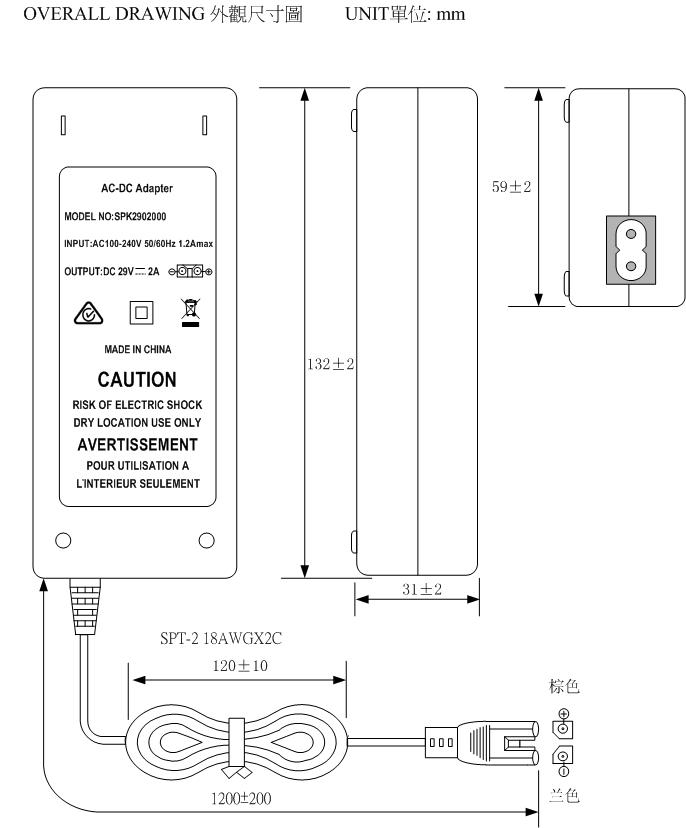

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
