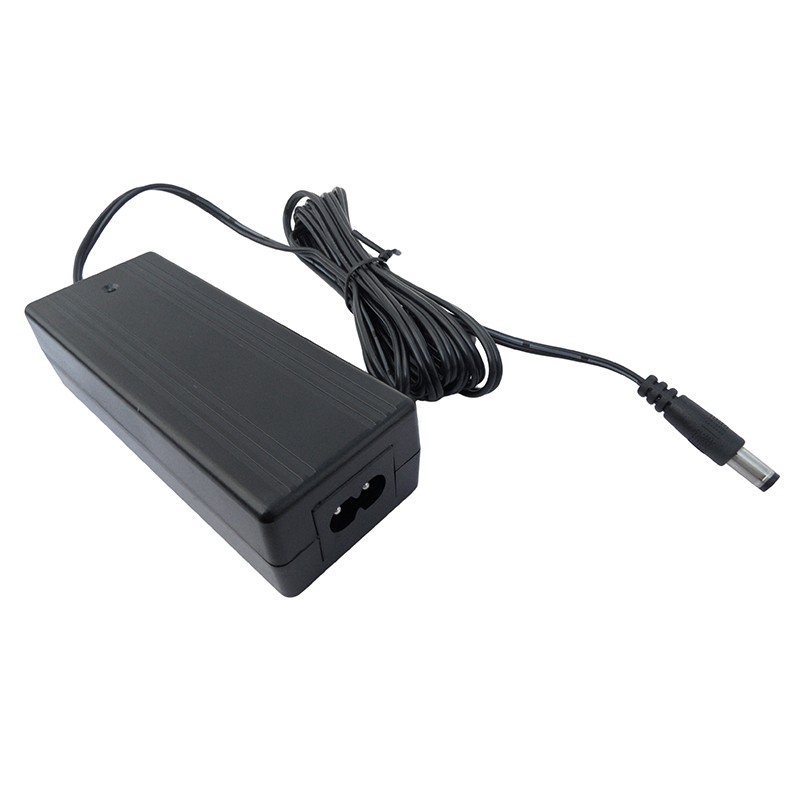

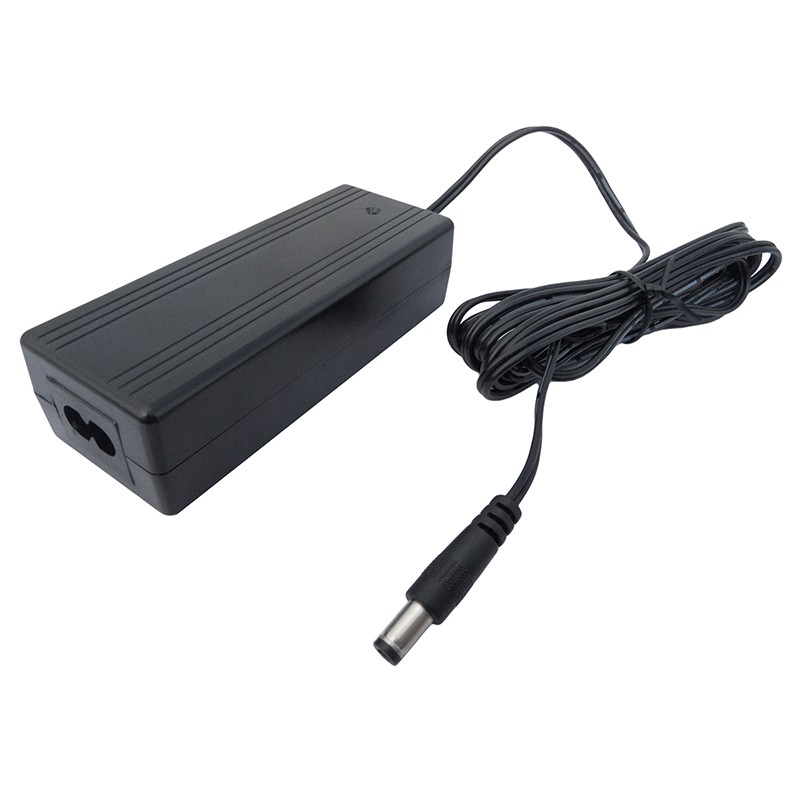

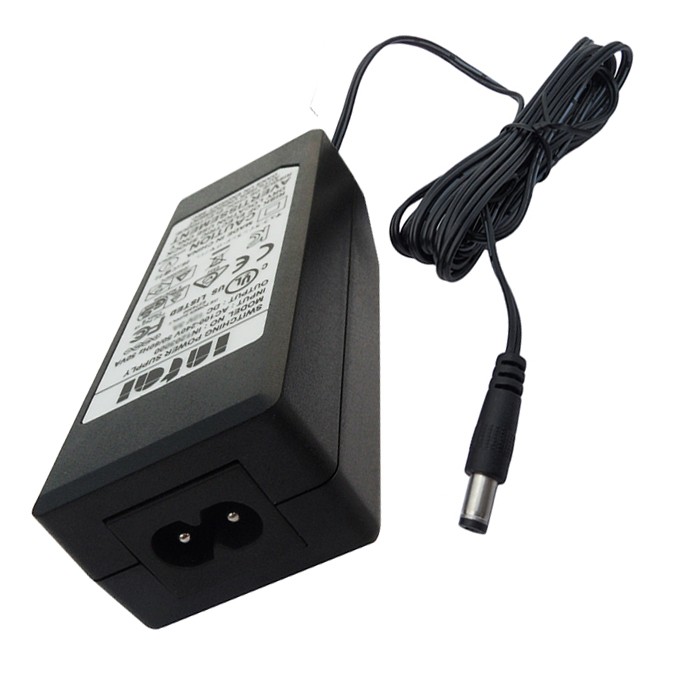

AC/DC power adapter
Model :IN1203000
Output :12V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This ac power adapter 12V 3A employs latest technologies to achieve excellent regulation, high power density and safety with good EMI performance. The universal 12V 3A power adapter provides high conversion efficiency, high PF and low total harmonic distortion (THD) over the universal input voltage. The AC/DC power adapter 12V is flyback topology based with green-mode power-saving operation, enables low standby power and compact design. The ac adapter output 12V 3A provides both constant voltage regulation and over-current protection. The 12V 3A power adapter features multiple protection functions to guarantee safe operation and reliability including OCP,OVP,OLP..
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 12V±5% |
Rated Current | 3A | |
Ripple & Noise | 120mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
IEC61000-4-11 | ||
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs |

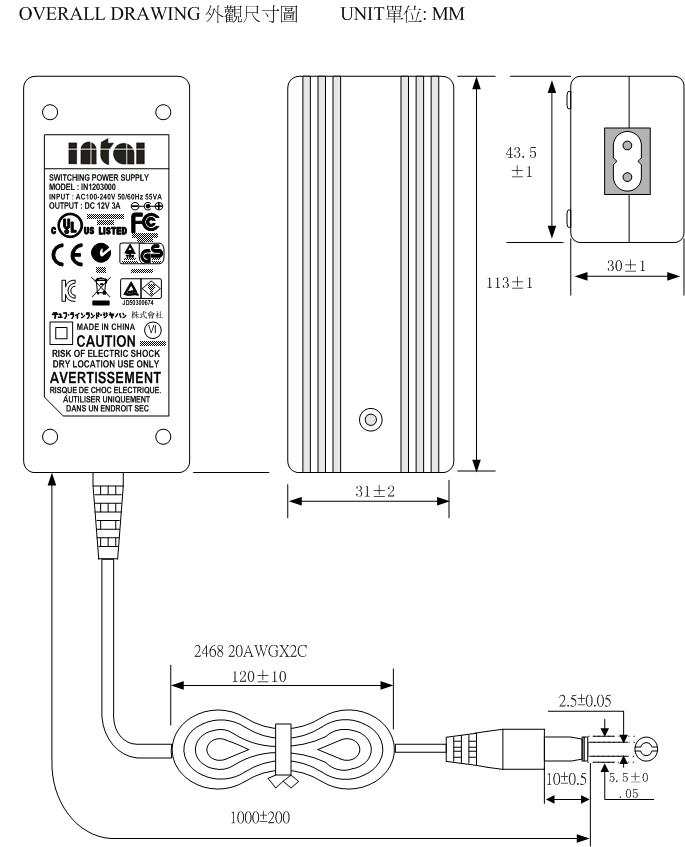

Product Dimension
