Adapter 220V 24V

Model :IN2404000

Output :24V 4A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The IN2404000 24V 4A power supply is built with the latest power supply technologies and the quality components materials to enable high performance. The 24V adapter accepts worldwide AC power source from 90-264Vac so it consists of adapter 120V 24V, adapter 220V 24V, adapter 240V 24V... High-frequency AC-to-DC flyback converter with green-mode power-saving operation enables high power density and lowest no-load power consumption, to comply with global efficiency standards including DoE Level VI and EU CoC V5 Tier-2. The adapter 220V 24V 3A incorporates a pair of U shaped internal heat sinks with precise sizes to achieve efficient natural convection cooling, enables higher operating temperatures and reliability (see our UL/TUV certification).

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	24V±5%
	Rated Current	4A
	Ripple & Noise	250mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.4kgs

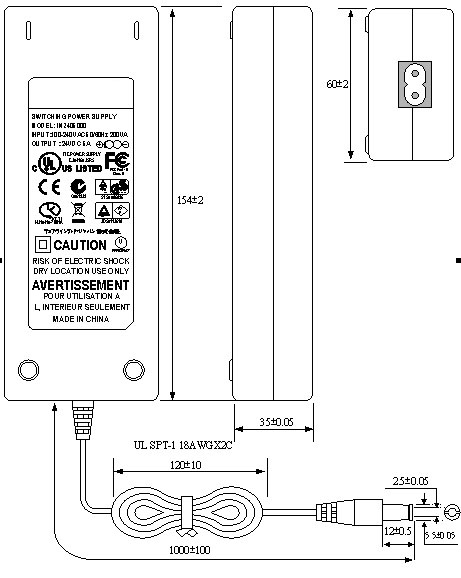

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
