Automatic 12V lead acid battery charger
Model :IN1506500
Output :14.7V 6.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This battery charger 12V 40ah lead acid batteries is powerful and durable. Microprocessor control makes it automatic and enables accurate charging process that gives batteries long life. High frequency current pulse is used to recondition batteries that are weak, sulfated or deeply drained. The automatic lead acid battery charger has protective electronics that automatically cut the battery with the charger circuit when the battery will become full charged, so the charger can be left connected for long periods.
Intai's business scope covers customized special chargers to fulfill customers' charging requirements including automatic sealed lead acid battery charger of high power density and high level of safety. Based on our deep understanding on the battery characteristics and charging technique, our R & D team has the ability to addresses the key challenges for battery charging applications such as safe charging, maximize battery capacity, minimize charge time.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 9-14.7V |
Open Circuit Voltage | 14.7V±5% | |
Charge Current | 6.5A±5% | |
Battery Type | Single cell Lead acid battery | |
Battery capacity recommended | 20AH~40AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The automatic 12V lead acid battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the auto battery chargers 12 volt 6.5 amp
Red |
|
Green |
|
Red flash |
|

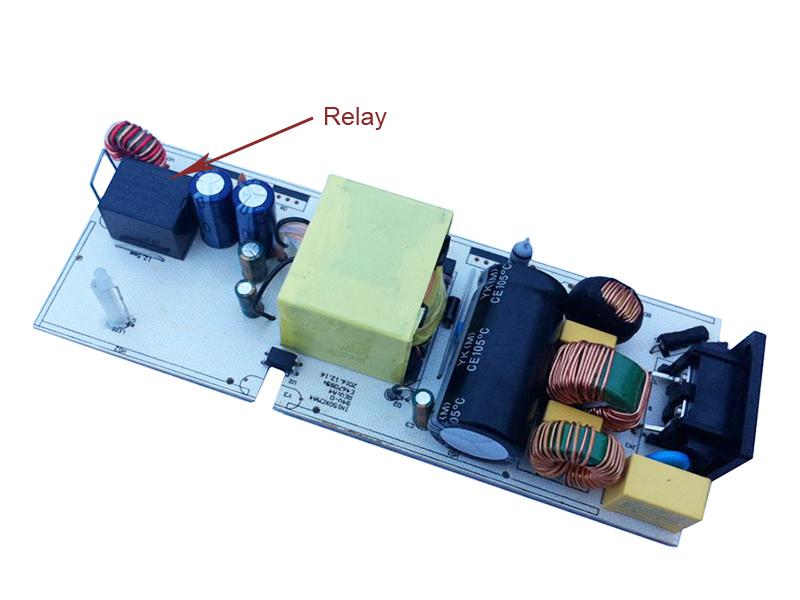

When the auto battery chargers 12 volt is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

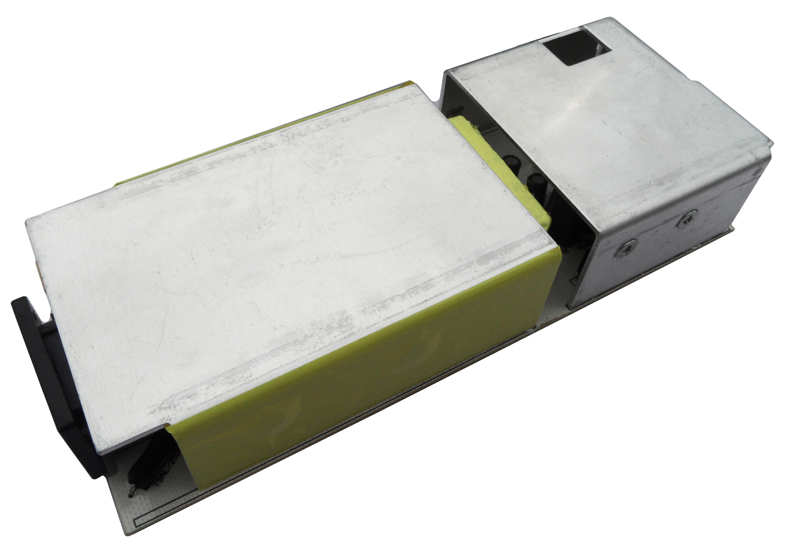

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 12V automotive battery charger works silently and safely. With the application of soft start technology, the output is spark free.

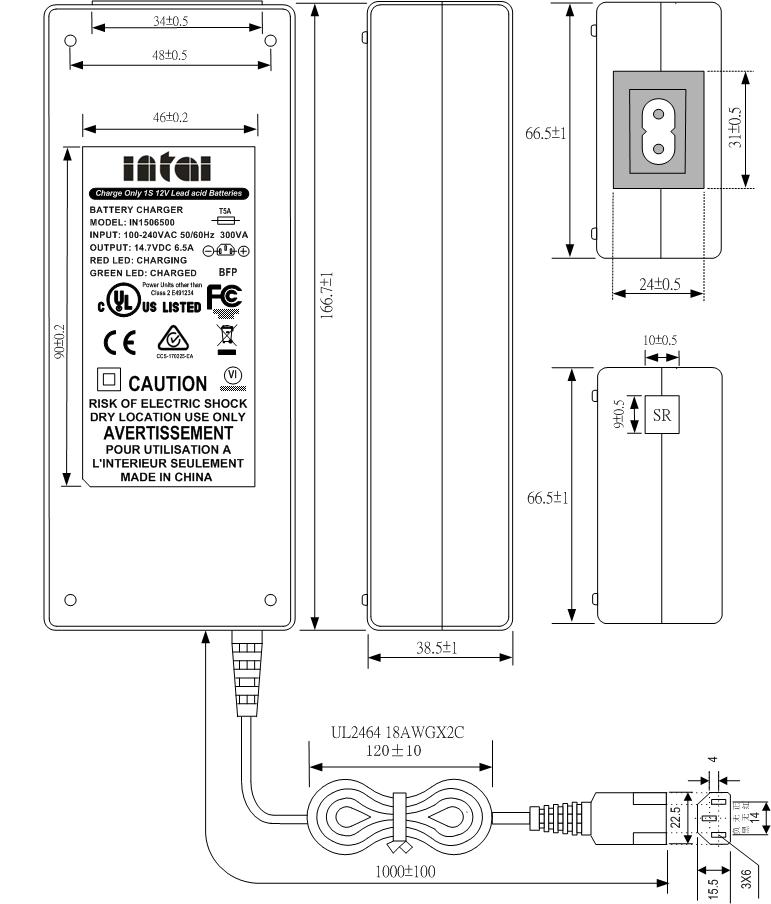

Mechanical Details(mm)
Safety certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
