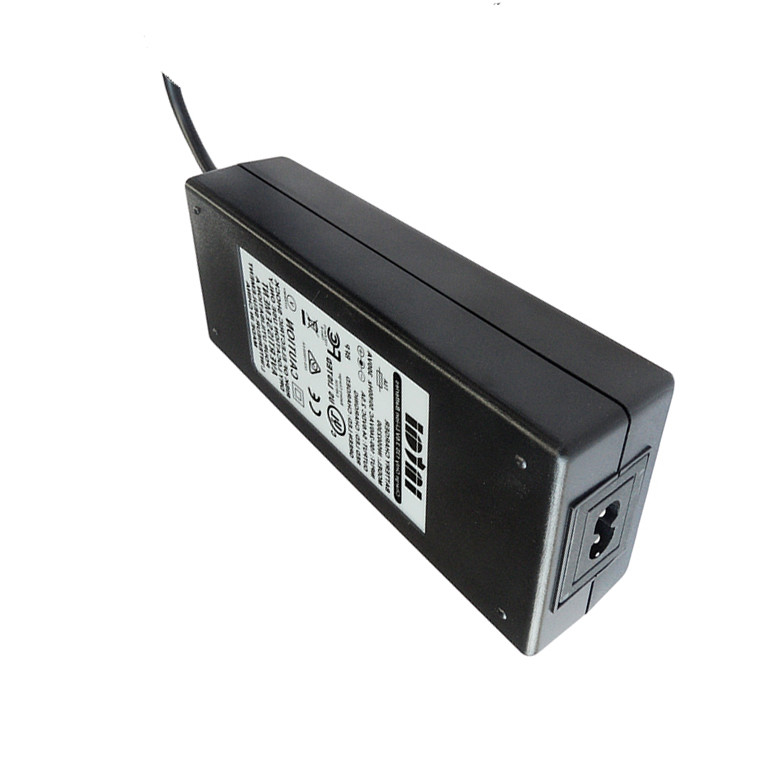

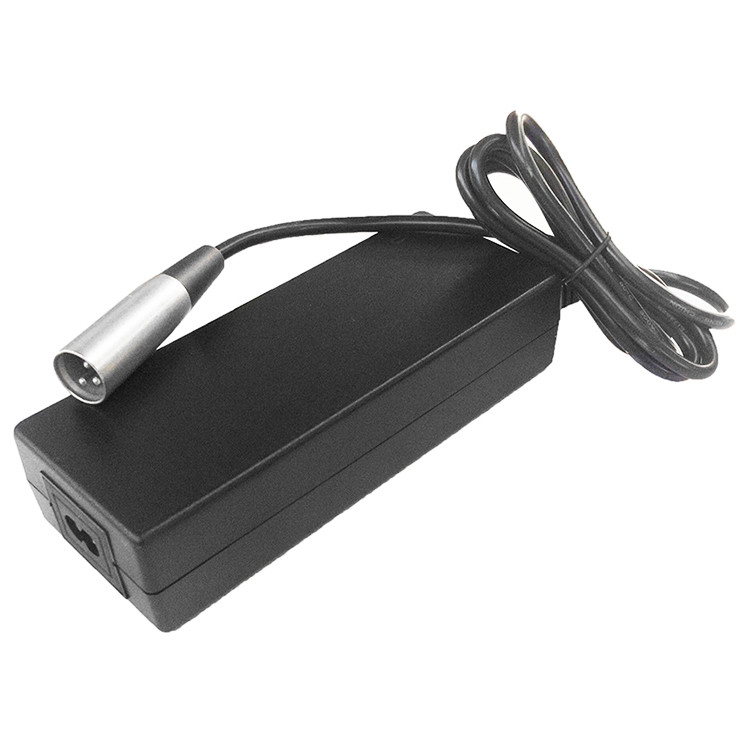

Automotive lithium battery charger
Model :IN1686000
Output :16.8V 6A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Having this powerful automotive lithium battery charger 16.8V 6A, you can power up a 14.8v lithium battery pack 18650 4S 20AH pack in 3 hours. It effectively charges batteries while protecting the batteries from over-charging. It is an auto shut off li-ion battery charger 14.8V- just charge the battery until the charger indicates that the charging is complete.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 10-16.8V |
Open Circuit Voltage | 16.8V±5% | |
Charge Current | 6A±5% | |
Battery Type | 14.8V li ion battery pack, 14.8V 16000mah 4S lipo battery | |
Battery capacity recommended | 10AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 14.8V li ion battery pack charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of The Charger for 14.8V 16000mAH 4S Iipo Battery
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

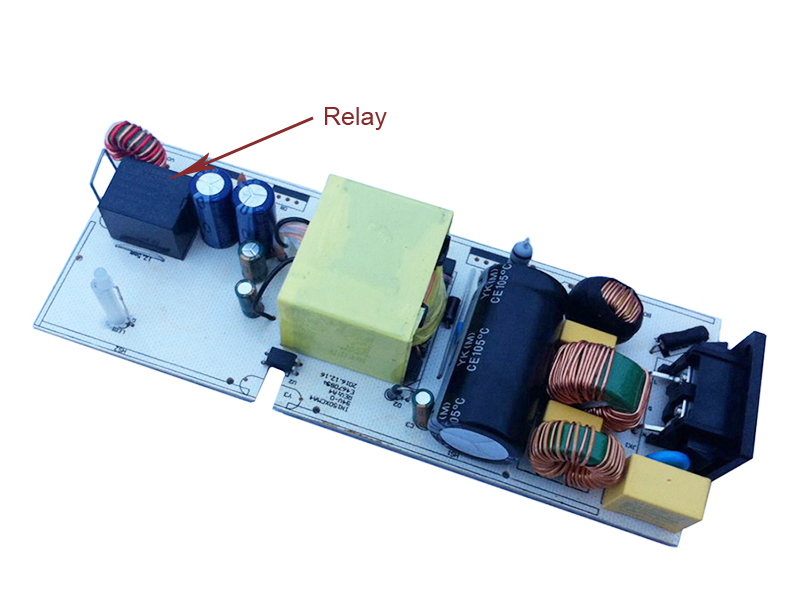

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

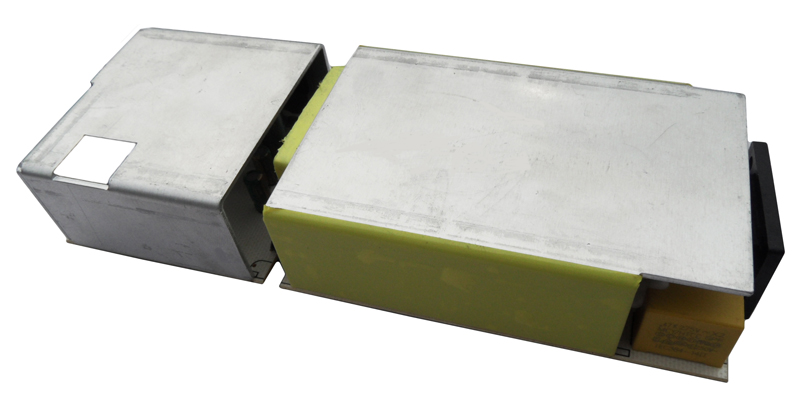

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The charger 16.8V works silently and safely. With the application of soft start technology, the output is spark free.

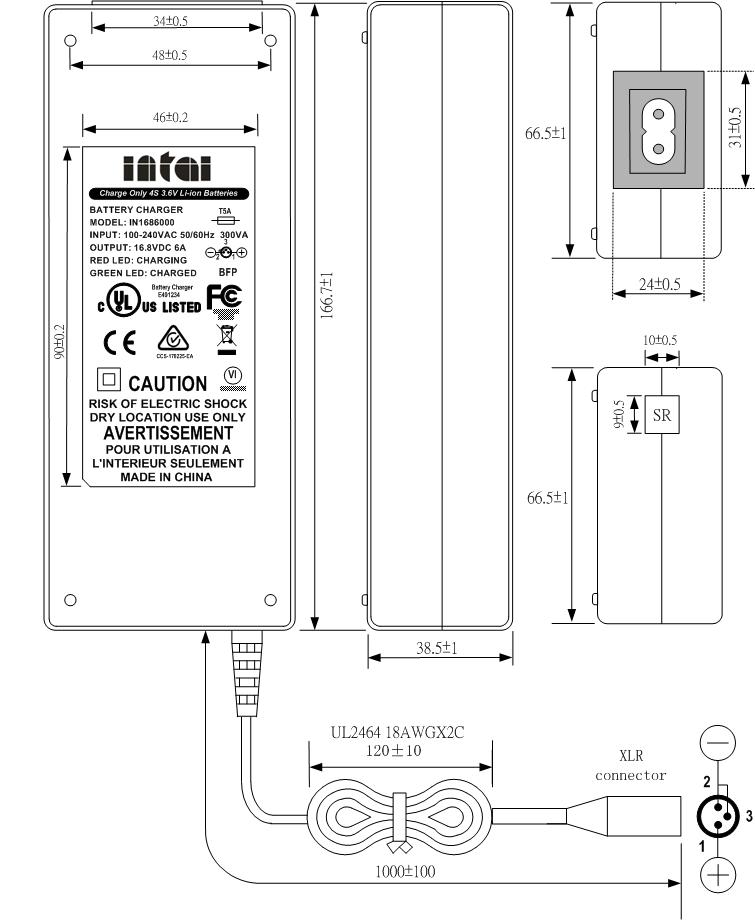

Mechanical Details(mm)
Safety Certificates
