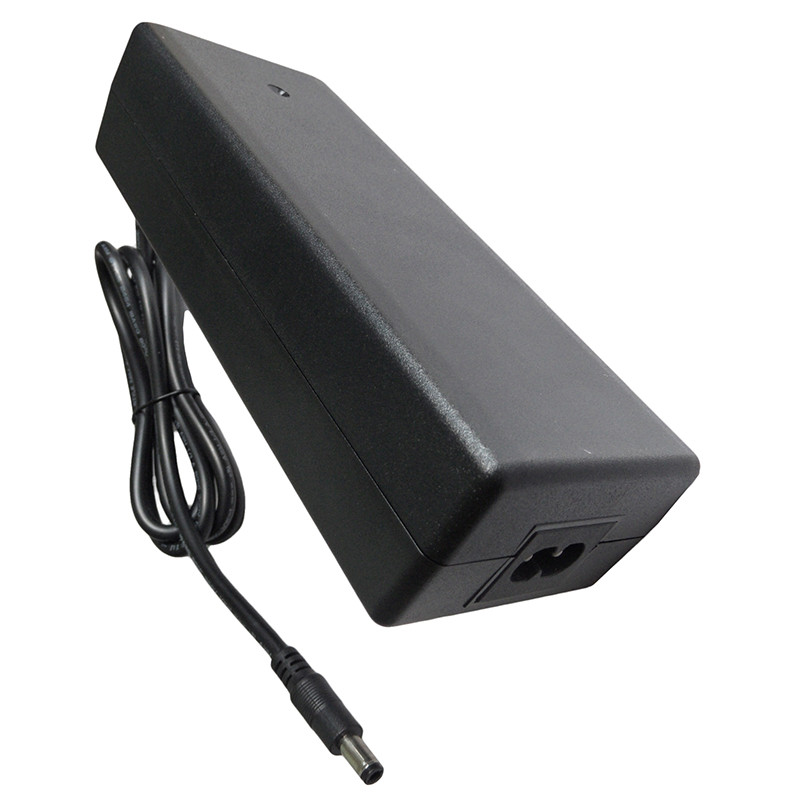

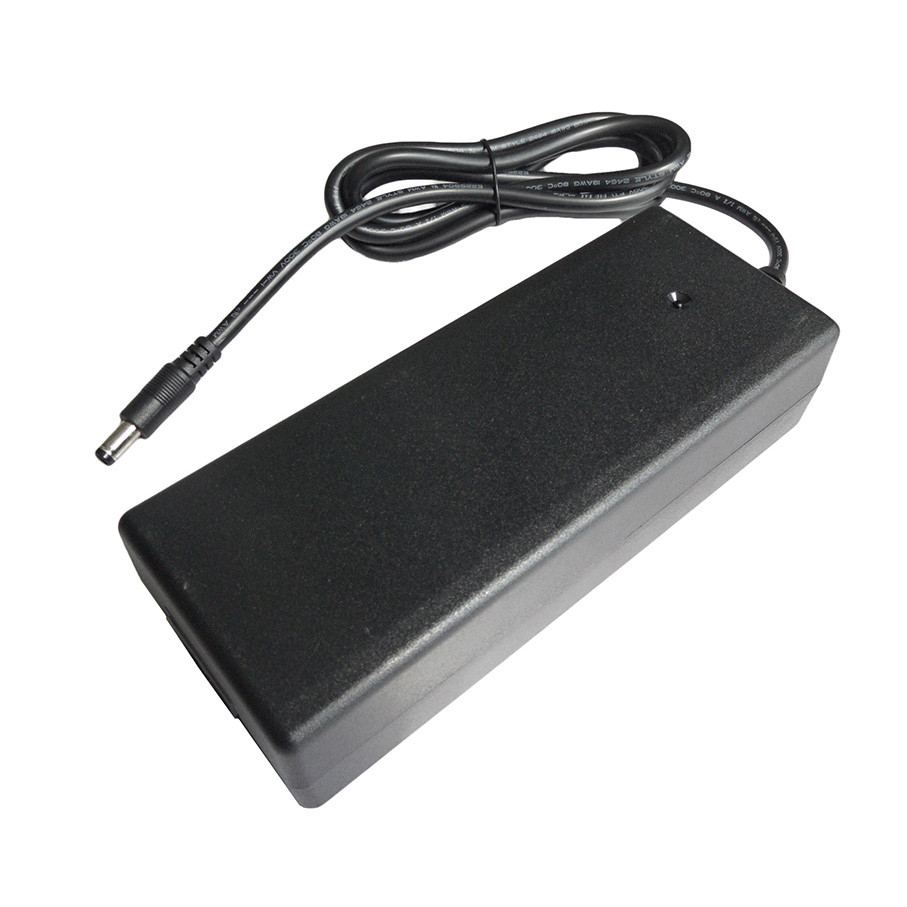

Battery charger 14.6V 5A
Model :IN1505000
Output :14.6V 5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The LiFePO4 battery charger 14.6V 5A quickly charges 4S cell lithium iron phosphate 12V pack, delivers the durable, reliable performance you need, providing a low-cost and high accuracy voltage regulation solution with full protection and charge status indication. The LiFePO4 smart charger effectively protects against over heat, fire hazards and electric shock. The IN1505000 14.6V LiFePO4 battery charger has been certified to the safety standards including UL/cUL1310 Class 2 Battery Charger, TUV/EN60335-2-29 and AS/NZS60335-2-29 Household and similar electrical appliances - Particular requirements for battery chargers. The 14.6V battery charger series is also compliant to EN 55014-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 9-14.6V |
Open Circuit Voltage | 14.6V±5% | |
Charge Current | 5A±5% | |
Battery Type | 4 cell lithium iron phosphate 12V | |
Battery capacity recommended | 20AH~50AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

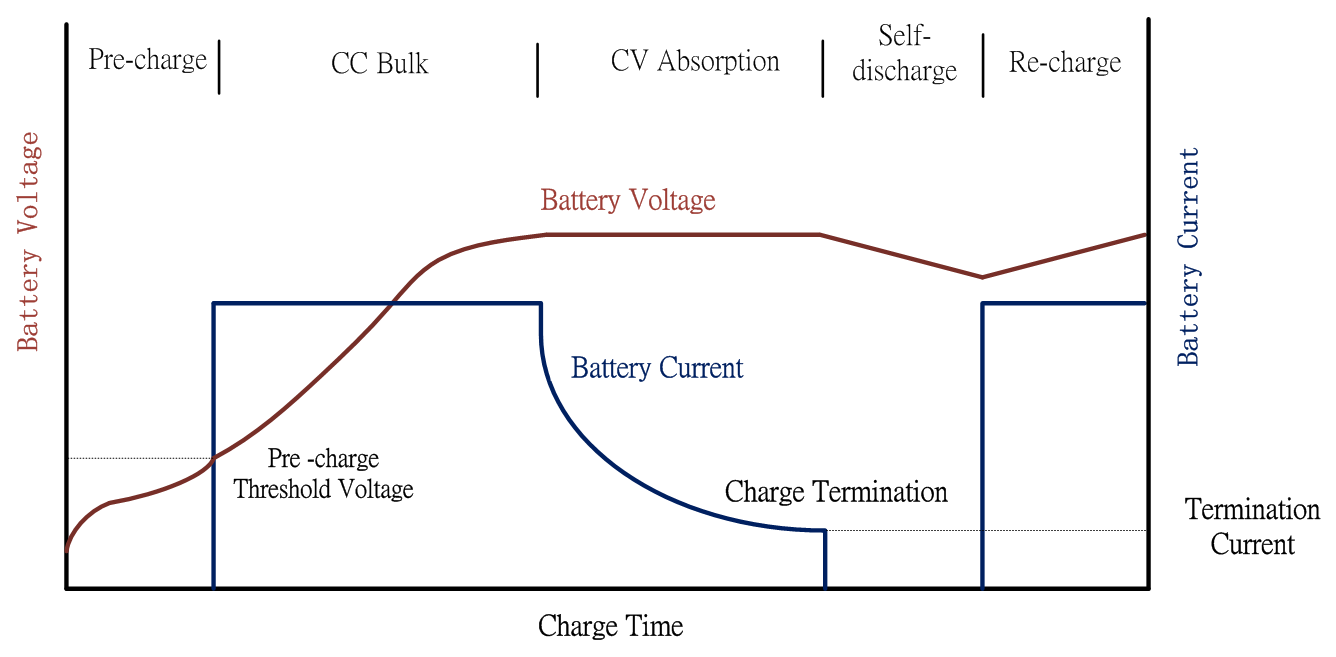

The 14.6V lifepo4 battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 14.6V battery charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
Red flash | Reverse connection with the battery Faulty battery Short circuit |

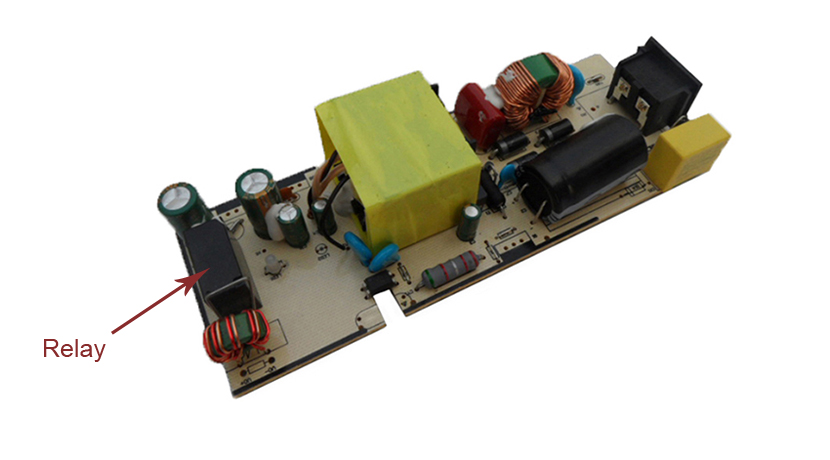

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

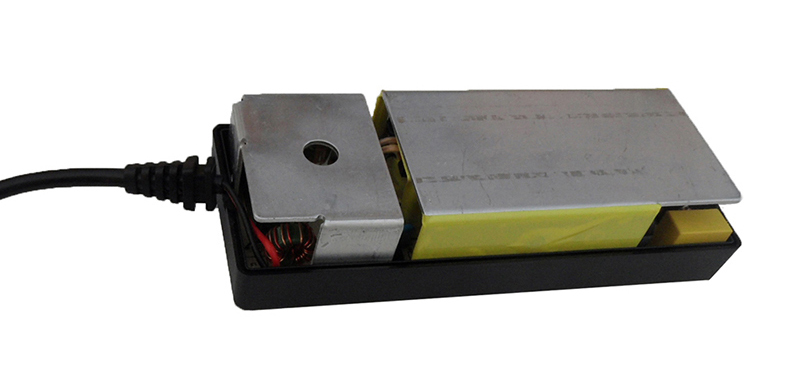

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The battery charger 14.6v 5a works silently and safely. With the application of soft start technology, the output is spark free.

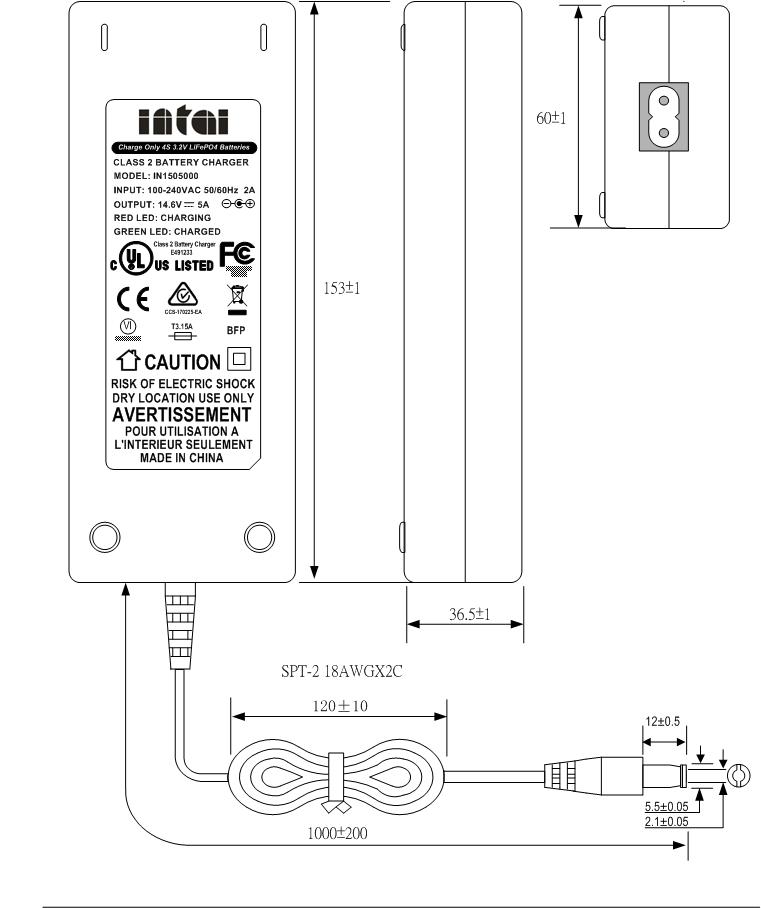

Mechanical Details(mm)
Safety certificates
