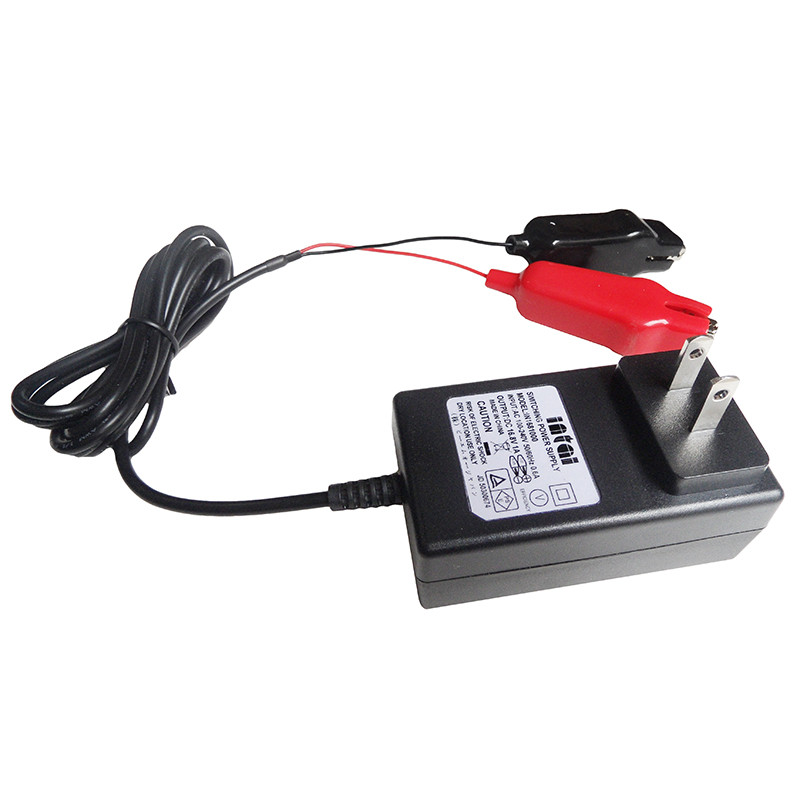

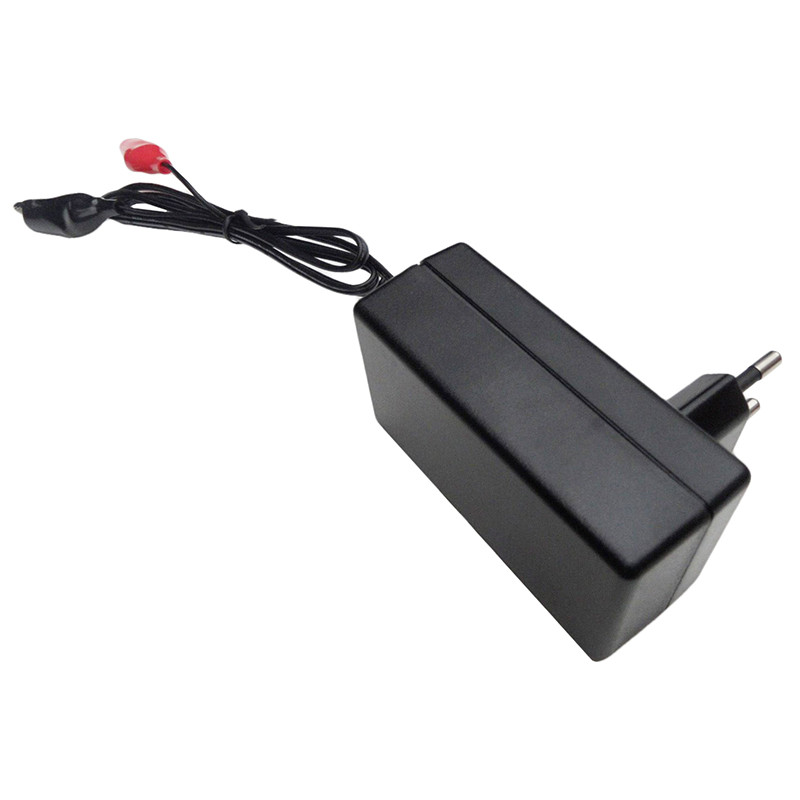

Battery chargers automotive 6 and 12 volt
Model :IN1201000
Output :6V/12V 1A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
The battery chargers automotive 6 and 12 volt is easy to use, safe and cost efficient which is designed to charge motorcycles, cars, boats, RVs, tractors and equipment that are not used for some time that equipped with 6V and 12V Lead Acid batteries. The battery charger 6 12V automatically identifies the battery voltage 6V or 12V and adjusts itself to correct charging voltage/current needs so it does not need to manually switch between 6V and 12V. The 6 12v battery charger is based on standard Lead-Acid charge algorithms: 3 stage with constant current, constant voltage and drops to a float charge when the battery is full, that enables the 6 12 volt battery charger left connected for long periods of time without the worry of overcharging the battery. While alligator clips connectors make it easy to adapt to different styles of battery posts, you do not have to worry about mis-operation because the car battery charger 6/12v protects against short-circuit, reverse connection, and other faulty conditions with auto recovery. The car battery charger 6V/12V is available for US, EU, AU, UK, JP plug head version.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 4-7.5V/14.7V |
Open Circuit Voltage | 14.7V±5% | |
Charge Current | 1A±5% | |
Battery Type | car battery 6V/12V | |
Battery capacity recommended | 5AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class II battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.12kgs |
The charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |

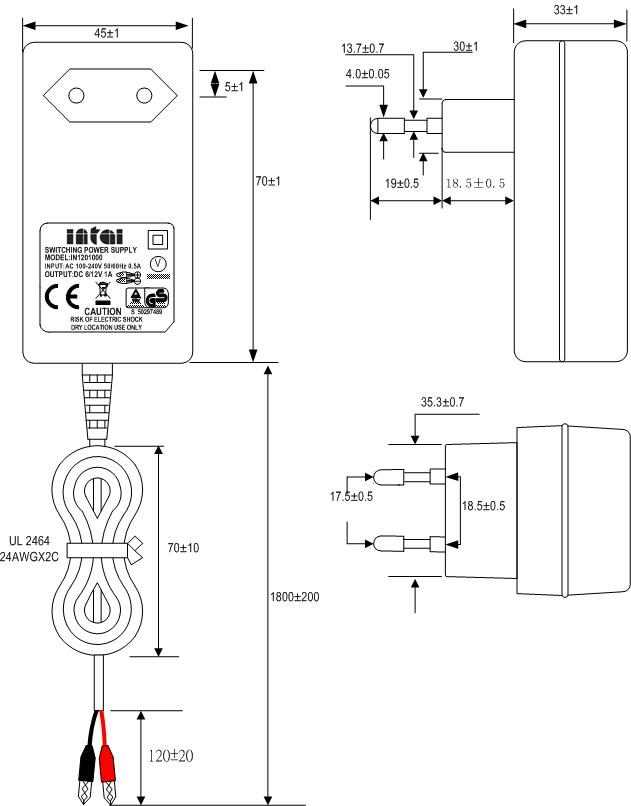

Mechanical details (mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
