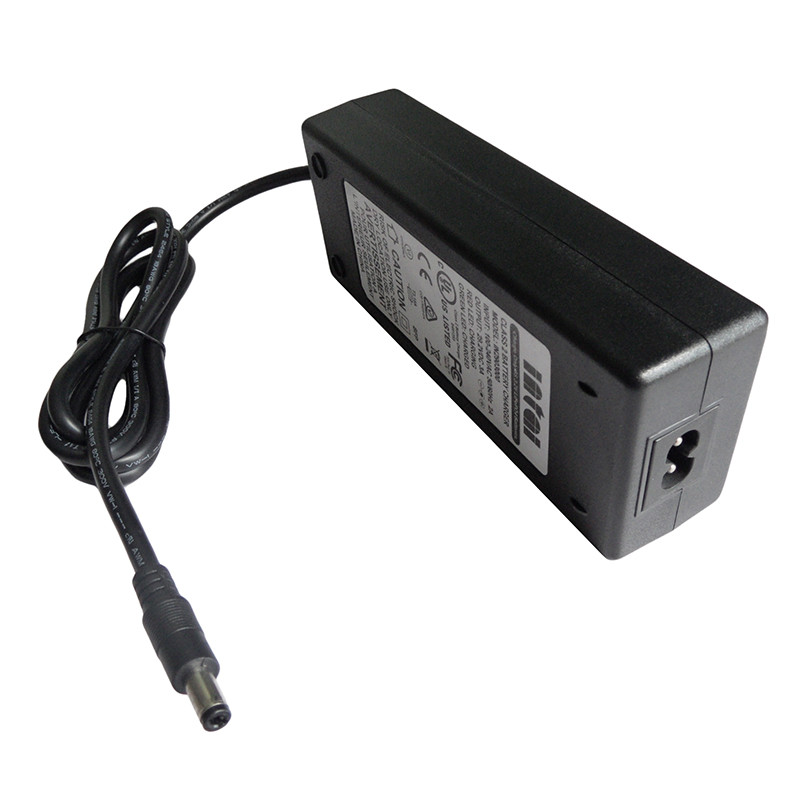

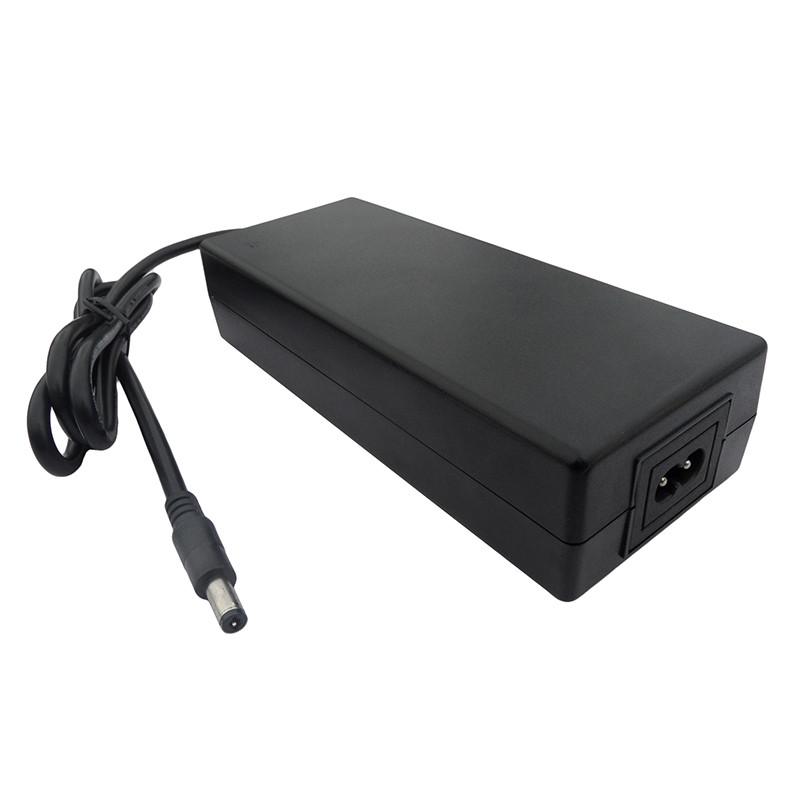

Class 2 battery charger

Model :IN2553000

Output :25.2V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

Intai manufactures a full range of Class 2 battery charger and UL class 2 power supply unit which attains North American UL/CSA certification to UL 1310 and CAN/CSA C22.2 NO. 223m, that allows to build cost effective power supply solutions with flexibility.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.5W
	Average Efficiency	>85%
	Power Factor (Typ)	>0.6
	Inrush Current	limited to 30A within 10ms at 264VAC ( Cold Start )
Output	Boost Charge Voltage	14-25.2V
	Open Circuit Voltage	25.2V±5%
	Charge Current	3A±5%
	Battery Type	6S cell Lithium-ion battery
	Battery capacity recommended	12AH~30AH
	Line Regulation	±2%
	Load Regulation	±5%
Protection	Back feed Protection(BFP)	Protected by internal circuit
	Reverse Polarity Protection	Protected by internal circuit
	Input Protection	3.15A current fuse
	Short Circuit Protection	Protected by internal circuit
Safety Certifications	UL/cUL1310 Class 2 battery charger	Certificate Number: E491233
	TUV/CE/LVD EN60335-1/2-29	Certificate Number: 50079152 001
	SAA+RCM/AS NZS60335-1/2-29	Certificate Number: CCS-170225-EA
EMC	Emissions	EN55014, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-10℃~40℃
	Storage Temp	-20℃~80℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.4kgs

The 25.2V 3A class 2 power unit is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.

class 2 power supply

Charge Status Indicator of The UL Class 2 Power Supply 25.2V 3A

Red

● Charging or disconnect form the batteries

Green

● Batteries fully charged

Red flash

● Reverse connection with the battery

● Faulty battery

● Short circuit

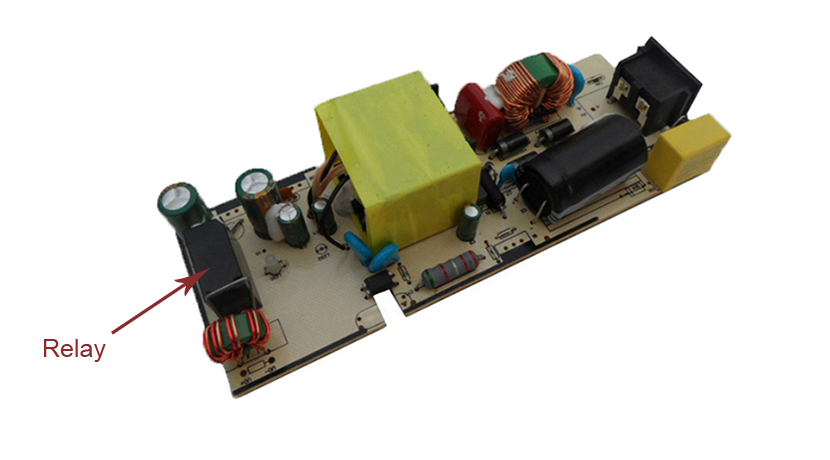

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

class 2 power unit

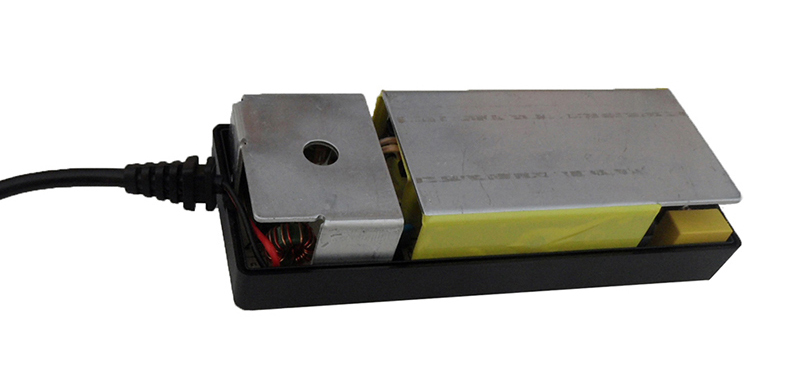

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.

ul class 2 power supply

The class 2 power supply 120V works silently with low noise. Soft start enables the output spark free.

class 2 power supply

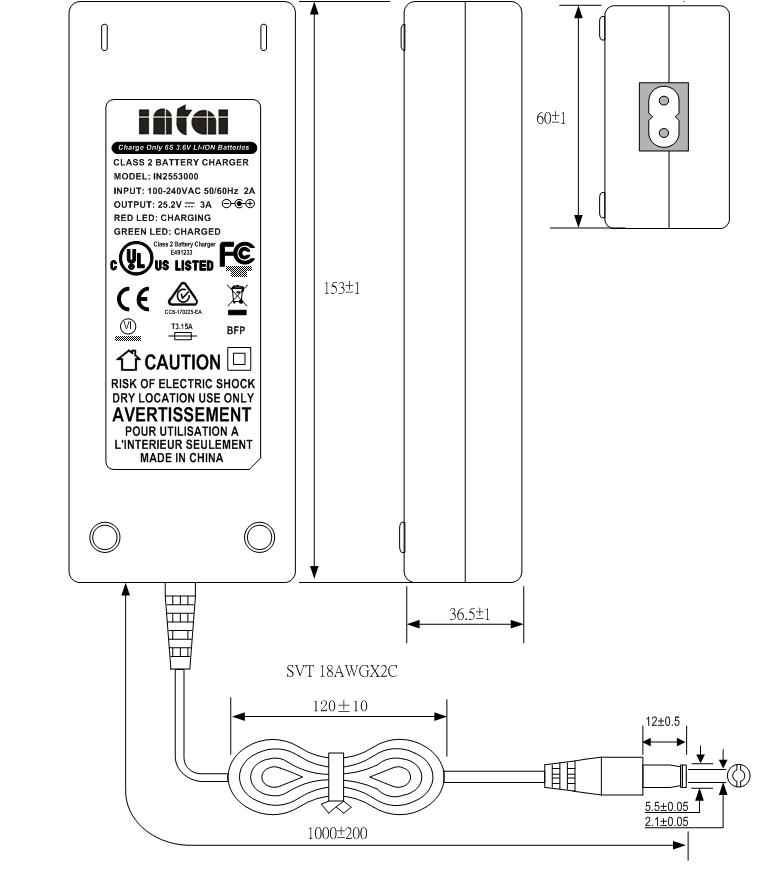

Mechanical Details(mm)

class 2 power unit

Safety Certificates

ul class 2 power supply

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

class 2 power supply

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
