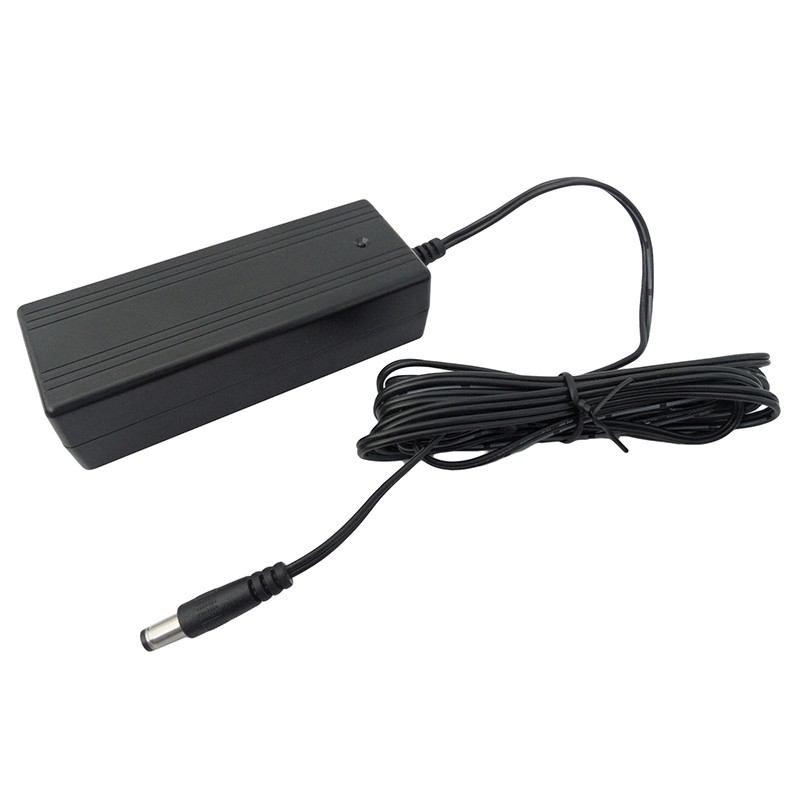

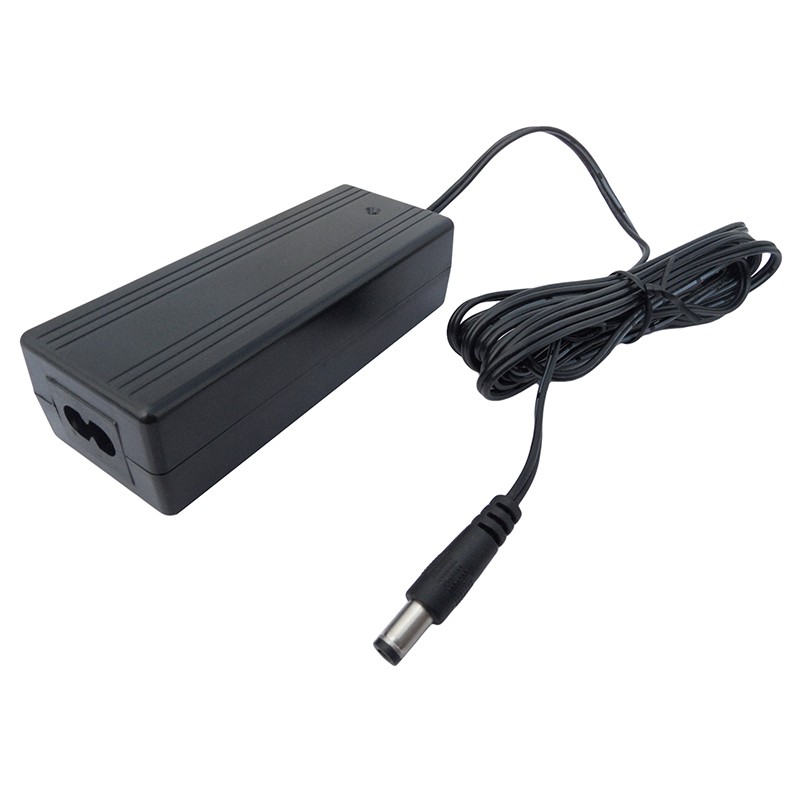

Constant voltage LED driver
Model :IN4200700
Output :42.5V 0.7A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai Power Supply Co Ltd introduces the 30 watt led driver constant voltage SAA/RCM/UL/CSA/CE/PSE certified. The UL led driver 42V features highly–accurate regulation to provide a high level of light quality and avoid flickering. It provides good EMC, high conversion efficiency, high PF and low total harmonic distortion (THD) over the universal input voltage. The constant voltage LED driver offers an efficient, compact and cost effective solution to drive LEDs with a designed MTBF better than 40000 hours at full load.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 42.5V±5% |
Rated Current | 0.7A | |
Ripple & Noise | 450mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs |

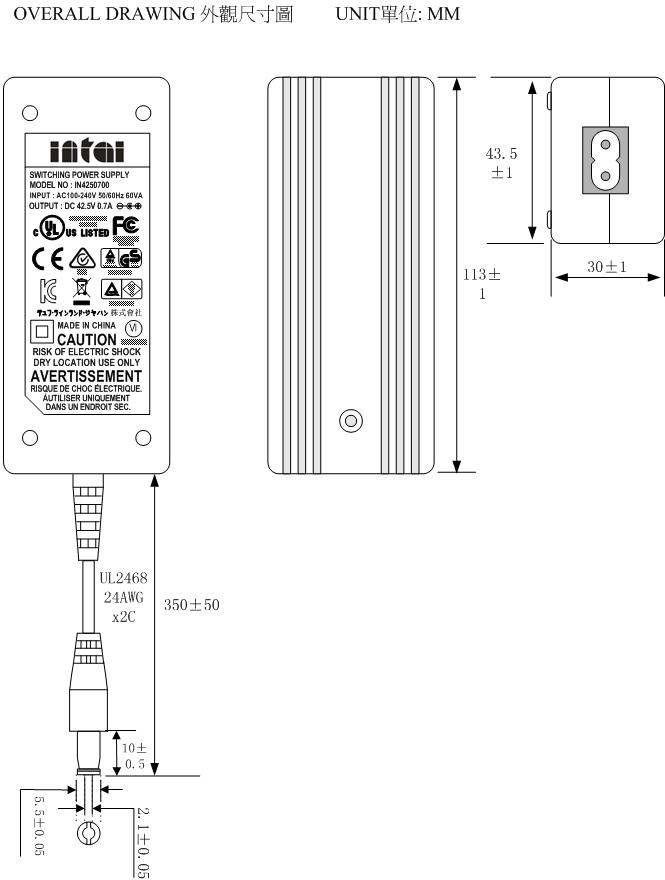

Product Dimension
Safety Certificates
