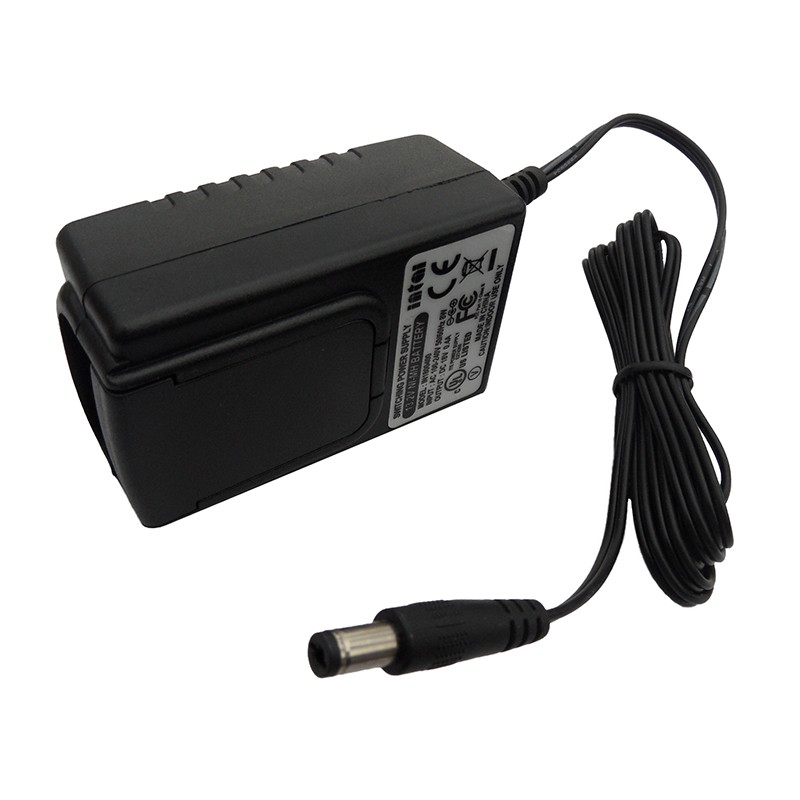

Exchangeable plug charger
Model :IN1500300
Output :15V 0.3A
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
Intai introduces this best NiMH battery charger AA which comes with US, EU, AU, UK exchangeable plugs that for travelling in various counties. This 12 volt NiMH battery charger is suitable for 2200mAH 10 cell 12 volt NiMH pack. Likes our other AA battery charger, it makes use of sophisticated algorithms to optimize cell performance.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >70% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 9.6-15V |
Open Circuit Voltage | 15V±5% | |
Charge Current | 0.3A±5% | |
Battery Type | 10S 12V NiMH battery | |
Battery capacity recommended | 800mAH~1600mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL PSE | Certificate Number: E472300 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.12kgs |

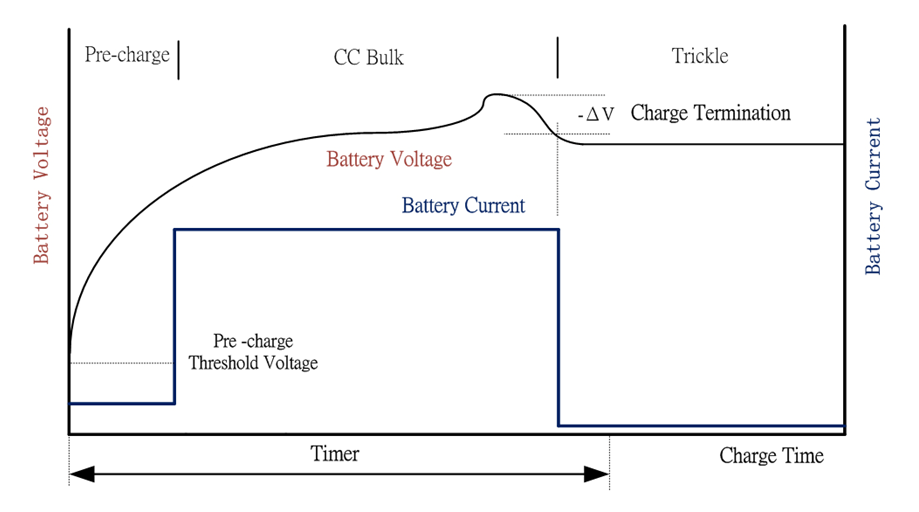

The 12v battery recharger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the battery charger AA
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
