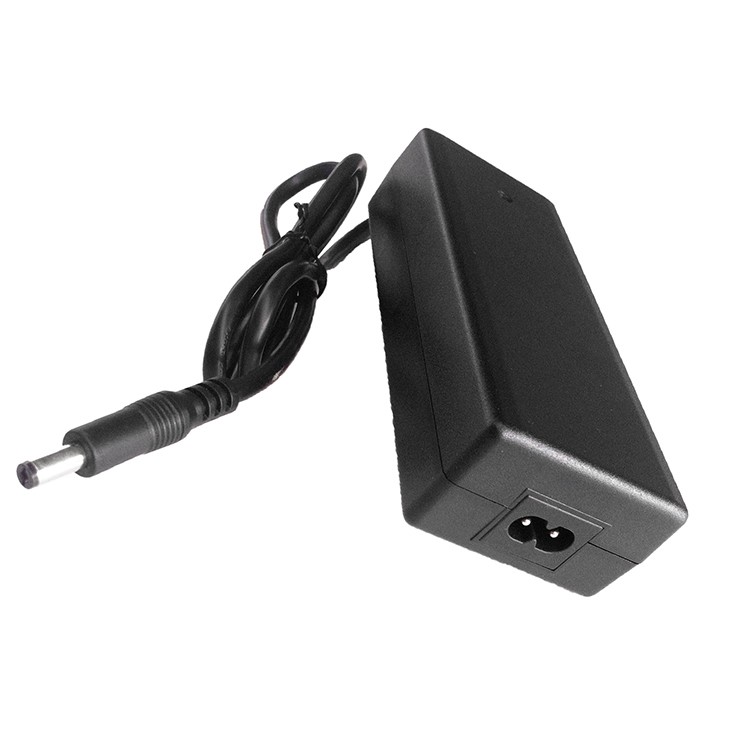

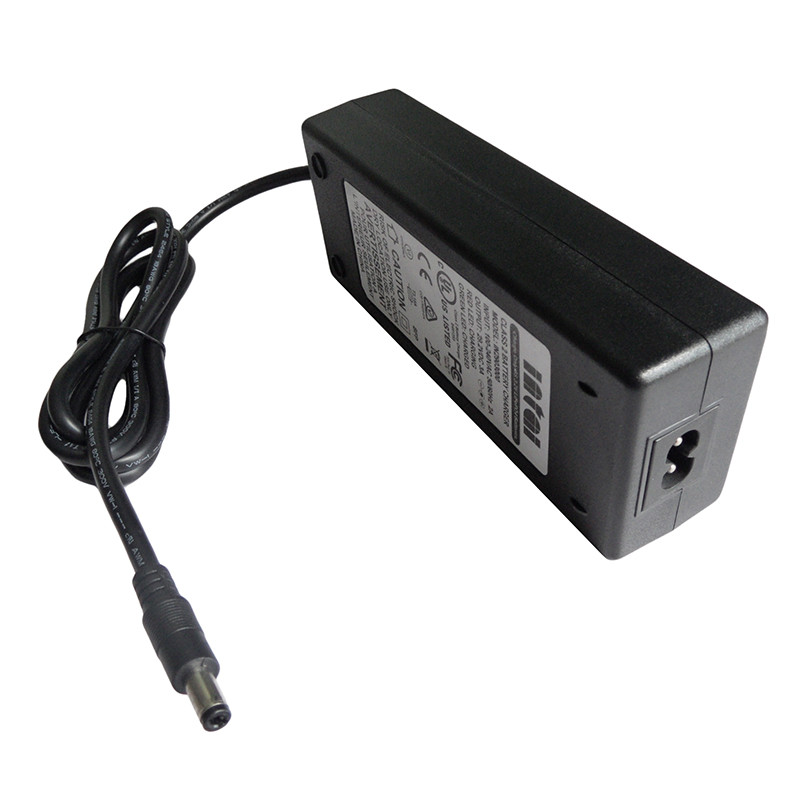

Intelligent charger
Model :IN2104500
Output :21V 4.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai's intelligent chargers use the fast and safe charging technology for 18650 lithium battery and the finest materials that built for optimum performance, with built in safety features such as a reverse polarity alert, easy to read LED indicators, automatic short circuit / reverse polarity protection, backfeed protection
CHARGING INDICATOR A yellow LED light indicates that the battery is being charged, flashing red LED light indicate that the battery is faulty or misconnected. AUTOMATIC SHUT OFF The automatic battery charger is designed to shut off once battery charging is complete to prevent overcharging. SAFETY CERTIFICATIONS: UL1310 Class 2 battery charger and Canadian Standard for Battery Charger 18650, CAN/CSA C22.2 No. 223(File No. E491233), TUV/EN60335-2-29 and RCM AS/NZS60335-2-29 Particular requirements for battery pack charger. RELIABILITY this high quality battery charger is built to ensure a MTBF better than 40000 hours at 35℃.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 12-21V |
Open Circuit Voltage | 21V±5% | |
Charge Current | 4.5A±5% | |
Battery Type | 18V 5S cell 18650 battery | |
Battery capacity recommended | 5AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
Intai offers the best battery charger that designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the Battery Pack Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

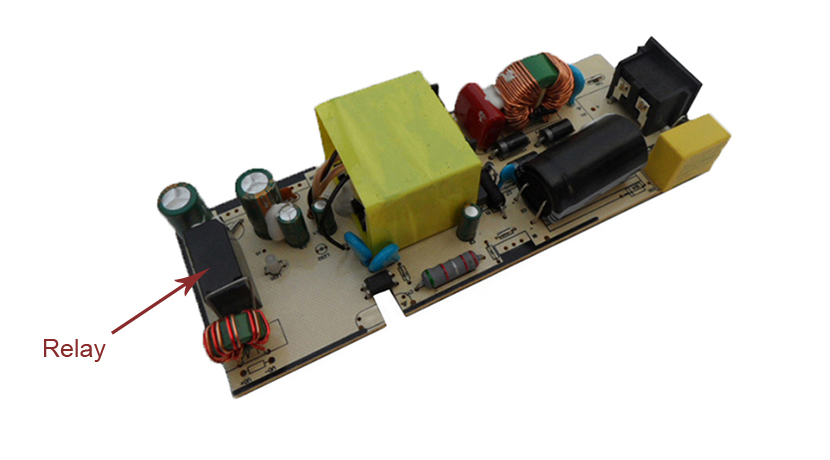

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

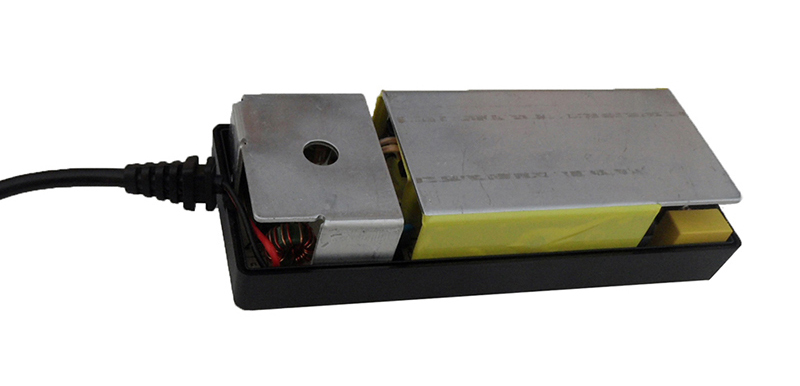

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 18650 high quality battery charger works safely and silently. With the application of soft start technology, the output is spark free.

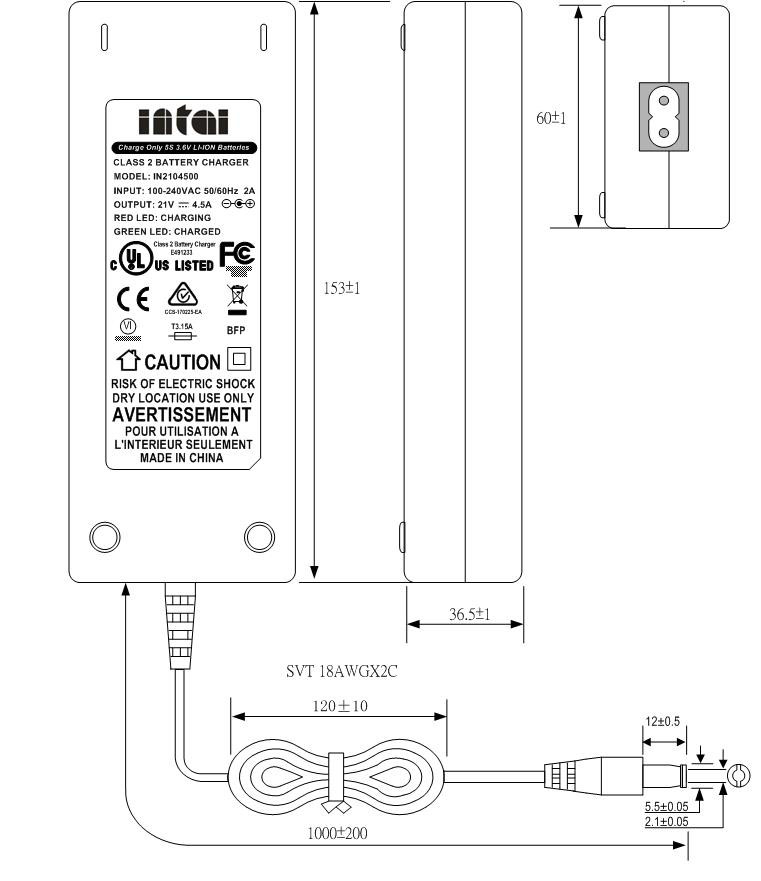

Mechanical Details(mm)
Safety Certificates
