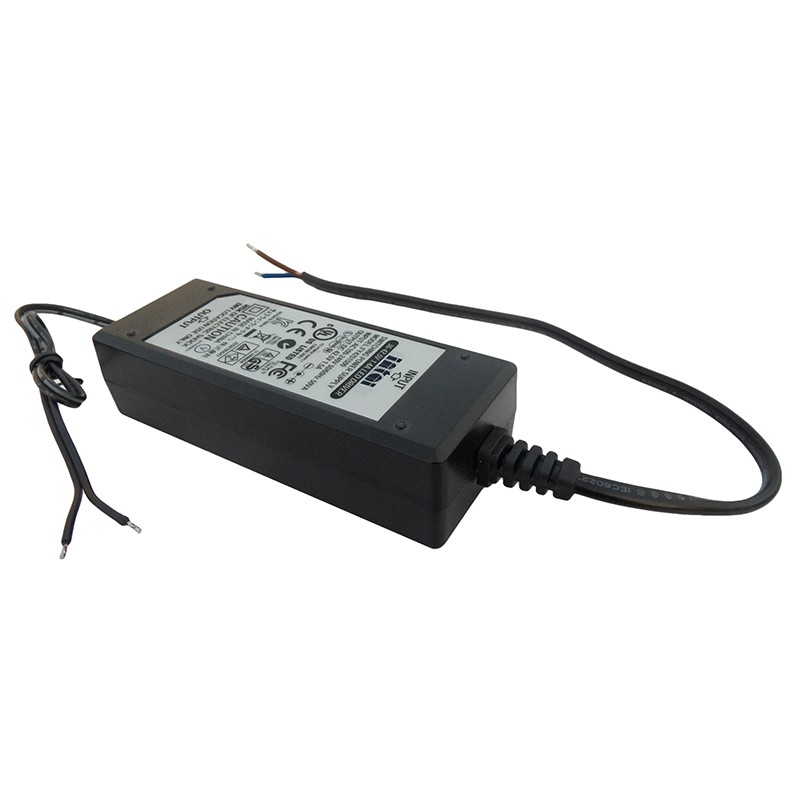

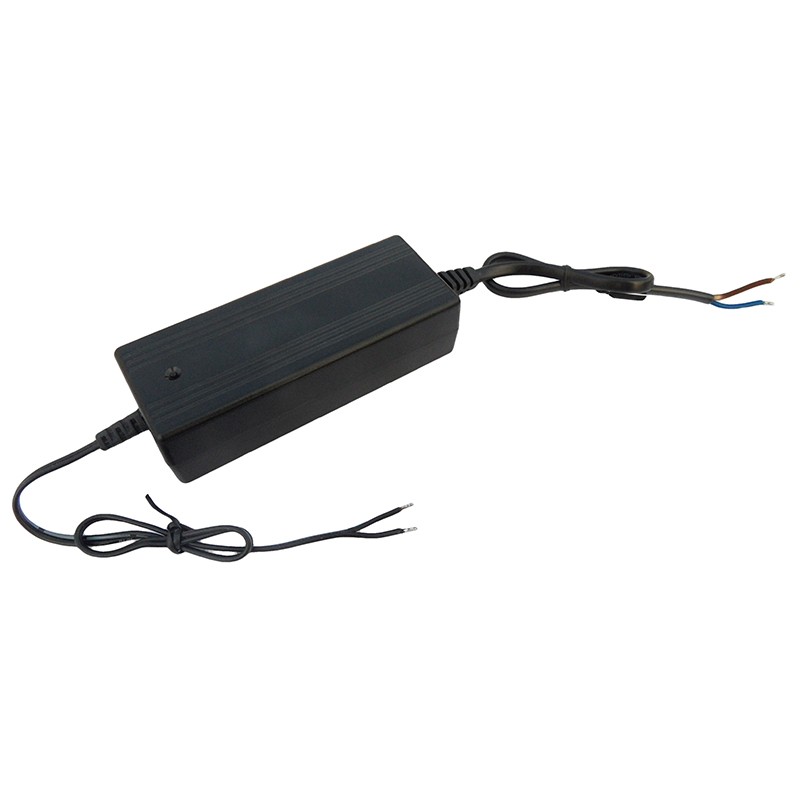

LED driver
Model :IN3601000
Output :36V 1A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The LED driver 36V 1000mA provides accurate constant current to maintain a stable brightness for high brightness multiple LEDs in a single string. The 36V 1A power adapter regulates the output voltage and current in the primary side to minimize the costs and achieve lower standby power and higher efficiency. The 36V LED driver achieves the LED current regulation within ± 5% and offers high efficiency greater than 88% with an accurate LED current matching. The 50W 36V LED driver meets all green energy initiatives and offers a wide range of safety features including over-current protection, over-load protection, short-circuit protection. The LED driver 36V 1A comes with excellent EMI performance and a 3-year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.9 | |
Output | Output Voltage | 36V±5% |
Rated Current | 1A | |
Ripple & Noise | 400mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs |

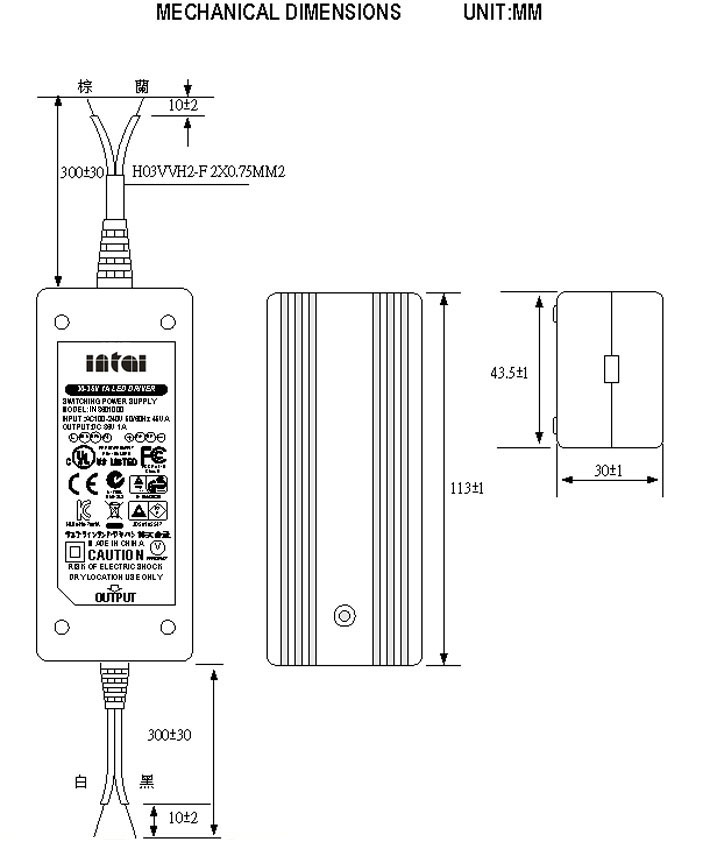

Product Dimension
Safety Certificates
