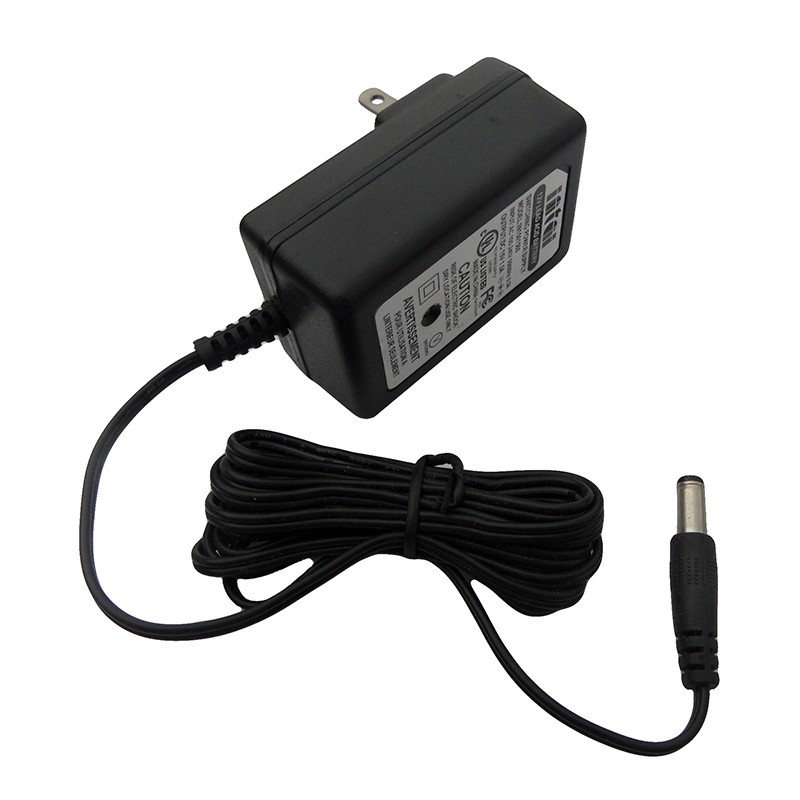

LED driver 12V

Model :IN1201000

Output :12V 1A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The LED driver 12V 1A provides precise constant current control without using an optocoupler at a secondary site to minimize the costs and achieve lower standby power and higher efficiency. The 12V LED driver process information from the primary power switch and an auxiliary flyback winding for a precise regulation with high power factor. The LED driver 12V 12W meets all green energy initiatives and offers a wide range of safety features including over-current protection, over-load protection, short-circuit protection to maintain a stable brightness with high reliability. It was designed to ensure a MTBF better than 40000 hours at 25℃. Intai's wall type 12V driver family comes with safety certifications and 3 year warranty including LED driver 12V 2A / led driver 12V 24W.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	1.5A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.1kgs

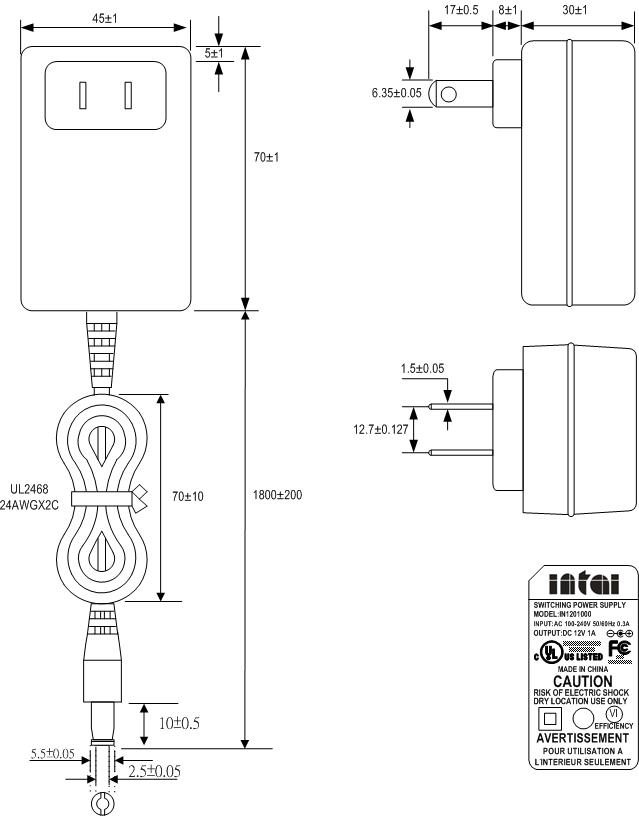

Mechanical Details(mm)

Safety Certificates

led driver 12v 1a
