LED power supply

Model :IN3401000

Output :34V 1A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The 1000mA constant current led driver 34V provides highly–accurate regulation to ensure a high level of light quality and avoid flickering. The LED driver 36W provides good EMC, high conversion efficiency, high PF and low total harmonic distortion (THD) over the universal input voltage. The LED power supply works in constant-voltage regulation that features an efficient, compact and cost effective solution to drive LEDs. The 34V AC DC adapter comes with effective thermal management to enhance reliability. It was designed to ensure a MTBF better than 40000 hours at 25℃. The LED power adapter is capable of delivering full power with ambient temperatures of -20 to +45℃ which is suited for a variety of LED lighting application such as LED tree power adapter.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>85%
	Power Factor (Typ)	>0.9
Output	Output Voltage	34V±5%
	Rated Current	1A
	Ripple & Noise	400mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.2kgs

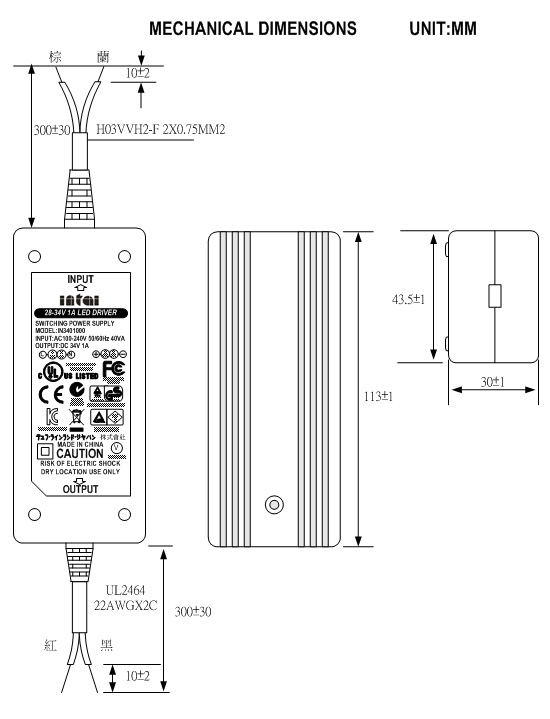

Product Dimension

34v ac dc adapter

Safety Certificates

led driver 36w
