LED switching power supply

Model :IN2403000

Output :24V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The 80 watt 24V LED driver ensures highly–accurate regulation to provide a high level of light quality and avoid flickering. The LED switching power supply works in constant-voltage regulation. The LED power supply 24V 3A provides good EMC, high conversion efficiency, high PF and low total harmonic distortion (THD) over the universal input voltage. The 80 watt LED driver features efficient thermal management and faulty protection to enhance reliability. The 24V LED power supply was designed to ensure a MTBF better than 40000 hours at full load. The LED driver 24V 150 watt is capable of delivering full power with ambient temperatures of -20 to +45℃ and backed by a 3-year warranty.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.9
Output	Output Voltage	24V±5%
	Rated Current	3A
	Ripple & Noise	250mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

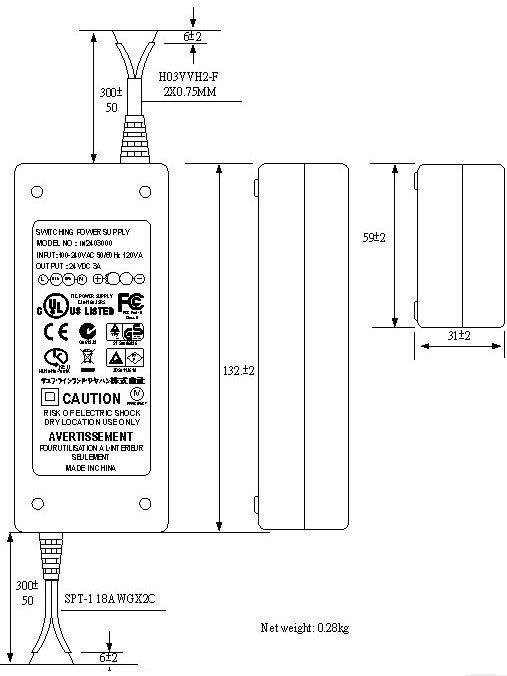

Product Dimension

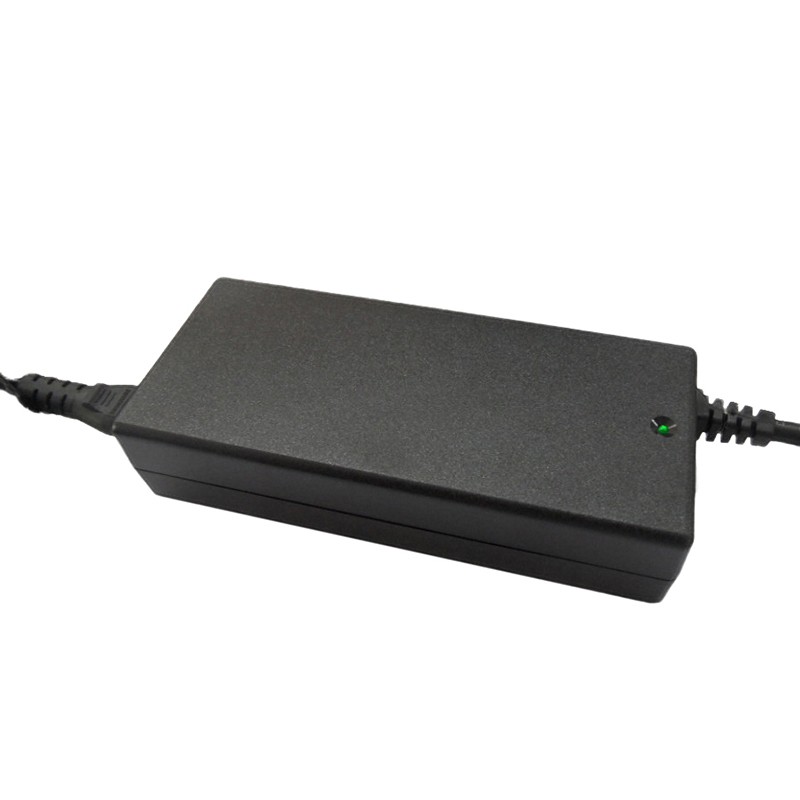

led power supply 24v

Safety Certificates

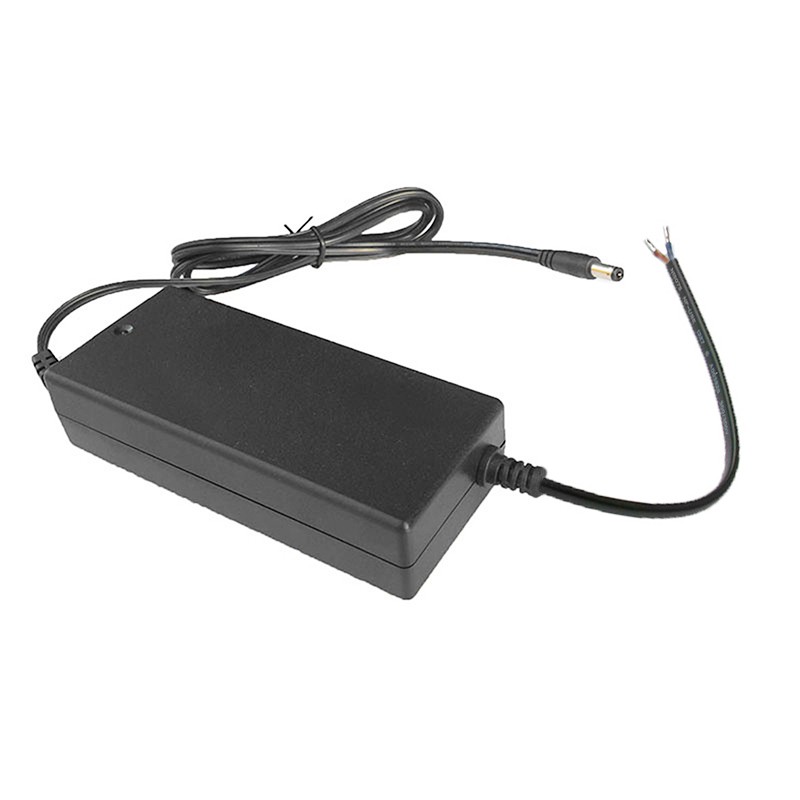

24v led power supply

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

24v led driver

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
