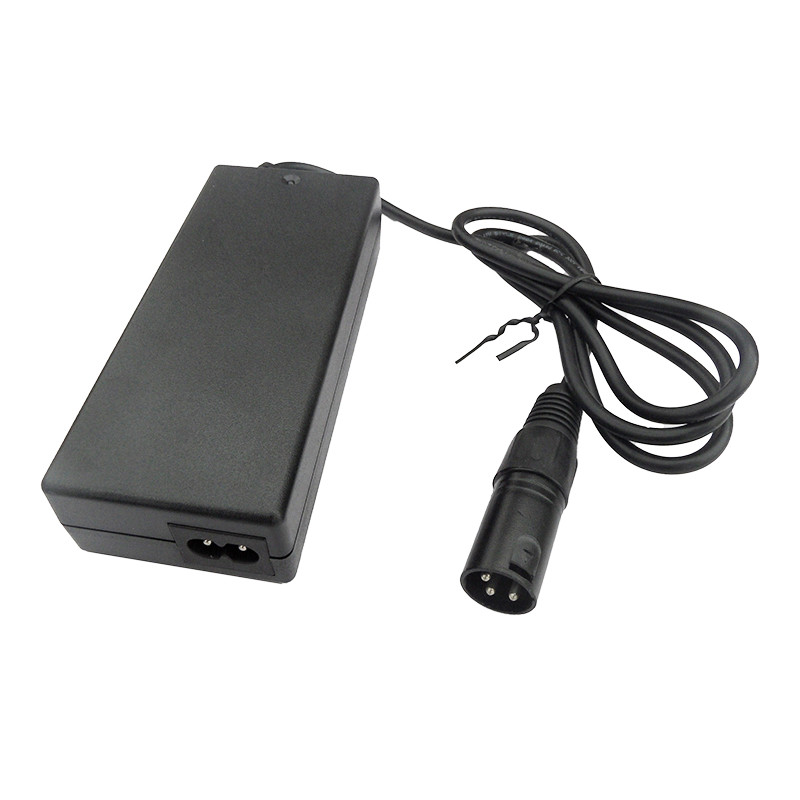

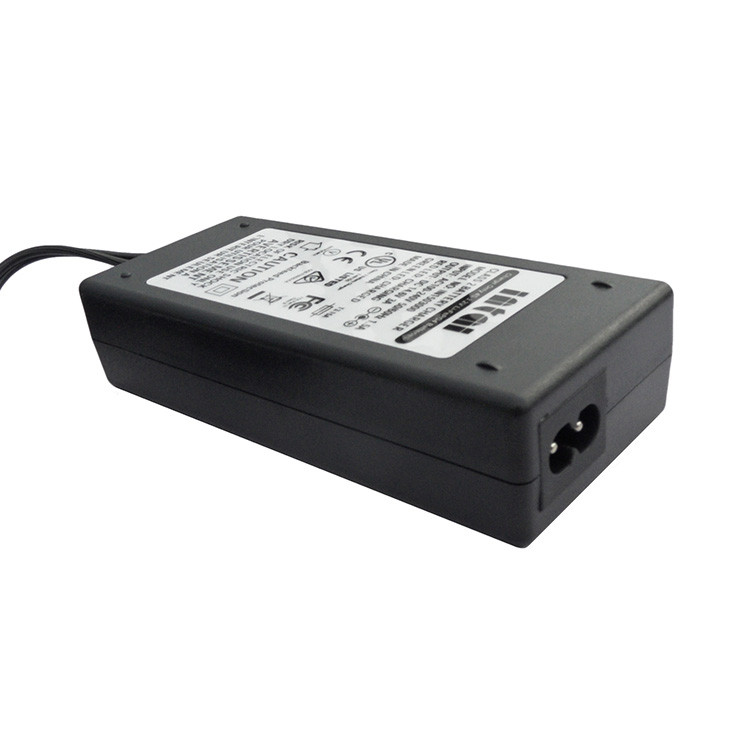

Li ion battery charger
Model :IN2102500
Output :21V 2.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai offers a array of best Li ion battery charger including Part No. IN2102500 automatic 21V 2.5A battery charger for lithium batteries which employs superior 5 stage charge algorithm. The 21V charger provides error proof operation fully. The 24 volt smart battery charger features • Designed to prevent overcharging • Backfeed protection • Reverse polarity protection • Short circuit protection • Spark-free operation• With XLR connector port •UL/cUL, CE, RCM, PSE approval for battery charger li ion • Customizable for additional features • High efficiency and compact design
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 12-21V |
Open Circuit Voltage | 21V±5% | |
Charge Current | 2.5A±5% | |
Chemistry | 5S cell 21V Li ion battery, Lithium battery pack | |
Battery capacity recommended | 8AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The battery charger li-ion is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of The 21V Li ion Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When battery charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The 24 volt smart battery charger works silently and safely. With the application of soft start technology, the output is spark free.

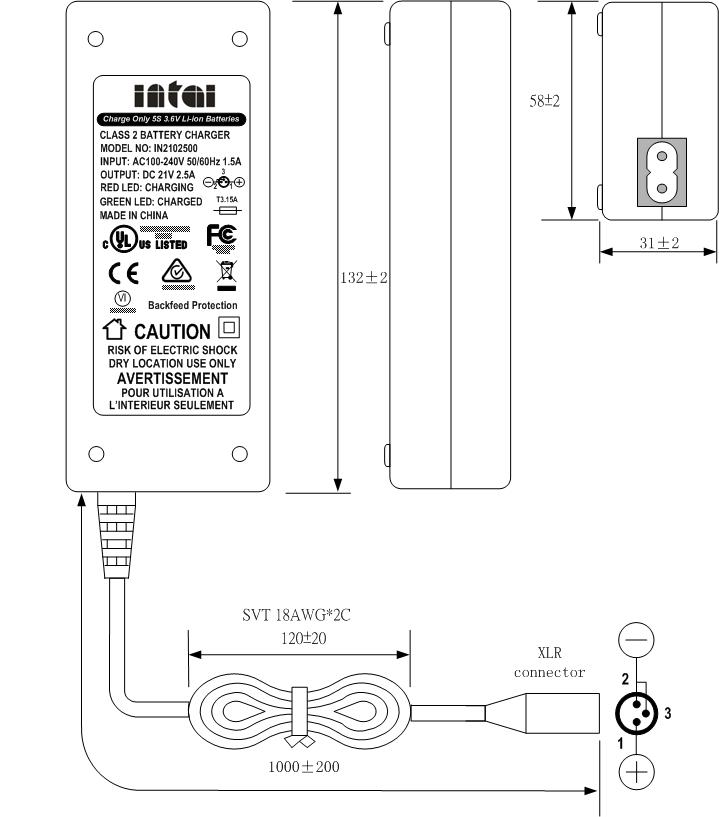

Mechanical Specification(mm)
