Lithium battery recharger
Model :IN2504000
Output :25.2V 4A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Simplicity in design make this 6 cell lithium ion battery charger 25.2V 4A reliable and safe for operation,. It charges a 21.6V 6 cell lithium ion battery in three phases: pre-charge, constant current and constant voltage. While ensure accurate charging, the Lithium battery recharger is spark proof, compact, features automatic cut off when the battery charging cycle is complete, and with auto-recharge. Effective thermal management enhances reliability greatly to enable the 21.6V battery charger durable to use.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 14-25.2V |
Open Circuit Voltage | 25.2V±5% | |
Charge Current | 4A±5% | |
Battery Type | 21.9V 6S cell Lithium ion battery | |
Battery capacity recommended | 12AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The battery charger 25.2V 4A is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 21.9V Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

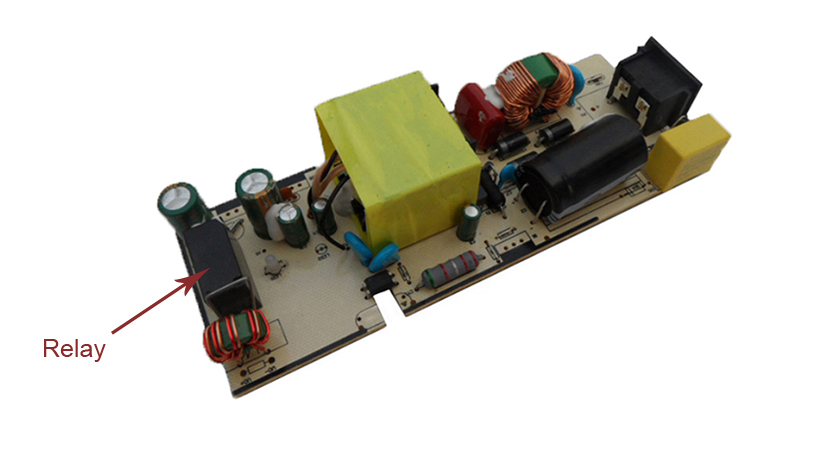

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

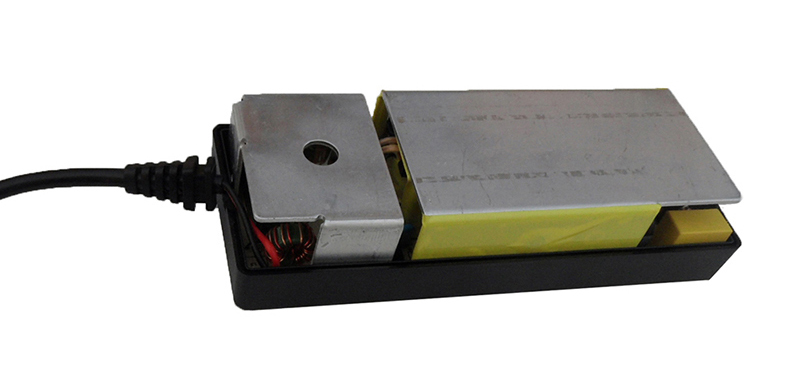

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 21.9V battery charger works silently and safely. With the application of soft start technology, the output is spark free.
Mechanical Details(mm)
Safety Certificates
