Lithium charger 29.4V 2A
Model :IN2902500
Output :29.4V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year

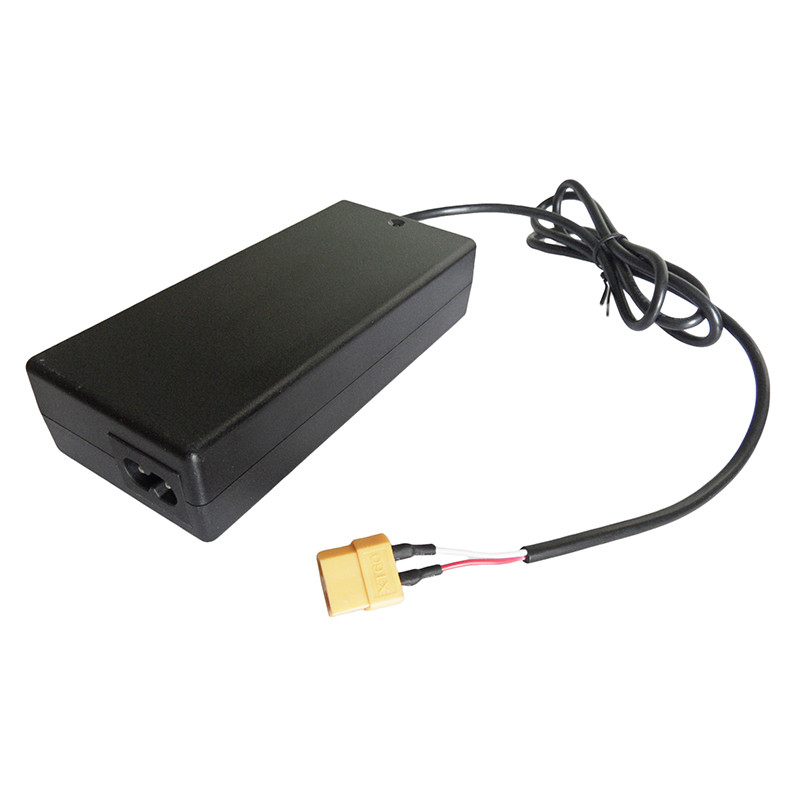

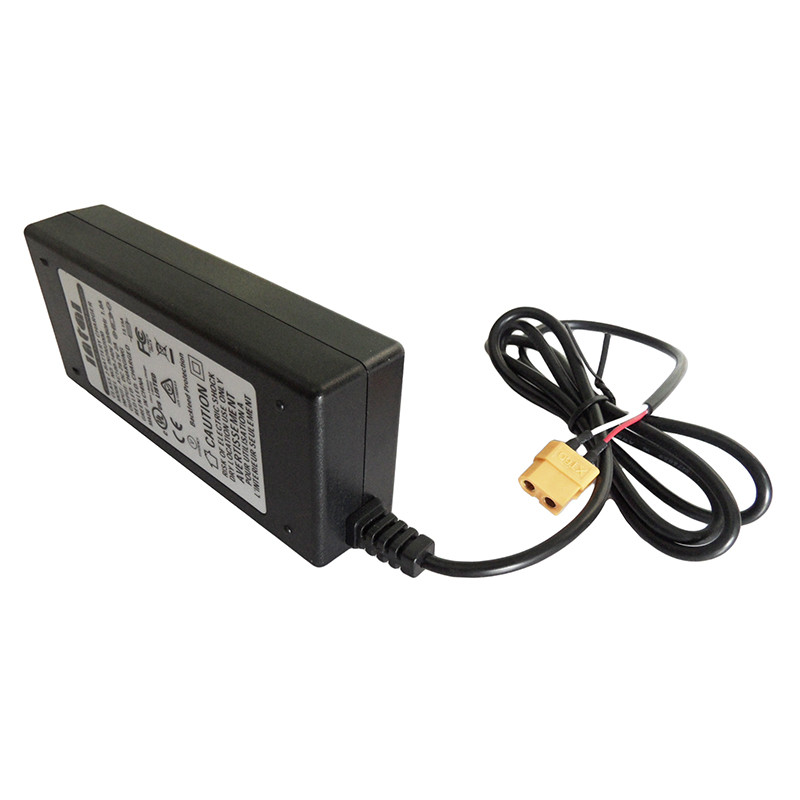

Intai introduces the ITE certified lithium charger 29.4V 2A which is suited for 24 volt packs. The li-ion battery charger 29.4V 2A provides precision charging control and status monitoring while enabling long battery life and run times. The battery charger 24V 2A features auto cut off to prevent backflow of current into the battery charger from the battery. The battery charger 24 volt comes with a XT60 connector and a 3 year warranty.
Relying on our experienced R & D team, we have been developing and manufacturing vary kinds of quality battery chargers with UL/cUL1310 Class 2 battery charger, CE/LVD EN60335-2-29 and RCM AS/NZS60335-2-29 battery charger approvals. Application covers with lithium batteries, lead-acid batteries, lithium iron phosphate batteries, nickel hydrogen batteries and so on.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.7 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 2A±5% | |
Battery Type | 7S cell Lithium li ion battery | |
Battery capacity recommended | 6AH~15AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The battery charger 24 volt is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 29V li ion battery charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The battery charger 24V 2A works safely and silently. With the application of soft start technology, the output is spark free.
Mechanical Details(mm）
