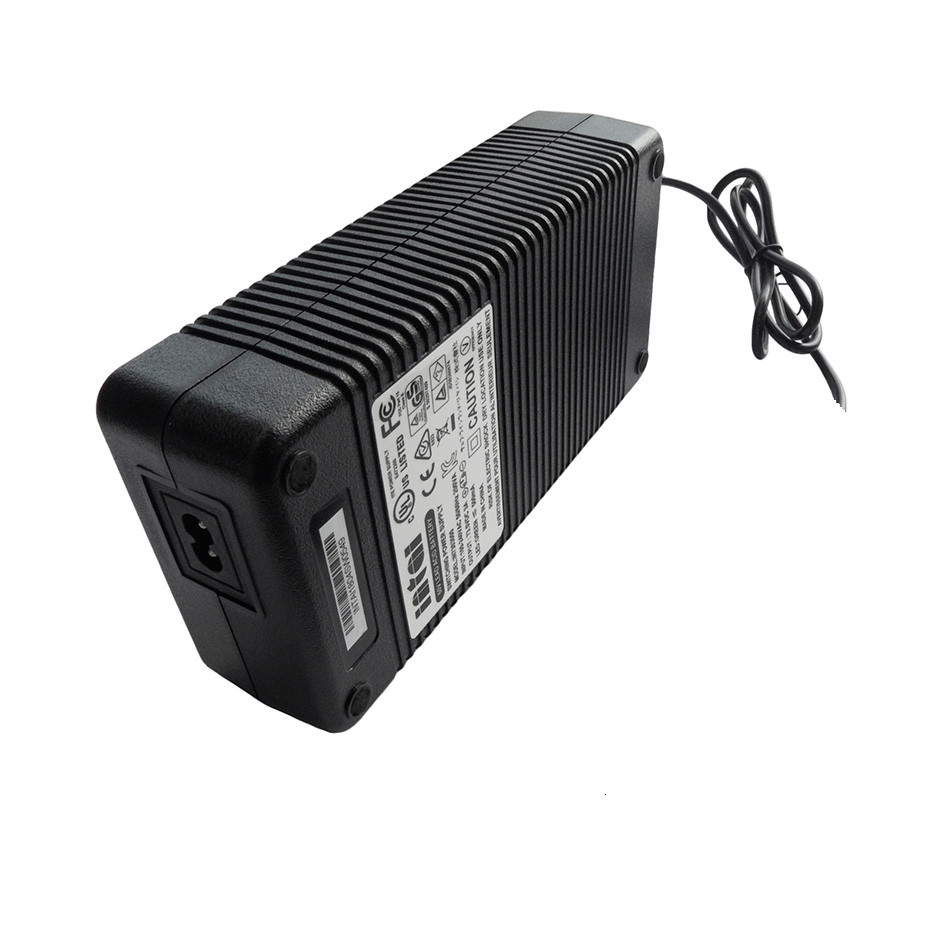

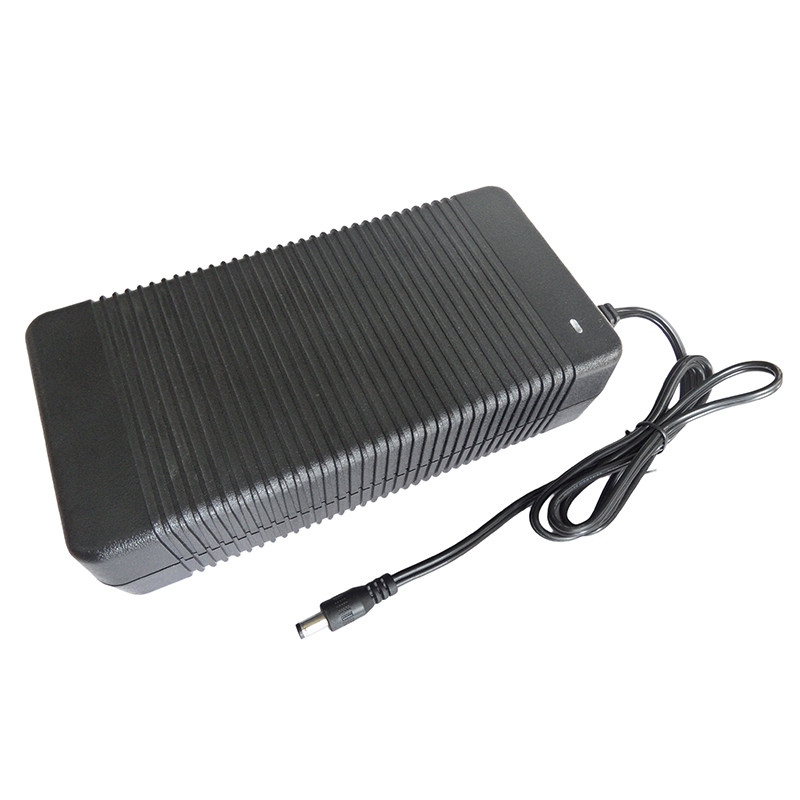

Lithium ion motorcycle battery charger
Model :IN4255000
Output :42.5V 5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This 36V 5A lithium ion motorcycle battery charger for kids is suitable for 36V battery size of 30AH or larger. The charger will deliver the durable, reliable performance you need. What's more, this lithium ion battery charger for motorcycle is built with plastic enclosure as a Class II electrical appliance to effectively help protect users from electrical hazards. The motorcycle battery charger is backed by a 3-year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 24-42.5V |
Open Circuit Voltage | 42.5V±5% | |
Charge Current | 5A±5% | |
Battery Type | 10 cell 36V motorcycle lithium battery | |
Battery capacity recommended | 20AH~40AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.8kgs |
Intai's 36V motorcycle lithium battery chargers are designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator Of The Motorcycle Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
U-shaped heat sinks which fit perfectly with the housing and transformer, dissipate heat in an effective way to ensure the charger with long life span.
The 36V 5A golf cart charger works silently and safely. With the application of soft start technology, the output is spark free.

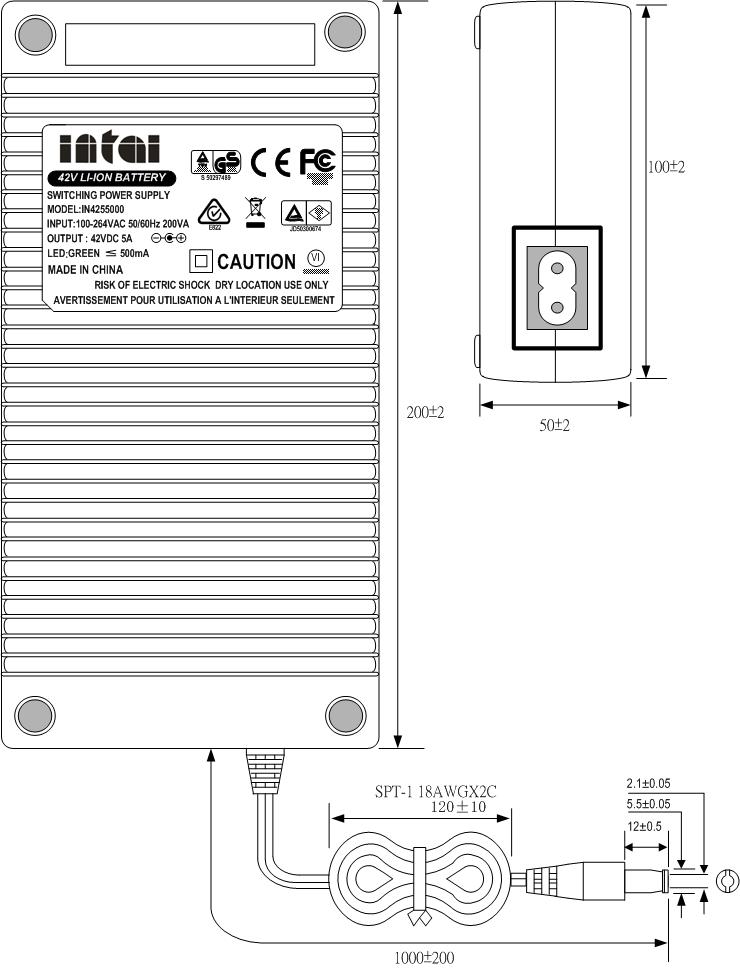

Mechanical Details(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
