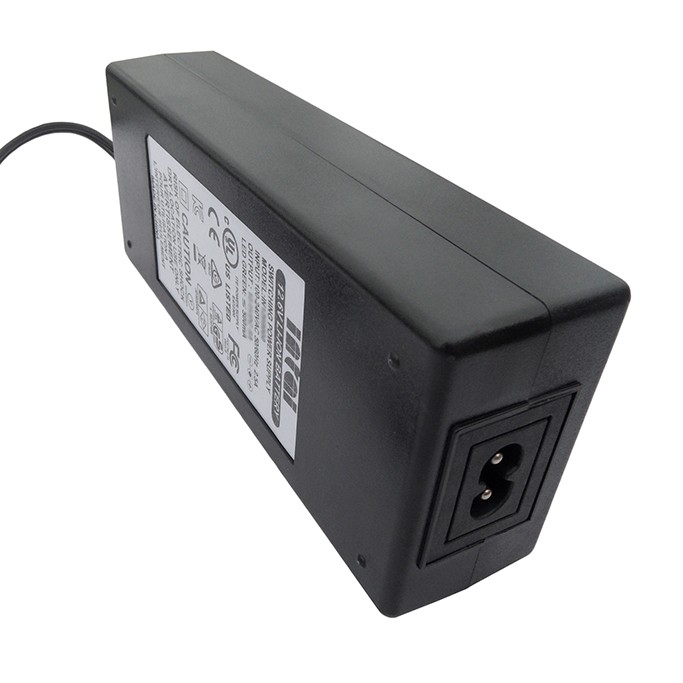

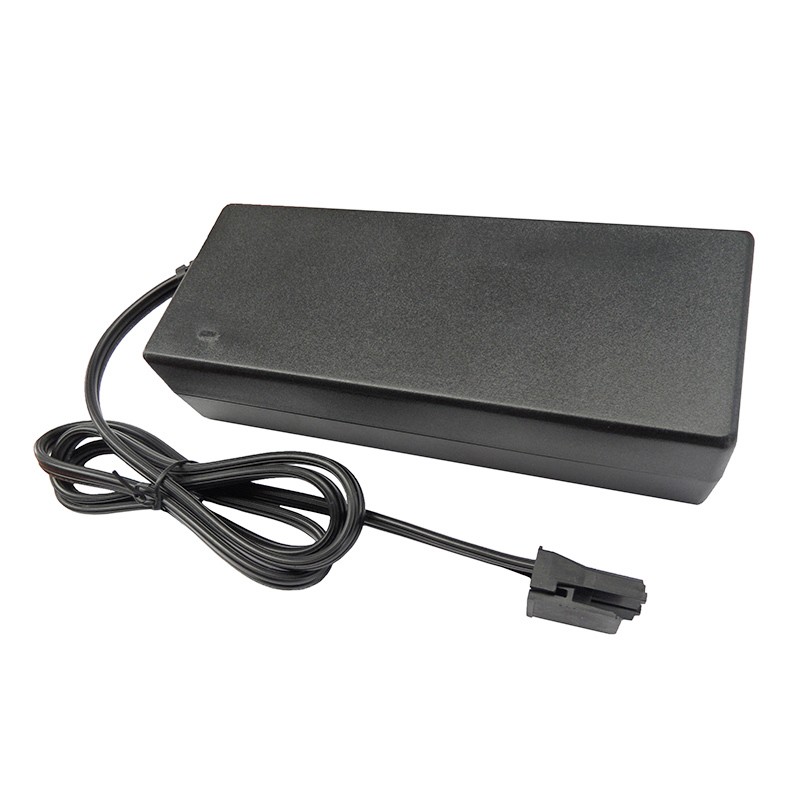

Lithium iron phosphate battery charger
Model :IN4403000
Output :43.2V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Dongguan Intai Power Supply Co., Ltd carries a wide selection of quality lithium iron phosphate battery chargers feature fully automatic- starts, stops and charging automatically, LFP charge algorithm controls both voltage and current for precise charging. The IN4403000 is a highly optimized lithium phosphate battery charger for 12 cell pack. The 43.2V 3A lithium iron battery charger has UL/cUL/GS/CE/PSE/RCM rating and comes with high reliability and long lifespan.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 25-43.2V |
Open Circuit Voltage | 43.2V±5% | |
Charge Current | 3A±5% | |
Battery Type | 12S cell lithium iron phosphate battery pack | |
| Battery capacity recommended | 20AH~60AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Power Units other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The lithium iron battery charger 43.2V is designed to charge and maximize the life of 12 cell batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of The Lithium ion Phosphate Charger
Red |
|
Green |
|
Red flash |
|

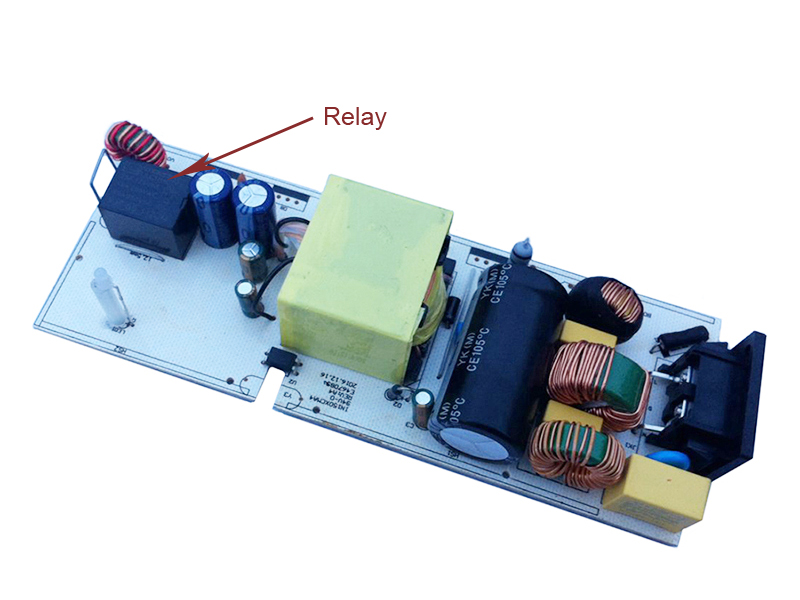

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

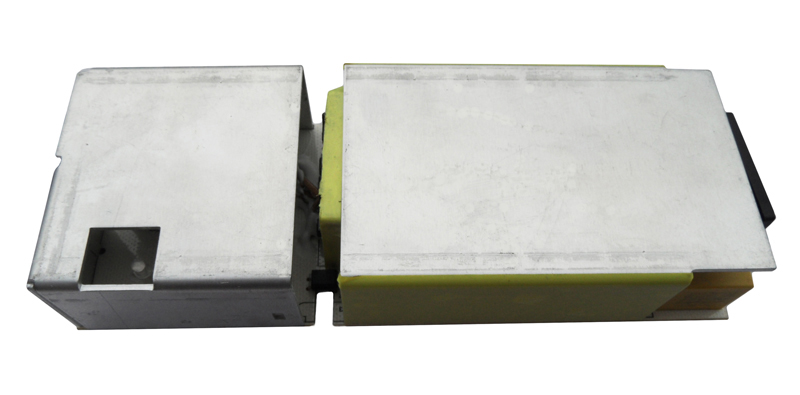

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The Lithium iron phosphate battery charger works silently and safely. With the application of soft start technology, the output is spark free.

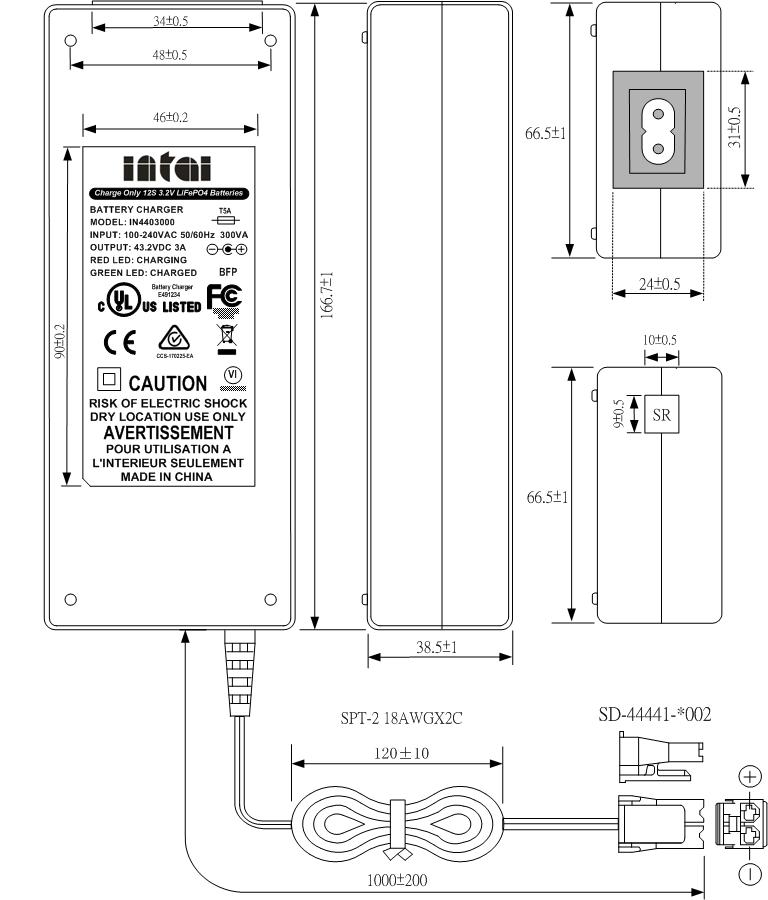

Mechanical Details(mm)
