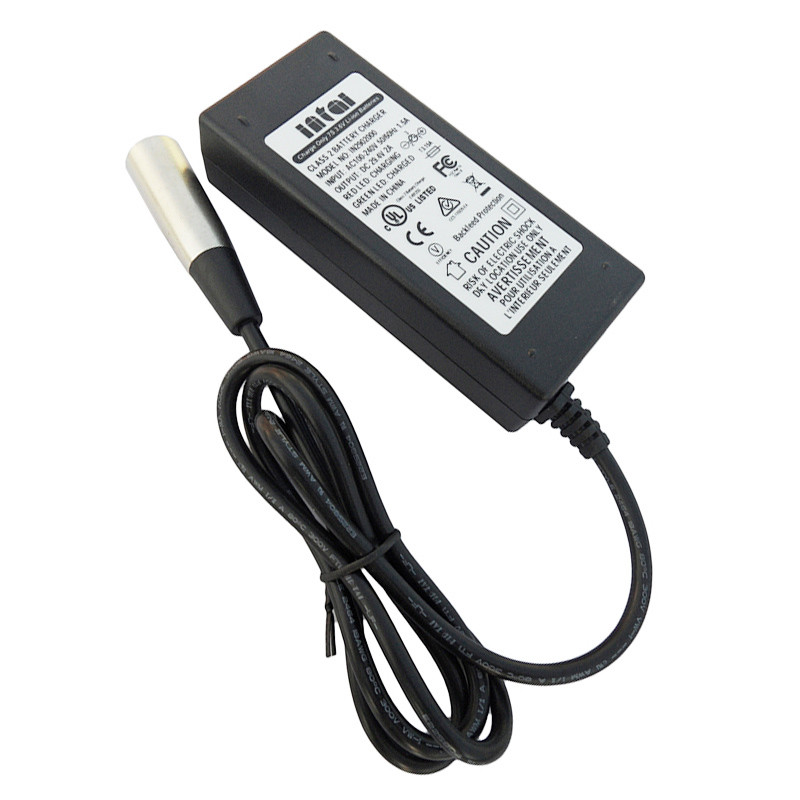

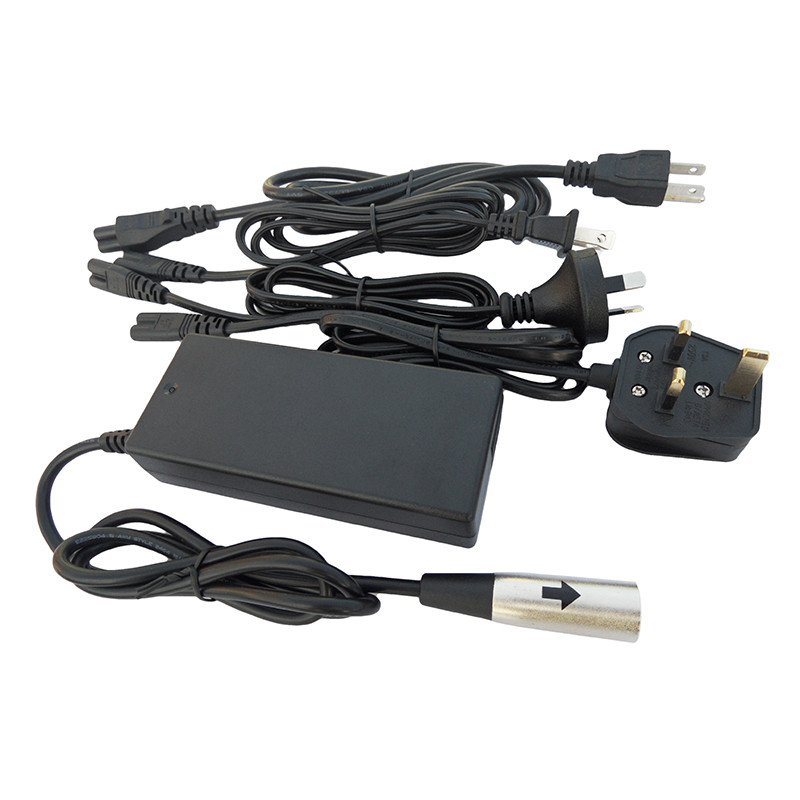

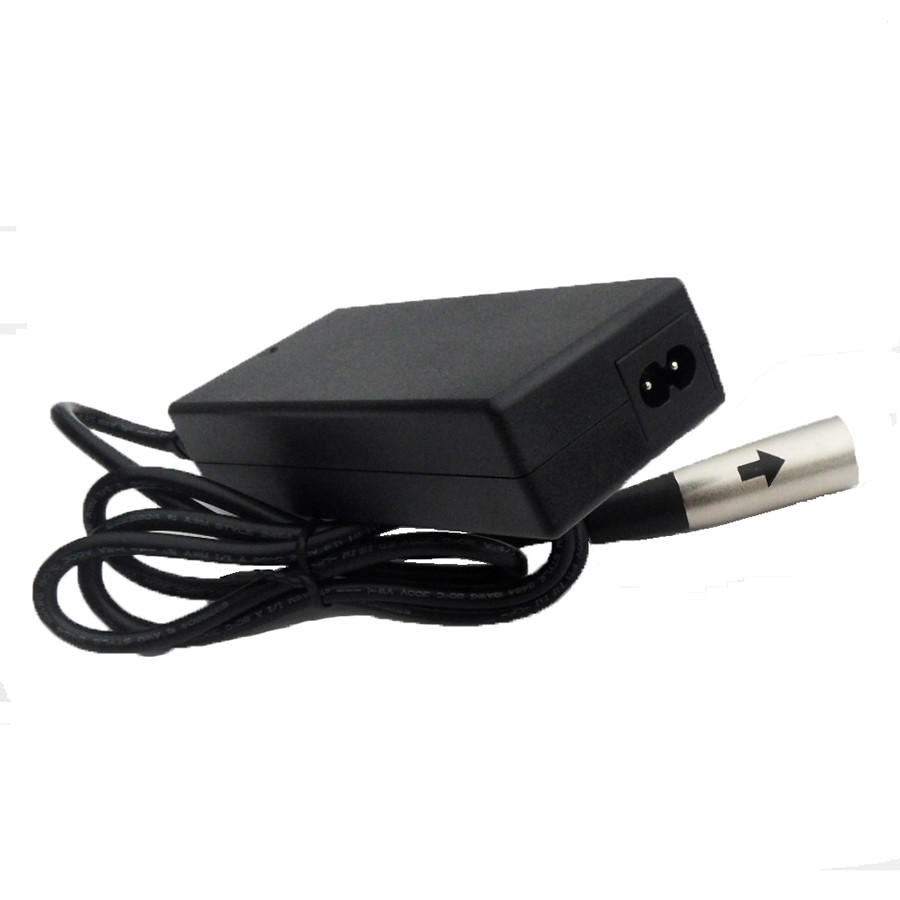

Mobility scooter chargers
Model :IN2902000
Output :29.4V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Dongguan Intai Power Supply Co, Ltd manufactures a wide selection of quality UL chargers which are safe and reliable to operate. All chargers incorporate up to date charging algorithms and solutions to ensure the battery cells of all size to be powered up, to enhance the performance of batteries and assure long battery life with rapid charging capability. An array of battery charger is available to be used for different applications include mobility scooter chargers, power wheelchair chargers for Lithium ion batteries or sealed Lead-acid batteries. The 24V 2A battery charger for mobility scooter comes with standard XLR connector and green-mode power-saving operation.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 2A±5% | |
Battery Type | 7S cell 24V Lithium-ion battery | |
Battery capacity recommended | 5AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.3kgs |
The 24 volt 2A battery charger for electric wheelchair is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of The 24V Wheelchair Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

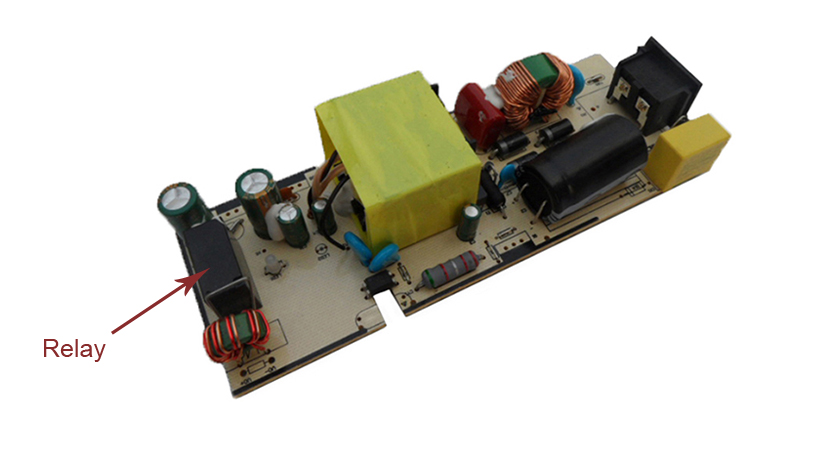

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The power wheelchair charger works silently and safely. With the application of soft start technology, the output is spark free.

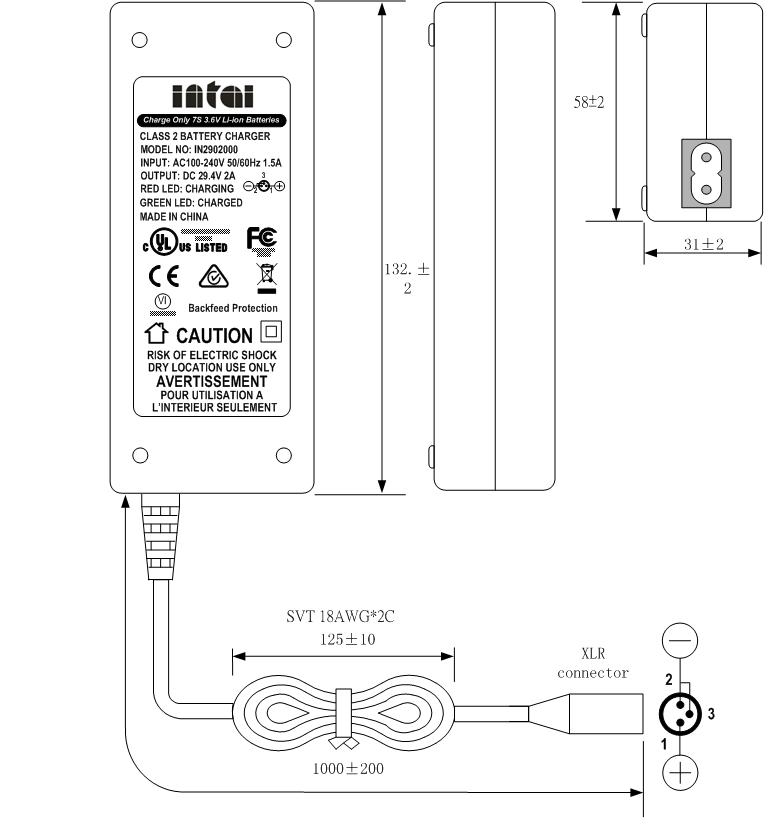

Product Dimension(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
