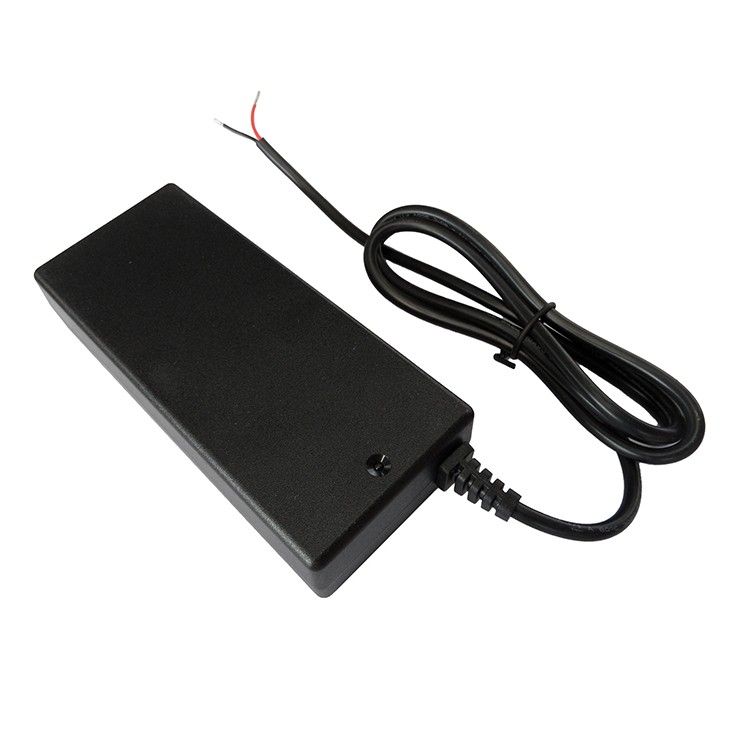

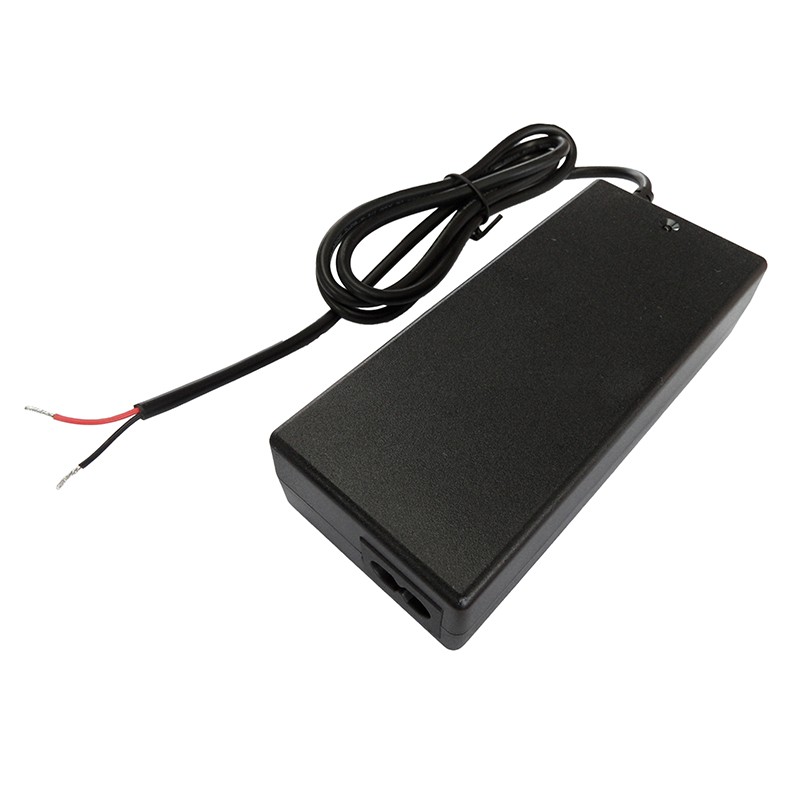

Nimh battery charger
Model :IN6001000
Output :60 volt 1 amp
Brand :Intai
Product origin :China
Supply capacity :3000pcs/day
Warranty :3 year
This powerful NiMH battery quick charger uses the –dV signal to detect the end of charge. Trickle charge turned on at termination. The good NiMH battery charger will charge 48V 4000mAH battery packs optimally. The smart charger nimh is equipped with LED indicator for charge status and preset time-out, all parameters are fully configurable to be optimized for applications.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >70% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 15A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 32-60 volt |
Open Circuit Voltage | 60V±5% | |
Charge Current | 1A±5% | |
Battery Type | 40S cell Nimh battery 60V | |
Battery capacity recommended | 800mAH~1600mAH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL PSE | Certificate Number: E472300 |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.3kgs |

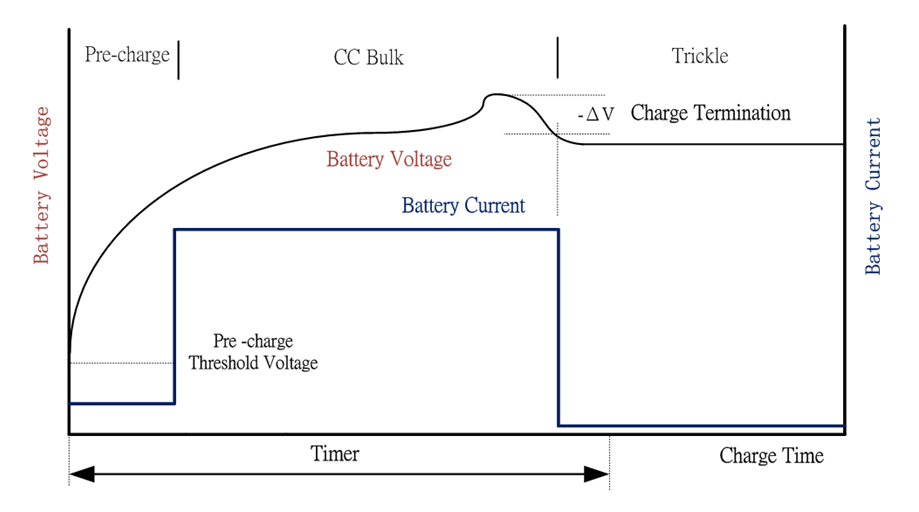

The smart 60 volt battery charger is designed to maximize the life of 48 volt NiMH batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the ni-mh battery charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
| Red flash | Reverse connection with the battery Faulty battery Short circuit |
Green flash | Trickle |
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
