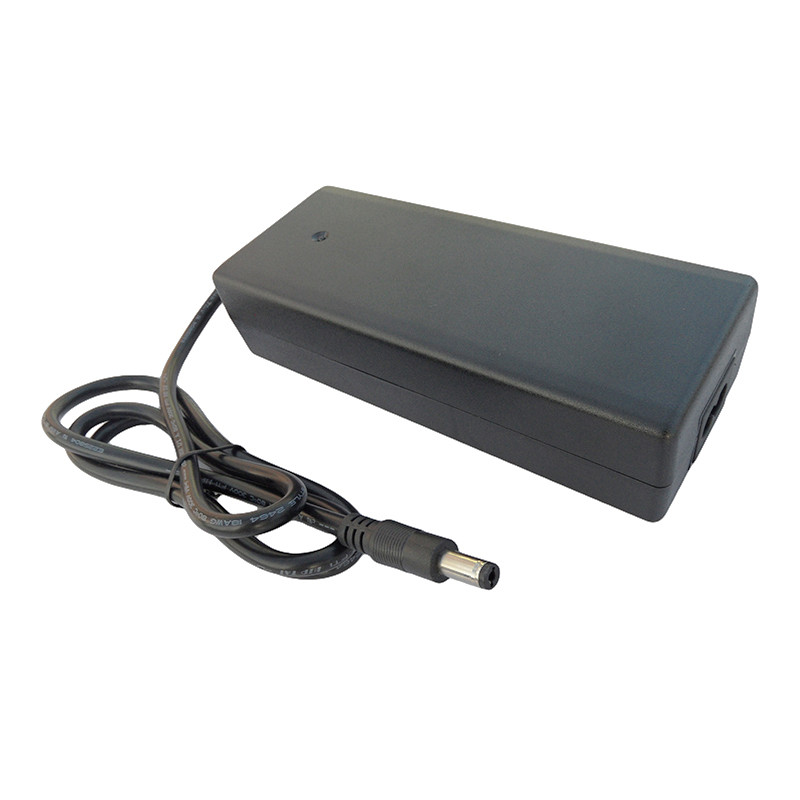

Repid battery charger
Model :IN2902500
Output :29.4V 2.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
INTAI manufactures a full array of electronic battery chargers which feature high-efficiency, low standby power, accurate output regulation, intelligent and safe charging. The IN2902500 lead-acid battery charger is a microprocessor controlled automatic repid battery charger that charges efficiently and extending battery life. The 24V AGM battery charger has UL/cUL/CE/RCM rating and carries "Backfeed Protection”/ "BFP" markings. It incorporates a built-in relay to prevent reverse flow of electricity from charged batteries when the fault occurs or during storage.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 2.5A±5% | |
Battery Type | 2S cell 24 volt Lead-acid agm battery | |
Battery capacity recommended | 8AH~15AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 24v agm battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 24 volt industrial battery charger
Red |
|
Green |
|
Red flash |
|

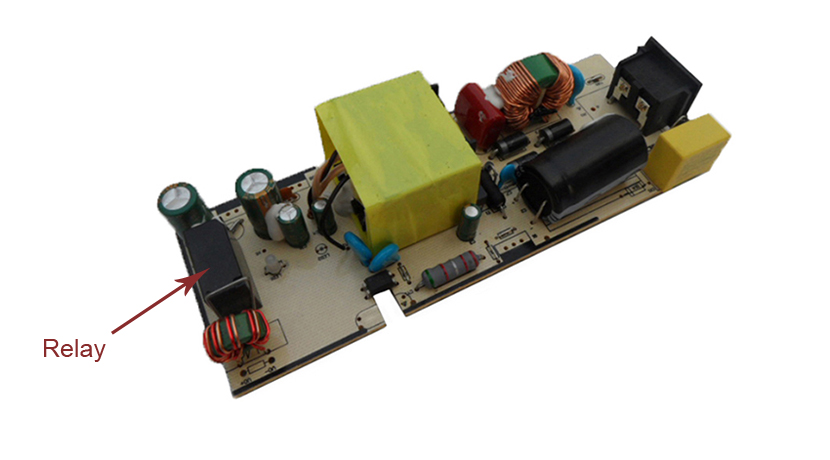

When battery charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

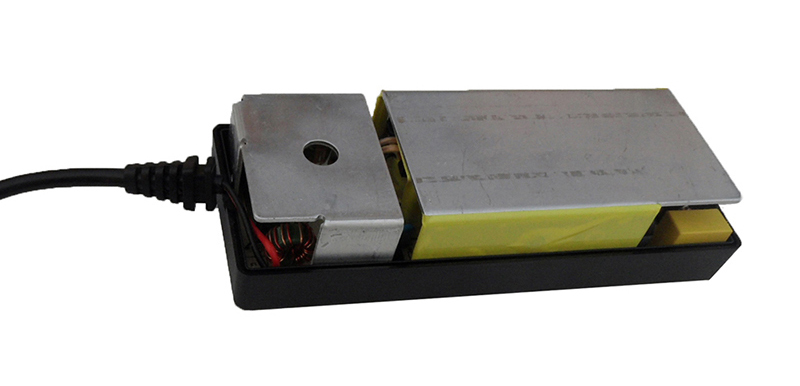

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
This 24 volt industrial battery charger works silently and safely. With the application of soft start technology, the output is spark free.

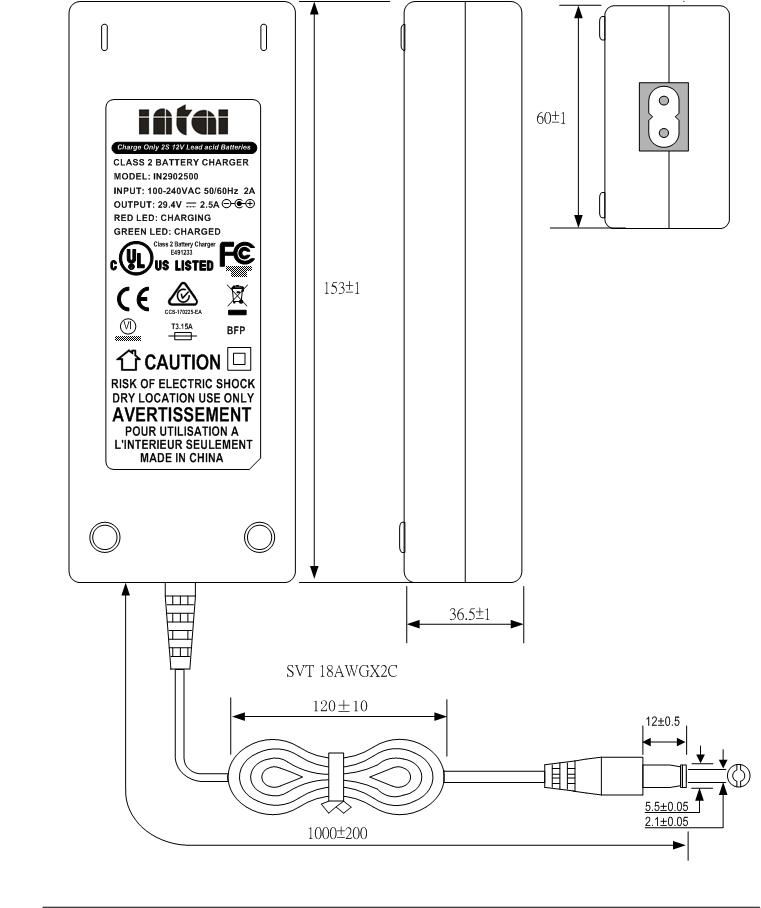

Product dimension(mm)
Safety certificates
